TiN Coated High-Speed Steel Tap
3-Piece Set, M8 x 1.25 mm Thread Size
For Threading | Fastener Threads |
Thread Direction | Right Hand |
Material | High-Speed Steel |
Finish | Titanium Nitride (TiN) Coated |
Chamfer Type | Taper, Plug, Bottoming |
Number of Pieces | 3 |
Thread Type | Metric |
Container Type | Plastic Case |
Number of Flutes | 4 |
Shank Type | Square |
Thread | |
Size | M8 × 1.25 mm |
Length | 1 1/8" |
Drill Bit | |
Size | 6.7 mm |
Decimal Equivalent | 0.2637" |
Flute Type | Straight |
For Use On | Aluminum, Brass, Bronze, Copper, Iron, Nickel, Plastic, Stainless Steel, Steel |
Maximum Tapping Depth | 1 1/8" |
Number of Tapping Ends | 1 |
Number of Taps | 3 |
Overall Length | 2 23/32" |
Pitch Diameter Limit | D5 |
Pitch Diameter Tolerance | 0.002" to 0.0025" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820740.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These sets include a variety of taps for threading holes so screws, bolts, and rods fit snugly.
High-Speed Steel—Single Thread Size Sets—The most versatile taps resist heat and wear to stay sharp. They’re good for most metals and plastic. These sets include one of each chamfer type: Taper for starting holes and threading through holes; plug for through holes and blind holes; and bottoming for cutting the closest to the bottom of any hole.
Titanium Nitride (TiN) Coated—Run at higher speeds and last twice as long as uncoated taps.

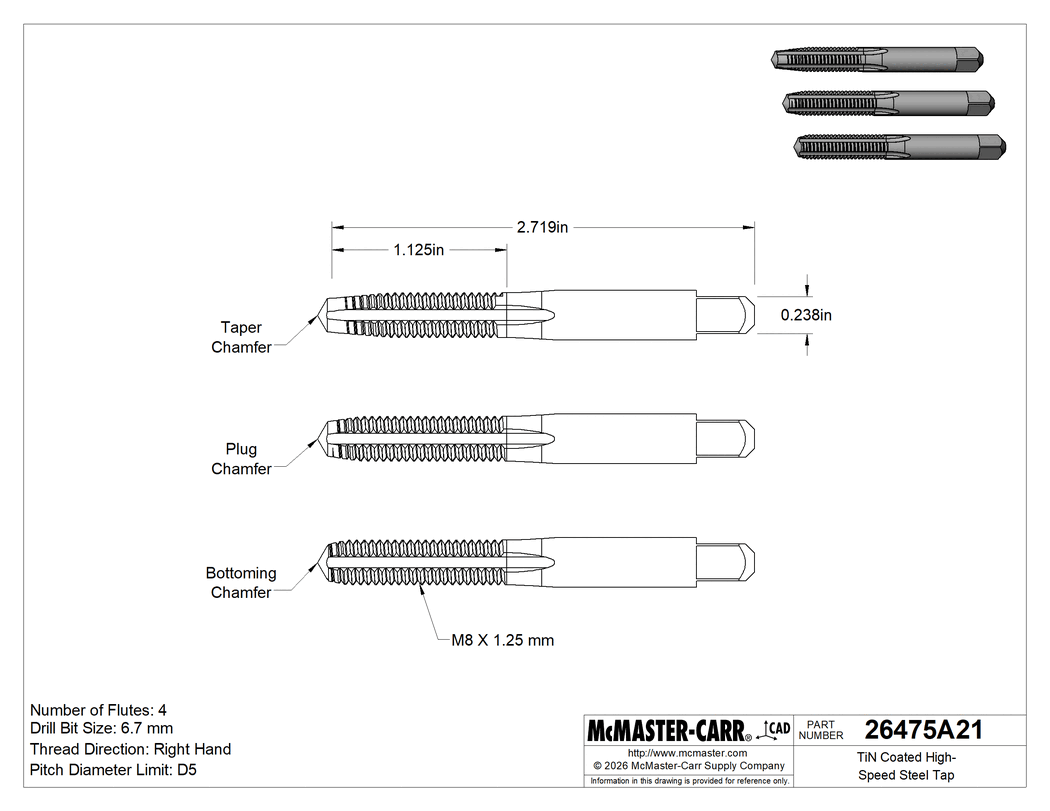

The information in this 3-D model is provided for reference only.
