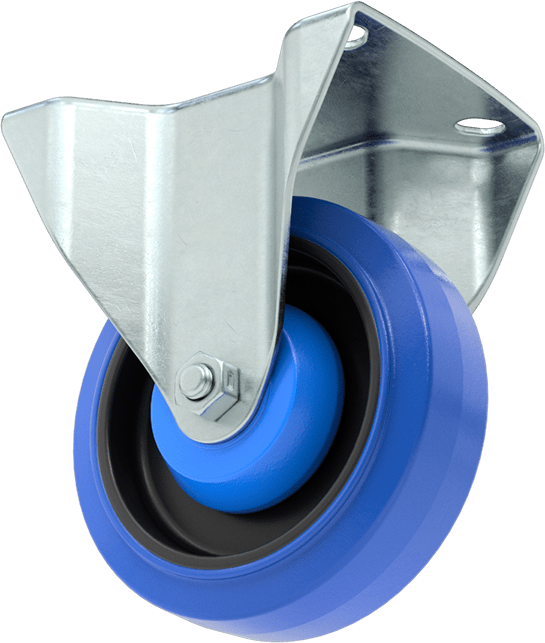

Easy-Roll Caster
Blue Rubber Wheel, Rigid, 4" Diameter Wheel

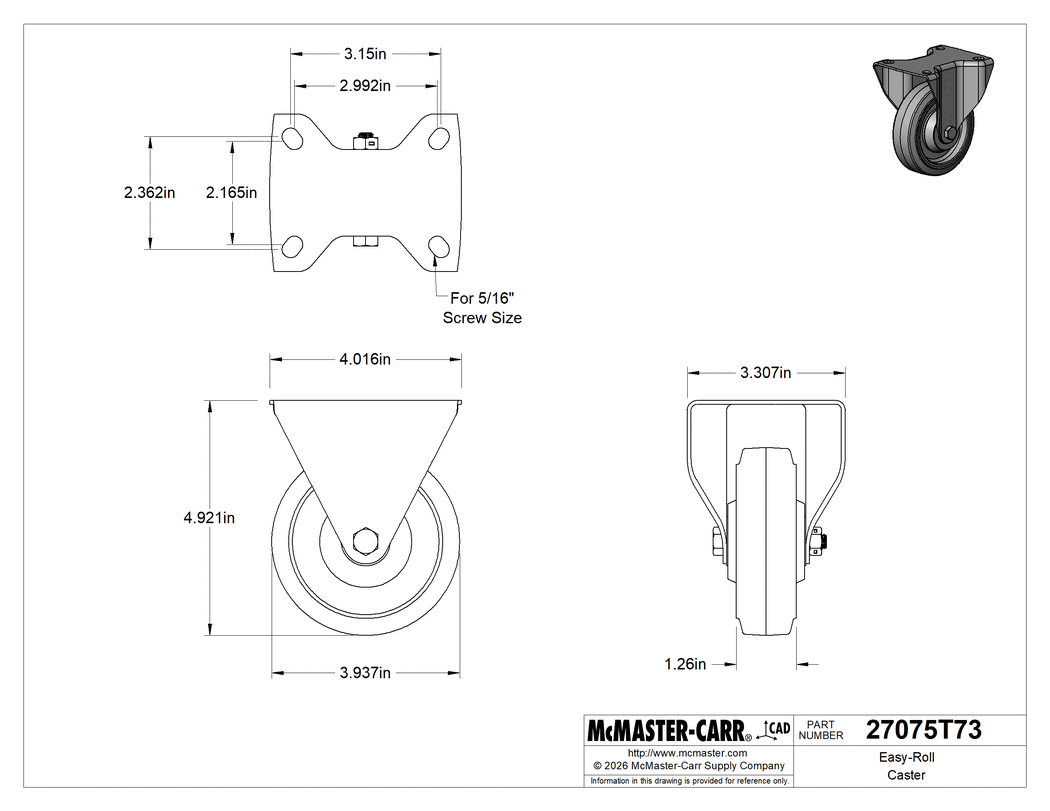

2-D PDF
000000 each
27075T73
In stock
27075T73
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.

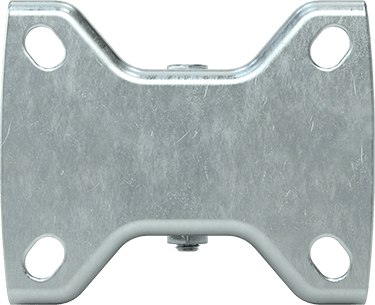

Mounting Plate | |
Length | 3 15/16" |
Width | 3 3/8" |
Style | 1 |
Wheel | |
Diameter | 4" |
Width | 1 1/4" |
Number of | 1 |
Nonmarking Wheels | Yes |
Wheel Color | Blue |
Wheel Type | Tread on Core |
Wheel/Tread Material | Rubber |
Hardness Rating | Soft |
Hardness | Durometer 65A |
Caster Type | Rigid |
Mount Height | 4 15/16" |
Weight Capacity per Caster | 330 lb. |
Tread Style | Flat |
Wheel Bearing | |
Type | Ball |
Material | Steel |
Seal Type | Shielded |
For Screw Size | 5/16" |
Frame | |
Fabrication | Stamped |
Material | Zinc-Plated Steel |
Wheel Core Material | Nylon |
For Surface Type | Asphalt, Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile |
Mount Type | Plate |
Mounting Fasteners Included | No |
Mounting Holes | |
Center-to-Center Length (A) | 3 1/8" |
Center-to-Center Length (B) | 3" |
Center-to-Center Width (A) | 2 3/8" |
Center-to-Center Width (B) | 2 3/16" |
Performance | Easy Roll |
Country of Origin | Germany |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 871690.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Made from a special blend of rubber, the wheels on these casters roll easily over smooth and rough surfaces. They have a hard nylon core for strength with a soft, cushioning rubber tread.
Ball bearings in the wheel provide smooth rolling and are shielded to resist dust and debris.
The information in this 3-D model is provided for reference only.
