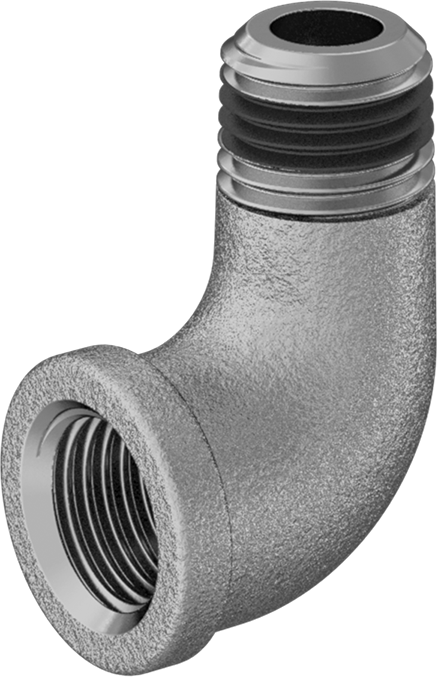

Low-Pressure Brass Pipe Fitting with Sealant
90 Degree Elbow Adapter, 1/4 NPT Female x Male
Pressure Rating | Low Pressure |
Fitting Seal Type | Thread Sealant |
Shape | 90° Elbow |
Fitting Type | Adapter |
Fitting Connection | NPT Female × NPT Male |
Pipe Size | |
(A) | 1/4 |
(B) | 1/4 |
Pressure Class | 125 |
Material | Brass |
Maximum Pressure @ Temperature | 200 psi @ 72° F |
Connects To | Pipe |
Features | Acrylic Thread Sealant |
Food Industry Standard | NSF/ANSI 61 |
For Flange | |
Class | 150 |
Material | Brass |
For Pipe Material | Brass |
For Pipe Schedule | 40 |
For Use With | Air, Drinking Water, Natural Gas, Oil, Water |
Performance | Corrosion Resistant |
Specifications Met | ASME B1.20.1, ASME B16.15 |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 741220.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The male threads on these fittings have a sealant applied for extra protection against leaks. Also known as Pressure Class 125 fittings, they are built for use in low-pressure applications. They are brass for good corrosion resistance.
90° Elbow Adapters—Female x male 90° elbow adapters are also known as street elbows.
NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

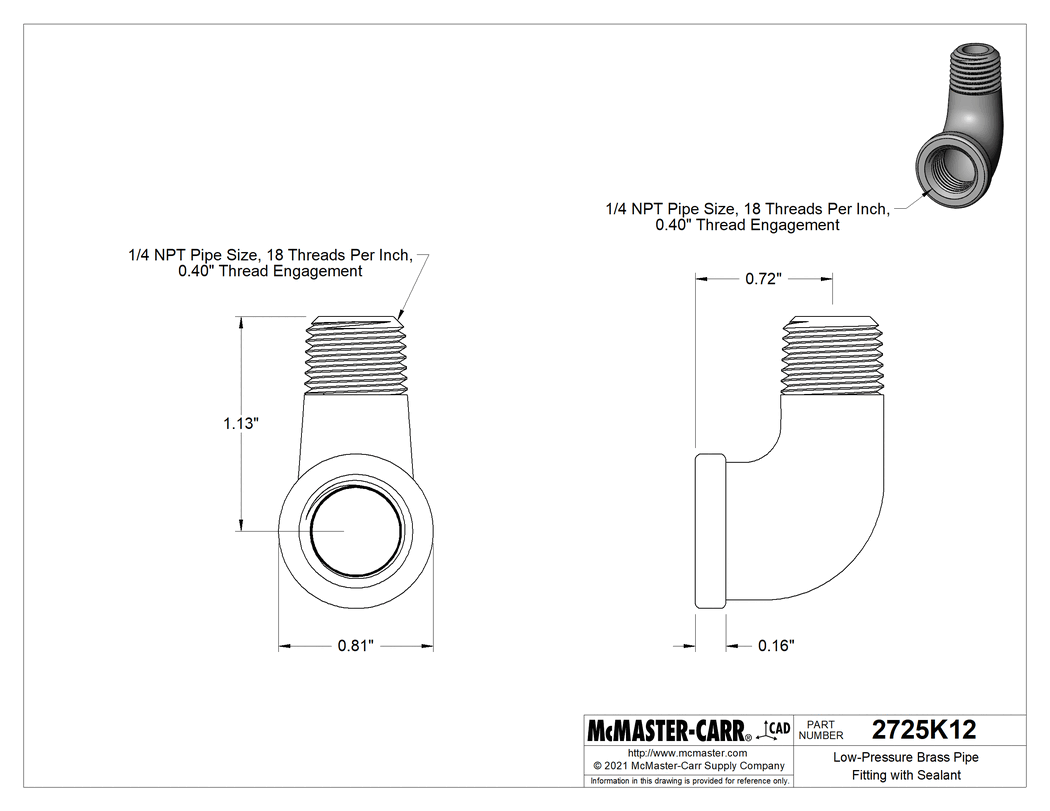

The information in this 3-D model is provided for reference only.
