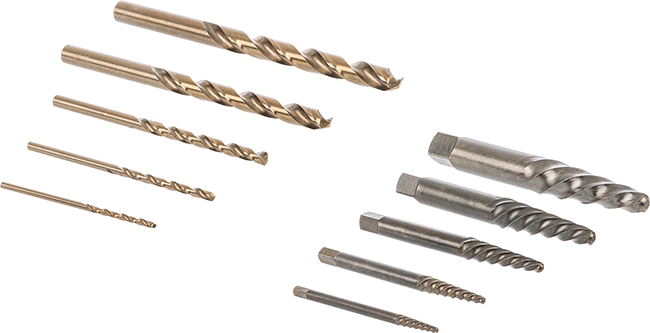

Extractor and Drill Bit Set
Right-Hand Cobalt Steel Drill Bits
For Thread Direction | Right Hand |
Drill Bit Flute Direction | Right Hand |
Drill Bit Material | Cobalt Steel |
Number of Extractors Included | 5 |
Extractor Trade Size | 1, 2, 3, 4, 5 |
For Screw | |
Thread Diameter | 0.1" to 0.78" |
Size | No. 8, No. 9, No. 10, No. 11, No. 12, No. 14, No. 15, No. 16, No. 17, 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", M2.5, M2.6, M2.9, M3, M3.12, M3.5, M3.63, M3.9, M4, M4.2, M4.5, M4.55, M5, M6, M7, M8, M10, M12, M14, M16, M18, M20 |
For Pipe Size | 1/8 |
Overall Length | 2", 2 3/8", 2 3/4", 3", 3 3/8" |
Square Shank Size | 0.125", 0.188", 0.25", 0.344", 0.438" |
Turns With | Wrench, Tap Wrench |
Material | Steel |
Number of Drill Bits Included | 5 |
Drill Bit Size | 5/64", 7/64", 5/32", 1/4", 19/64" |
Flute Type | Spiral |
For Extracting | Screws and Bolts, Threaded Studs, Threaded Rods, Pipe |
Number of Pieces | 10 |
Sold As | Set |
Use with Drill Bit Size | 5/64", 7/64", 5/32", 1/4", 19/64" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 820559.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
No more searching for the right drill bit sizes—these sets match them with the corresponding extractors. Drill a hole in the broken part, insert the extractor, and turn. The part will back out without damaging the threads around it.
