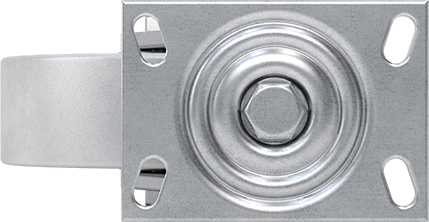

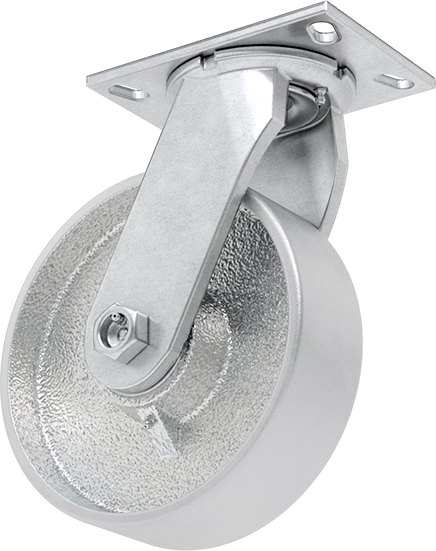

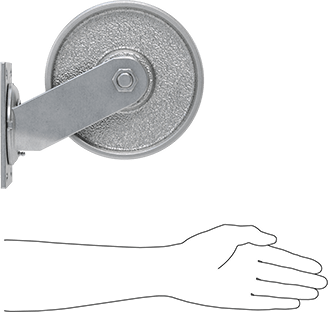

Viking Caster with 6-1/4" x 4-1/2" Plate
High-Capacity, Swivel with 8" Diameter Iron Wheel
Wheel Color | Gray |
Wheel Type | Solid |
Wheel/Tread Material | Painted Iron |
Hardness Rating | Hard |
Caster Type | Swivel |
Wheel | |
Diameter | 8" |
Width | 2 1/2" |
Number of | 1 |
Mount Height | 10 1/8" |
Weight Capacity per Caster | 1,800 lb. |
Wheel Bearing | |
Type | Roller |
Material | Steel |
Seal Type | Open |
For Screw Size | 1/2" |
Caster Swivel Construction | Kingpin |
For Surface Type | Concrete, Steel |
For Use With | Mild Acids, Mild Alkalis, Solvents, Grease, Oil |
Frame | |
Fabrication | Formed |
Material | Zinc-Plated Steel |
Hardness | Not Rated |
Mount Type | Plate |
Mounting Fasteners Included | No |
Mounting Holes | |
Center-to-Center Length (A) | 5 1/4" |
Center-to-Center Length (B) | 4 15/16" |
Center-to-Center Width (A) | 3 3/8" |
Center-to-Center Width (B) | 2 7/16" |
Mounting Plate | |
Length | 6 1/4" |
Width | 4 1/2" |
Nonmarking Wheels | No |
Performance | High Capacity |
Swivel Bearing | |
Type | Ball |
Seal Type | Open |
Construction | Dual Raceway |
Temperature | -40° F to 280° F |
Tread Style | Flat |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 871690.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Strong, thick frames make these casters suitable for medium and heavy duty applications. Their iron wheels offer the strength and wear resistance you need for heavy loads and long life. They work well on smooth surfaces.
Wheels have roller bearings for smooth rolling.
Swivel—Swivel casters have dual-raceway bearings for the smoothest swiveling.

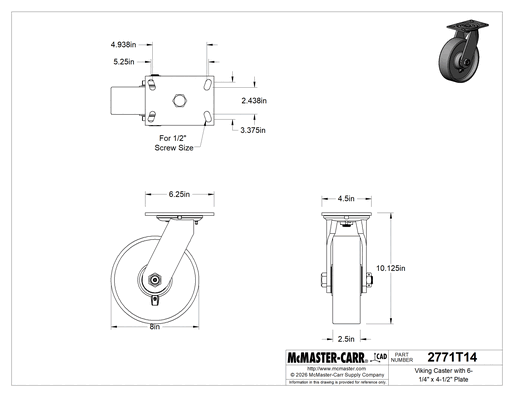

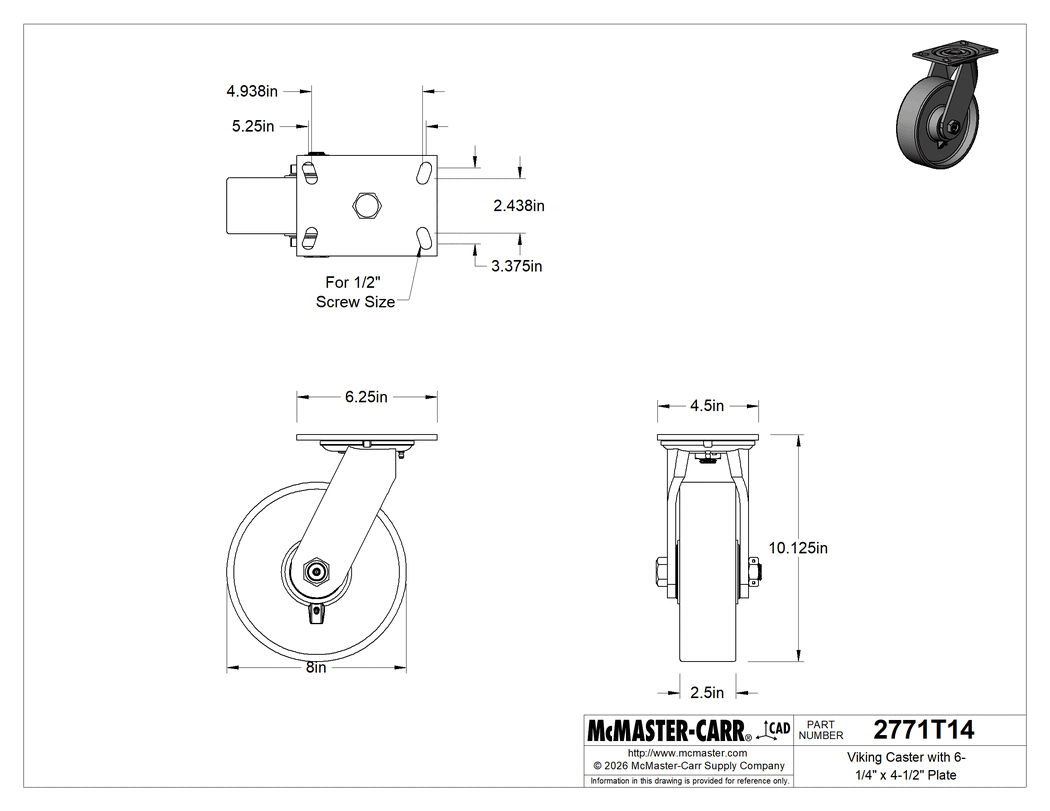

The information in this 3-D model is provided for reference only.
