    Viking Caster with 6-1/4" x 4-1/2" Plate

    High-Capacity, Rigid with 10" Diameter Iron Wheel

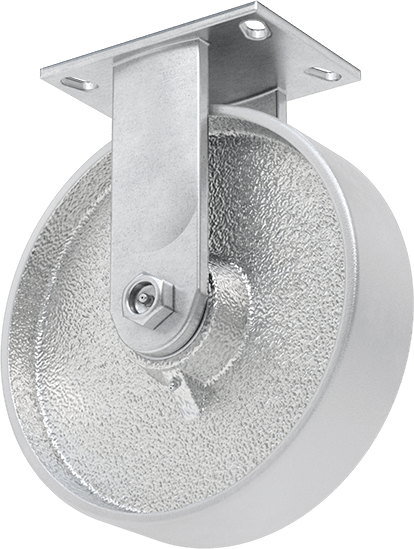

    Image of Product. Front orientation. Viking Caster with 6-1/4" x 4-1/2" Plate, High-Capacity, Rigid with 10" Diameter Iron Wheel.

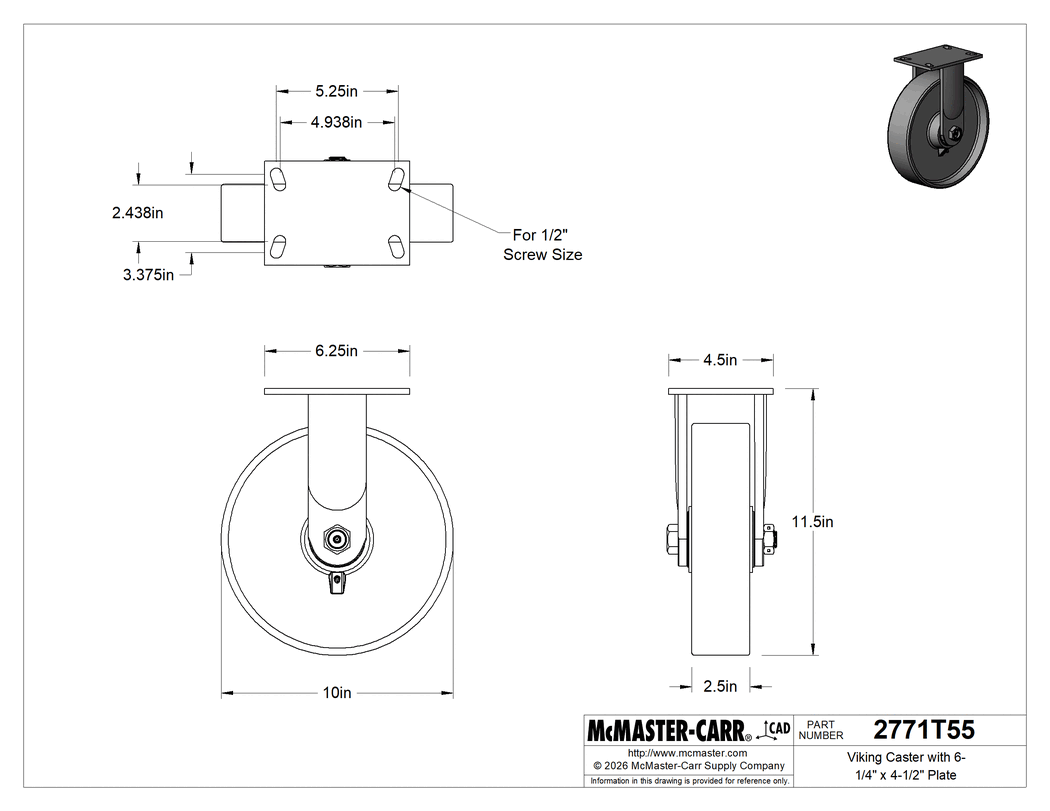

    Technical Drawing of Viking Caster with 6-1/4" x 4-1/2" Plate, High-Capacity, Rigid with 10" Diameter Iron Wheel.
    Image of Product. Back orientation. Viking Caster with 6-1/4" x 4-1/2" Plate, High-Capacity, Rigid with 10" Diameter Iron Wheel.

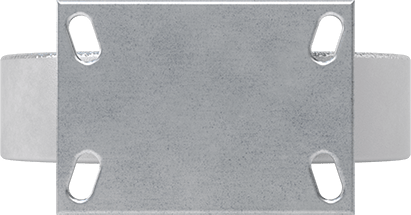

    Image of Product. Top orientation. Viking Caster with 6-1/4" x 4-1/2" Plate, High-Capacity, Rigid with 10" Diameter Iron Wheel.

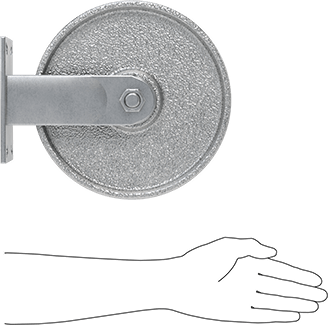

    Image of Product. Side1 orientation. Contains SizingReference. Viking Caster with 6-1/4" x 4-1/2" Plate, High-Capacity, Rigid with 10" Diameter Iron Wheel.
    2-D PDF
    0000000 each
    2771T55
    In stock
    2771T55
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Wheel Color

    Gray

    Wheel Type

    Solid

    Wheel/Tread Material

    Painted Iron

    Hardness Rating

    Hard

    Caster Type

    Rigid

    Wheel

    Diameter

    10"

    Width

    2 1/2"

    Number of

    1

    Mount Height

    11 1/2"

    Weight Capacity per Caster

    1,800 lb.

    Wheel Bearing

    Type

    Roller

    Material

    Steel

    Seal Type

    Open

    For Screw Size

    1/2"

    For Surface Type

    Concrete, Steel

    For Use With

    Mild Acids, Mild Alkalis, Solvents, Grease, Oil

    Frame

    Fabrication

    Formed

    Material

    Zinc-Plated Steel

    Hardness

    Not Rated

    Mount Type

    Plate

    Mounting Fasteners Included

    No

    Mounting Holes

    Center-to-Center Length (A)

    5 1/4"

    Center-to-Center Length (B)

    4 15/16"

    Center-to-Center Width (A)

    3 3/8"

    Center-to-Center Width (B)

    2 7/16"

    Mounting Plate

    Length

    6 1/4"

    Width

    4 1/2"

    Nonmarking Wheels

    No

    Performance

    High Capacity

    Temperature

    -40° F to 280° F

    Tread Style

    Flat

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    871690.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Strong, thick frames make these casters suitable for medium and heavy duty applications. Their iron wheels offer the strength and wear resistance you need for heavy loads and long life. They work well on smooth surfaces.

    Wheels have roller bearings for smooth rolling.

    The information in this 3-D model is provided for reference only.
