    Float without Connections

    304 Stainless Steel, 8" Diameter

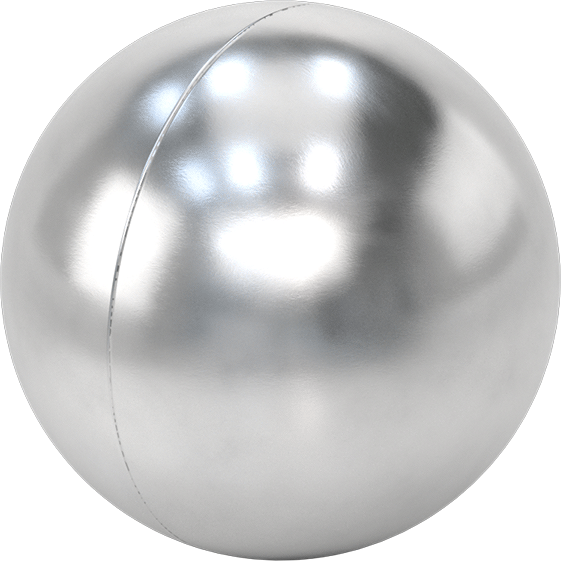

    Image of Product. Front orientation. Float without Connections, 304 Stainless Steel, 8" Diameter.

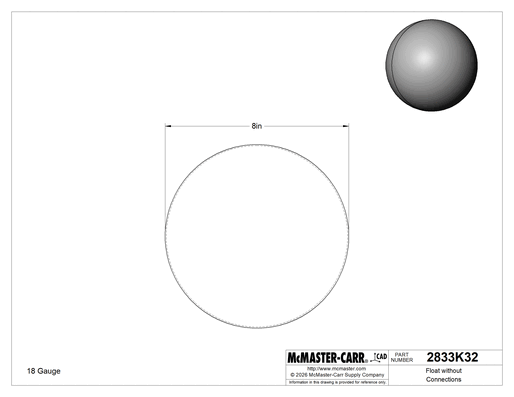

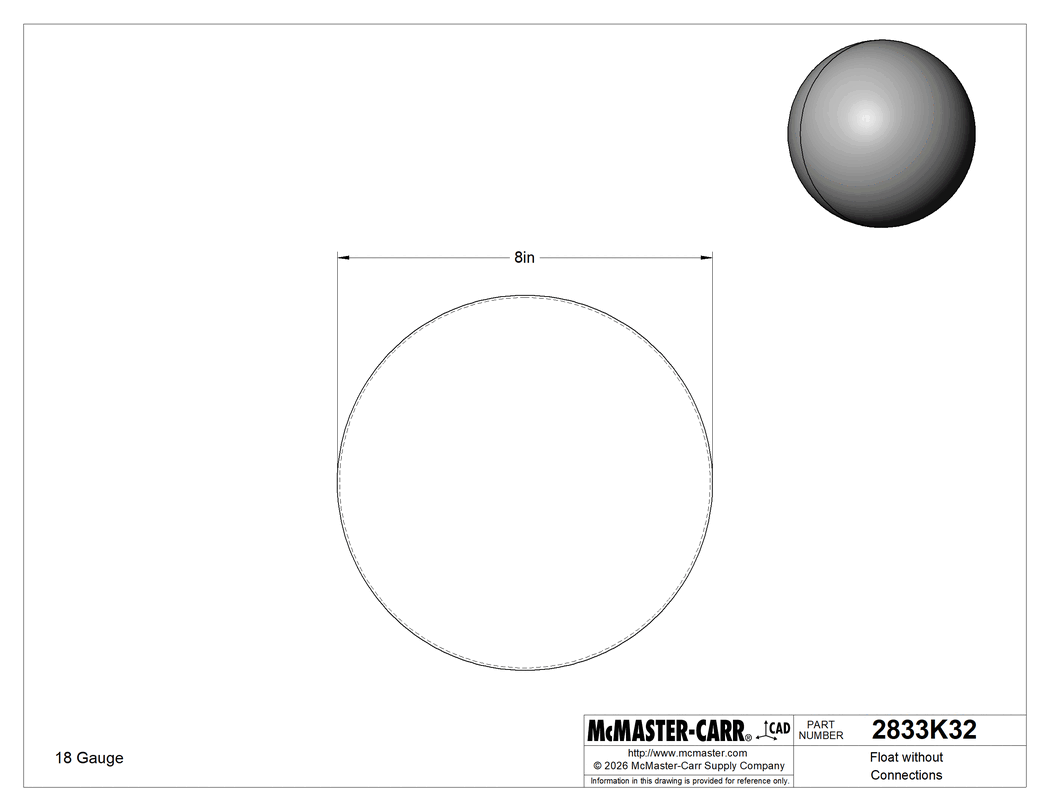

    Technical Drawing of Float without Connections, 304 Stainless Steel, 8" Diameter.

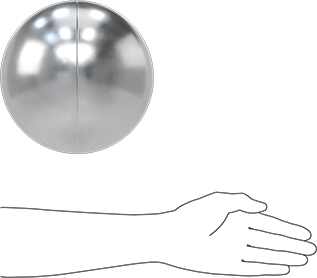

    Image of Product. Side1 orientation. Contains SizingReference. Float without Connections, 304 Stainless Steel, 8" Diameter.
    2-D PDF
    0000000 each
    2833K32
    In stock
    2833K32
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    304 Stainless Steel

    Shape

    Ball

    For Use With

    Hydraulic Fluid, Oil, Water

    Diameter

    8"

    Maximum Pressure

    275 psi

    Temperature Range

    -30° F to 225° F

    Gauge

    18

    For Container Type

    Open Tank, Closed Tank

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848190.9090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    These floats are untethered by a float rod so they can float freely in your tank.

    The information in this 3-D model is provided for reference only.
