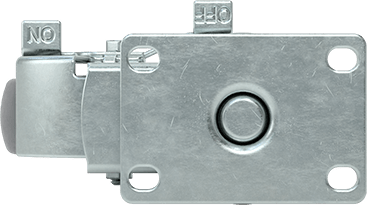

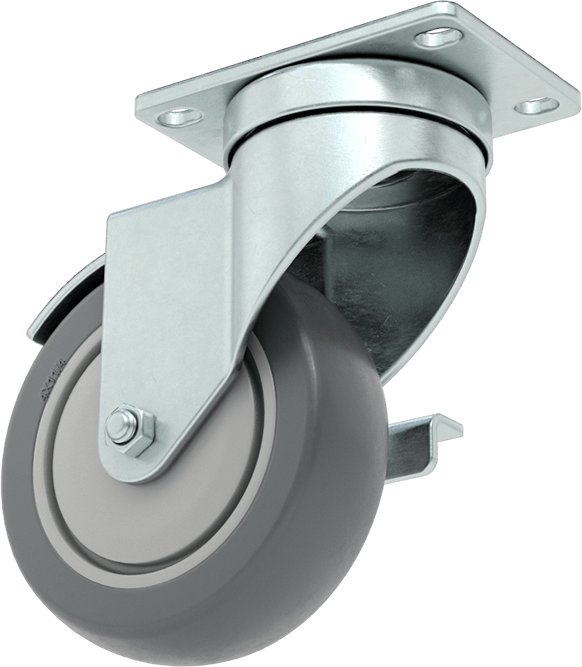

Mighty-Lite Caster
3-5/8" x 2-1/2" Plate, Swivel with Brake and 4" 80A Rubber Wheel
Mounting Plate | |
Length | 3 5/8" |
Width | 2 1/2" |
Style | 1 |
Wheel | |
Diameter | 4" |
Width | 1 1/4" |
Number of | 1 |
Nonmarking Wheels | No |
Wheel Color | Gray |
Wheel Type | Tread on Core |
Wheel/Tread Material | Rubber |
Hardness Rating | Soft |
Hardness | Durometer 80A |
Caster Type | Swivel |
Brake/Lock Type | Wheel Brake |
Mount Height | 5 1/4" |
Weight Capacity per Caster | 150 lb. |
Tread Style | Crown |
Wheel Bearing | |
Type | Roller |
Material | Steel |
Seal Type | Open |
Mounting Holes | |
Center-to-Center Width | 1 3/4" |
Center-to-Center Length (A) | 3 1/16" |
Center-to-Center Length (B) | 2 13/16" |
For Screw Size | 5/16" |
Frame | |
Fabrication | Stamped |
Material | Zinc-Plated Steel |
Caster Swivel Construction | Kingpin |
Swivel Bearing | |
Type | Ball |
Seal Type | Open |
Construction | Dual Raceway |
Wheel Core Material | Rubber |
Brake | |
Location | Right Side |
Activation | Foot Pedal |
For Surface Type | Asphalt, Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile |
Mount Type | Plate |
Mounting Fasteners Included | No |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
Schedule B Number | 871690.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These are our best general purpose casters in the lowest capacity range.
Tread-on-Core Wheel—Tread-on-core wheels have a core that is harder than the tread, balancing strength with cushioning.
Soft—Soft wheels are shock absorbing and provide good traction on rough surfaces.
Swivel Casters—Swivel casters have dual-raceway bearings for the smoothest swiveling.
Wheel Brake—Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.
Roller Bearings—Roller wheel bearings provide smoother rolling than sleeve bearings.

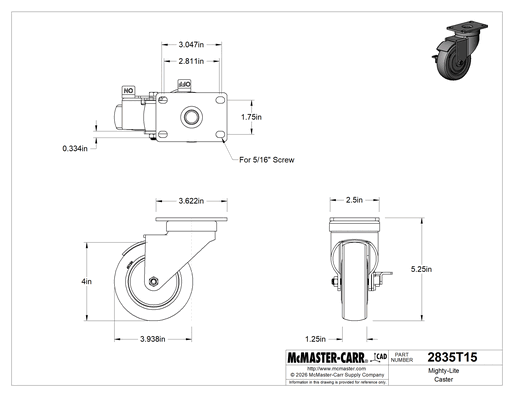

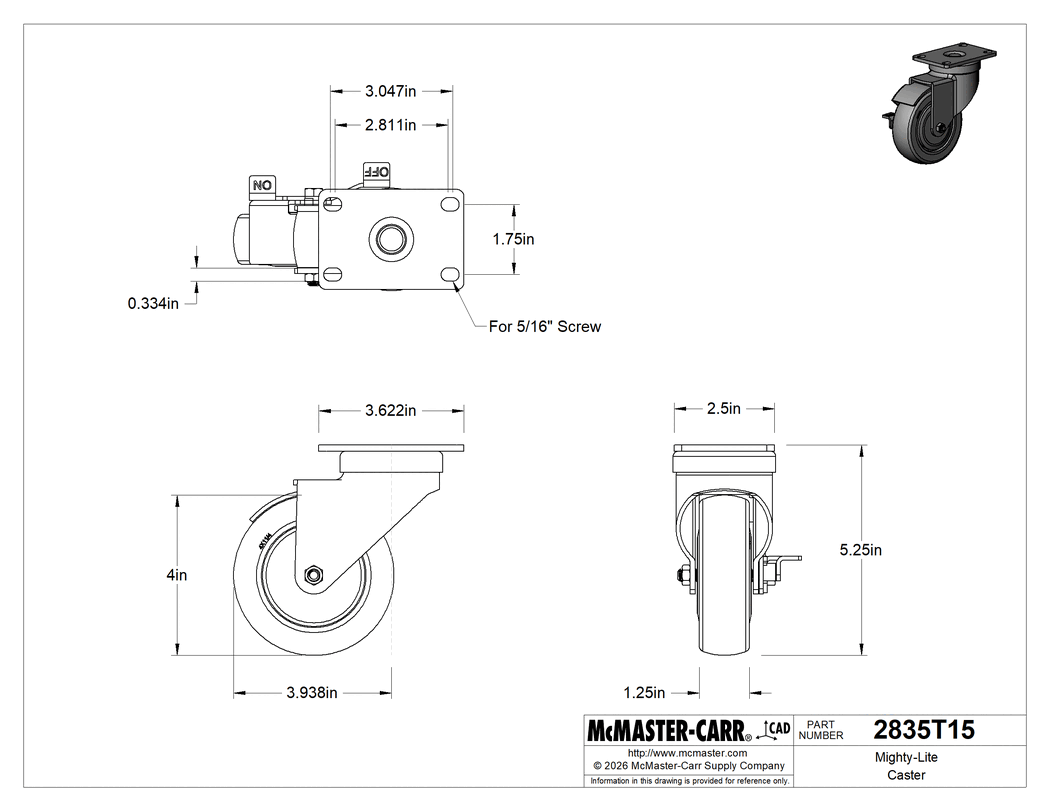

The information in this 3-D model is provided for reference only.
