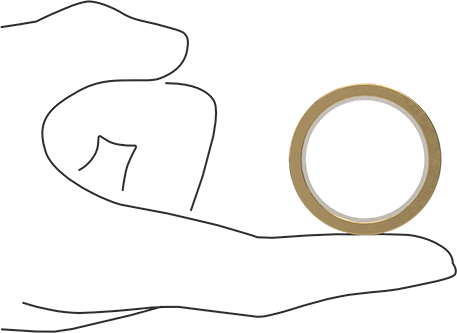

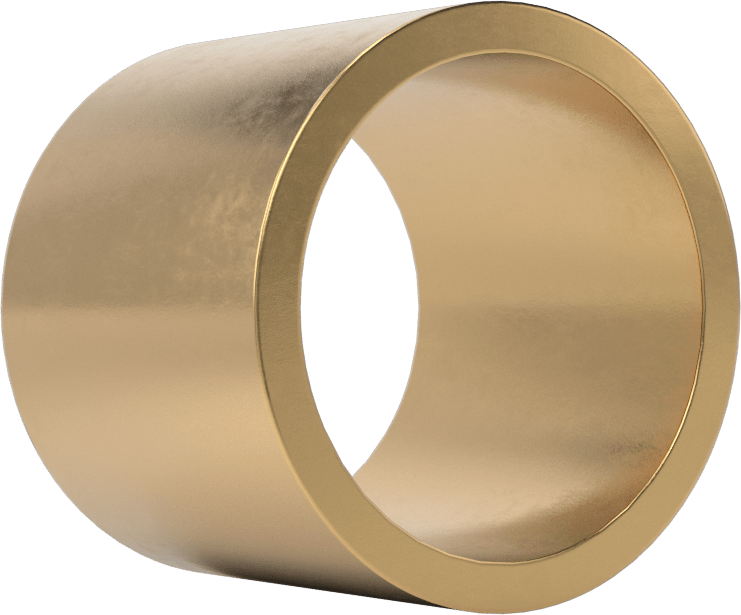

High-Strength Chemical-Resistant 954 Bronze Sleeve Bearing
for 1-1/4" Shaft Diameter and 1-1/2" Housing ID, 1-1/4" Long
Lubrication | Required |
Performance | Corrosion Resistant, Chemical Resistant, High Load, High Temperature, Low Temperature |
Material | 954 Bearing Bronze |
For Shaft Diameter | 1 1/4" |
For Housing ID | 1 1/2" |
Length | 1 1/4" |
Length Tolerance | -0.005" to 0.005" |
Dynamic Radial Load Capacity @ Speed | 7,000 lb. @ 30 rpm |
Temperature Range | -350° F to 500° F |
Bearing Type | Plain |
For Load Direction | Radial |
For Shaft Type | Round |
ID | 1.25" |
ID Tolerance | -0.001" to 0.001" |
OD | 1.5" |
OD Tolerance | 0.002" to 0.003" |
P Max | 4,500 psi |
Plain Bearing Type | Sleeve |
PV Max | 125,000 |
Shaft Mount Type | Slip Fit |
System of Measurement | Inch |
V Max | 225 fpm |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.8090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These bearings don’t come with a lubricant, so you can select the oil that meets the needs of your application. You’ll need to refill the oil, so make sure the bearing is located where you can access it. All are fabricated and inspected in the U.S.
With no moving parts, sleeve bearings are the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.
High-Load Chemical-Resistant 954 Bearing Bronze—The strongest of our bronze bearings. The addition of iron and aluminum makes them exceptionally strong and resistant to chemicals. They’re often used in the most demanding environments, such as salt mines. Also known as aluminum bronze.

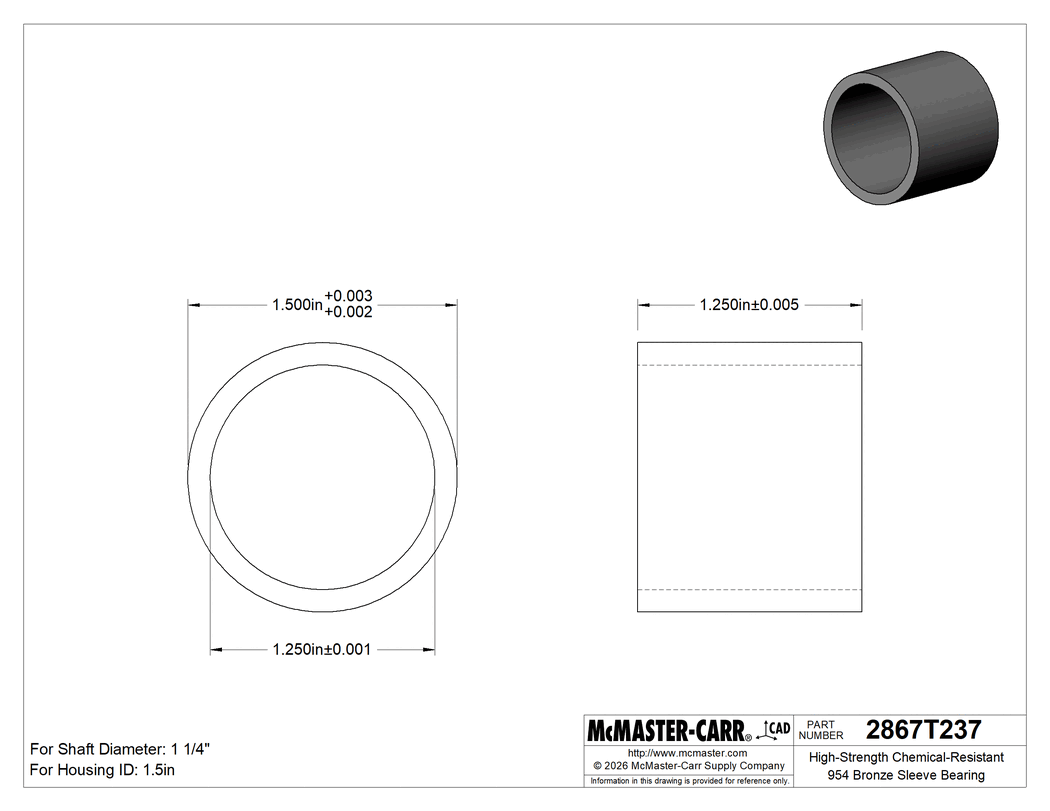

The information in this 3-D model is provided for reference only.
