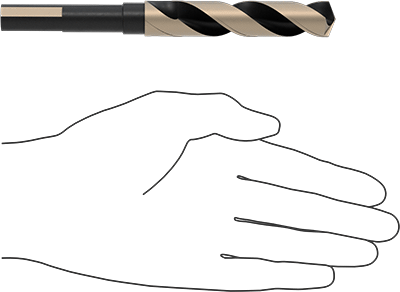

Black-Oxide High-Speed Steel 1/2" Diameter Reduced-Shank Drill Bit
with Flats on Shank, 21/32" Size, 6" Overall Length
Material | High-Speed Steel |
Length Class | Jobbers |
Drill Bit Size | 21/32" |
Decimal Size Equivalent | 0.6563" |
Overall Length | 6" |
Maximum Drilling Depth | 2.1" |
Shank | |
Size | 1/2" |
Type | Reduced Round/3-Flat |
Drill Bit Point Type | Split |
Bit Style | Fluted |
Features | Flats on Shank |
Finish | Black Oxide |
Flute Direction | Right Hand |
Flute Type | Spiral |
For Use On | Iron, Stainless Steel, Steel |
Number of Flutes | 2 |
Point Angle | 135° |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820750.2055 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Cut large holes with drill presses and portable drills that have a standard-size chuck. The shank on these bits has a smaller diameter than the cutting tip. High-speed steel is good for general purpose drilling in most metals. Also known as Silver and Deming bits.
Jobbers' Length—These bits have the balance of rigidity and length needed for most applications.
Black Oxide—The dark finish increases wear resistance and reduces friction to improve chip flow, so these bits can last 50% longer than uncoated bits.
Align and center
Reduce friction

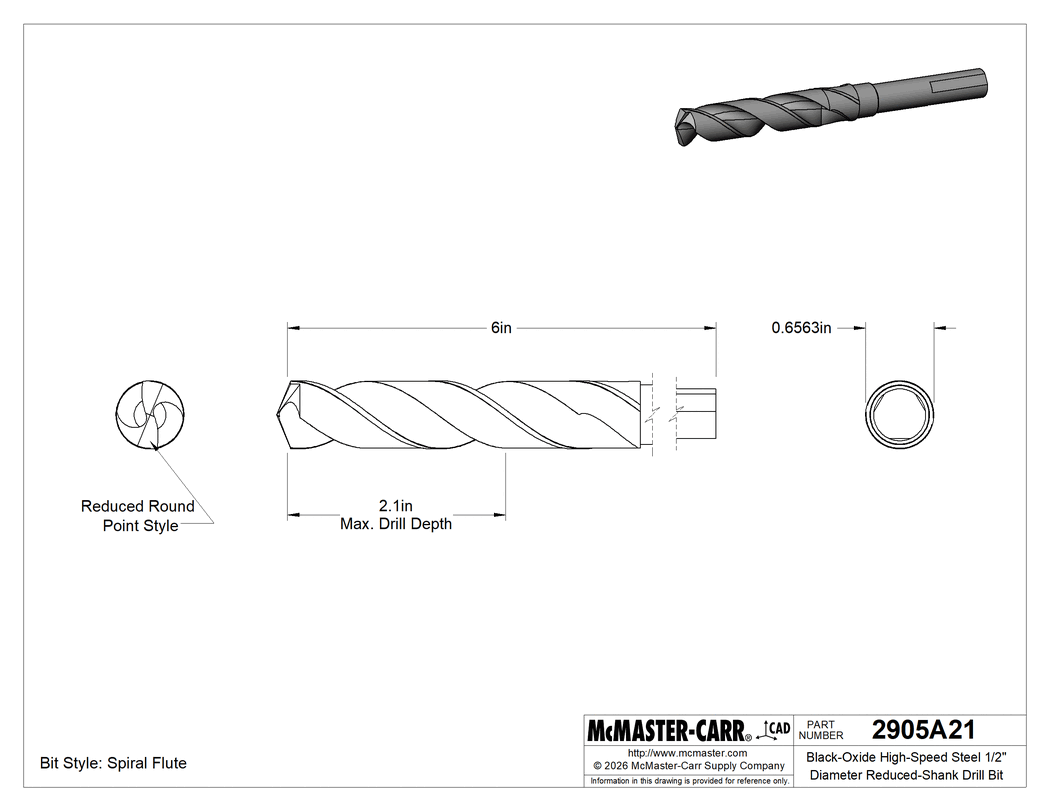

The information in this 3-D model is provided for reference only.
