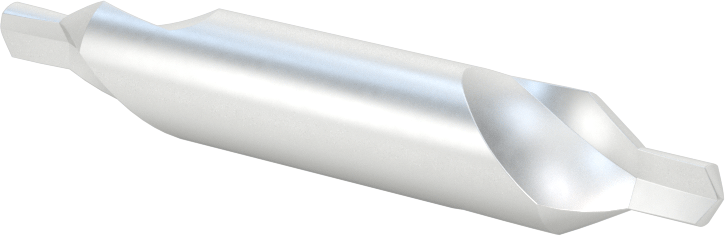

Center Drill
High-Speed Steel, 60 Degree Countersink, Trade Size 5, 2-3/4" Overall Length
Center Drill Type | Standard |
Material | High-Speed Steel |
Countersink Angle | 60° |
Finish | Uncoated |
Trade Size | 5 |
Drill Bit Size | 3/16" |
Diameter | |
Body | 7/16" |
Shank | 7/16" |
Overall Length | 2 3/4" |
Number of Flutes | 2 |
Number of Countersinking Ends | 2 |
Manufacturer | Keo |
For Cutting | Lathe Center Holes |
For Use On | Aluminum, Brass, Bronze, Iron, Plastic, Stainless Steel, Steel |
Shank Material | Steel |
Shank Type | Round |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820750.4060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Create precisely centered holes that mate with lathe centers or drill and countersink in a single step to install fasteners.
High-Speed Steel—These versatile, wear-resistant center drills cut cleanly in most materials, including plastic, aluminum, and steel.
60° Countersink Angle—The most common center drill angle. The short and sturdy tip starts holes that perfectly match lathe centers.
Uncoated—Suitable for most tasks, but won't last as long as coated center drills.

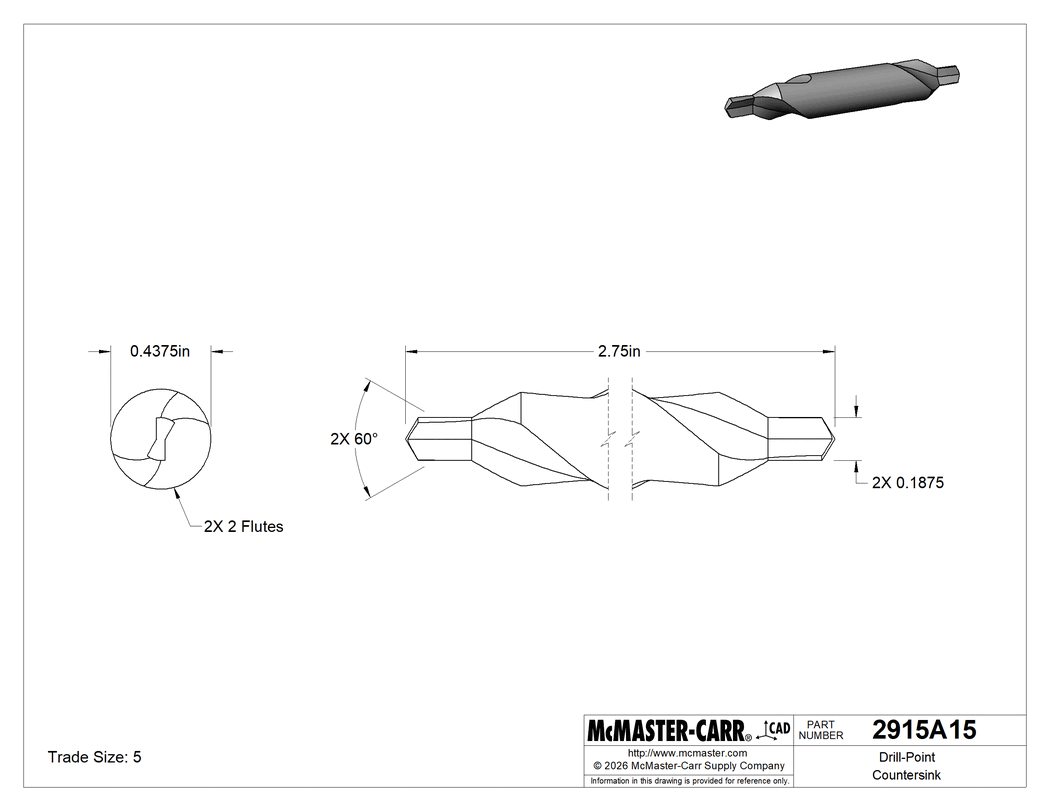

The information in this 3-D model is provided for reference only.
