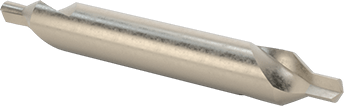

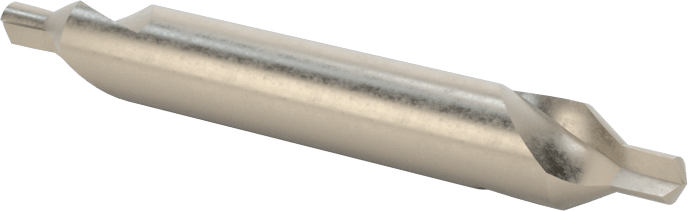

Center Drill
Cobalt Steel, 60 Degree, Trade Size 3, 2" Overall Length
Center Drill Type | Standard |
Material | Cobalt Steel |
Countersink Angle | 60° |
Finish | Uncoated |
Trade Size | 3 |
Drill Bit Size | 7/64" |
Diameter | |
Body | 1/4" |
Shank | 1/4" |
Overall Length | 2" |
Number of Flutes | 2 |
Number of Countersinking Ends | 2 |
Manufacturer | Dormer Pramet |
For Cutting | Lathe Center Holes |
For Use On | Aluminum, Brass, Bronze, Iron, Nickel, Plastic, Stainless Steel, Steel, Titanium, Hardened Steel |
Shank Material | Steel |
Shank Type | Round |
Country of Origin | Brazil |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820750.4060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Create precisely centered holes that mate with lathe centers or drill and countersink in a single step to install fasteners.
Cobalt Steel—Tough and wear resistant, these center drills last at least twice as long as high-speed steel. They can also run up to 25% faster at higher temperatures without chipping on hard materials, such as nickel.
60° Countersink Angle—The most common center drill angle. The short and sturdy tip starts holes that perfectly match lathe centers.
Uncoated—Suitable for most tasks, but won't last as long as coated center drills.

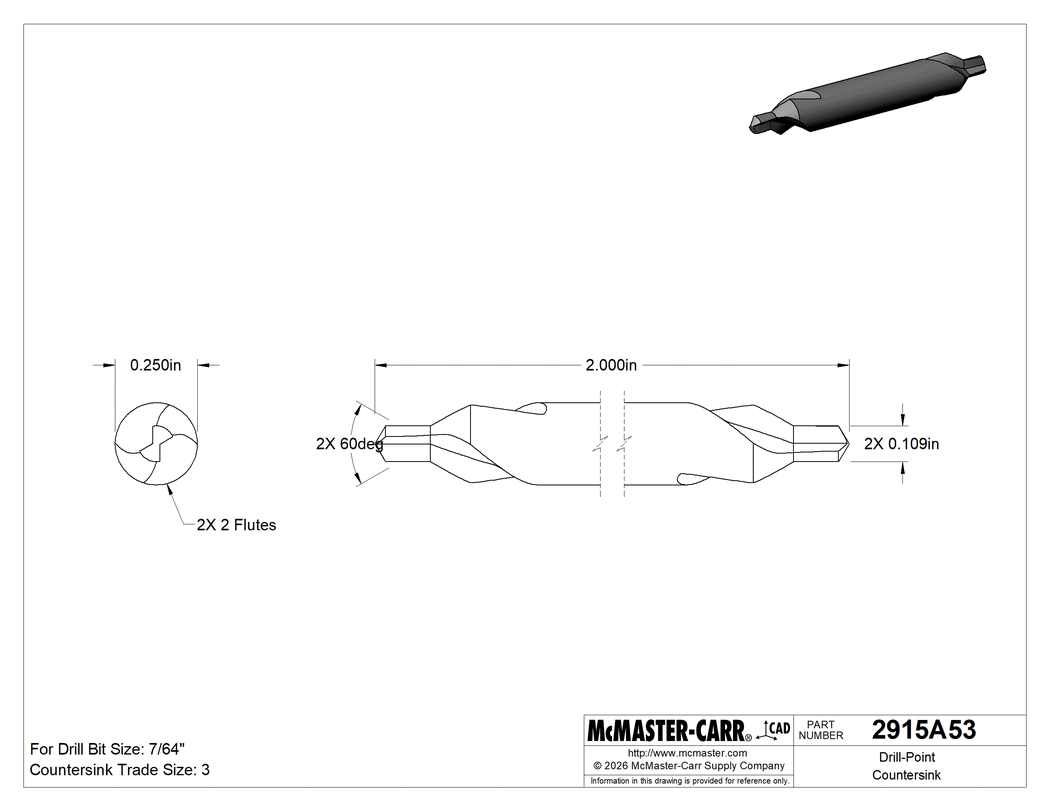

The information in this 3-D model is provided for reference only.
