    Steel Eyebolt with Shoulder - for Lifting

    1/2"-13 Thread Size, 3" Thread Length

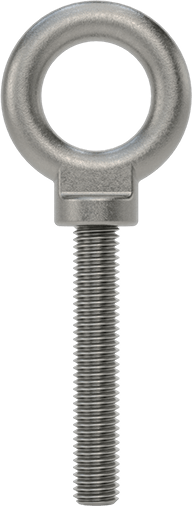

    Image of Product. Front orientation. Steel Eyebolt with Shoulder - for Lifting, 1/2"-13 Thread Size, 3" Thread Length .

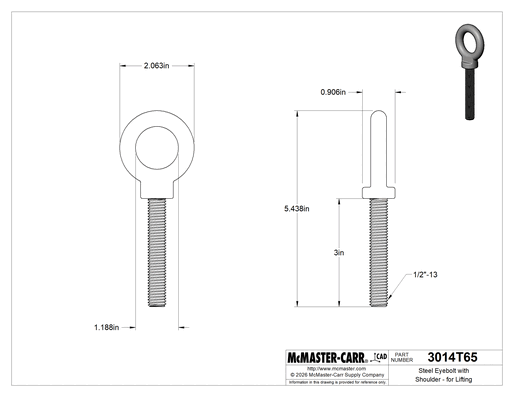

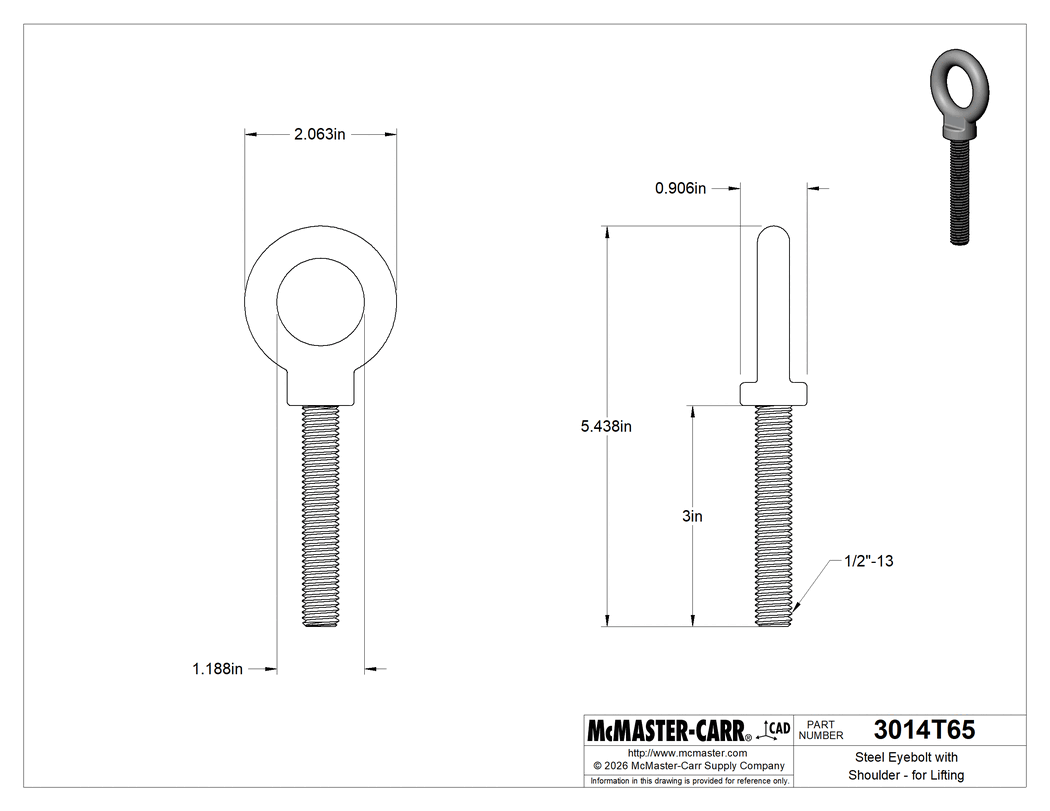

    Technical Drawing of Steel Eyebolt with Shoulder - for Lifting, 1/2"-13 Thread Size, 3" Thread Length .

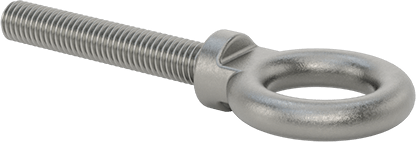

    Image of Product. Top orientation. Steel Eyebolt with Shoulder - for Lifting, 1/2"-13 Thread Size, 3" Thread Length .
    Image of Product. Side1 orientation. Contains SizingReference. Steel Eyebolt with Shoulder - for Lifting, 1/2"-13 Thread Size, 3" Thread Length .
    click to play the video
    2-D PDF
    000000 each
    3014T65
    In stock
    3014T65
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Steel

    Eye

    Diameter

    1 3/16"

    Type

    Closed

    Shape

    Round

    Body Style

    With Shoulder

    Thread

    Size

    1/2"-13

    Length

    3"

    Shank Length

    3"

    Vertical Capacity

    2,600 lb.

    Threading

    Fully Threaded

    Overall Length

    5 3/8"

    Application

    For Lifting

    Movement

    Rigid

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.2000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Create a secure attachment point for hooks, shackles, and other lifting equipment. Also known as machinery eyebolts, these eyebolts are used to lift heavy machines and materials. They have a closed eye that won’t bend under strain.

    Warning: Never use to lift people or items over people. Capacities listed are for vertical lifting only.

    With Shoulder—Use for lifting at angles up to 45° or for vertical lifting. Because angular lifting significantly reduces the eyebolt’s capacity, we recommend hoist rings for heavy loads.

    The information in this 3-D model is provided for reference only.
