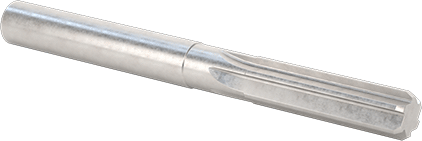

Carbide Round-Shank Reamer
0.3438" Reamer Diameter
Sold As | Individual |
Reamer Type | Standard |
Shank Type | Round |
Flute Type | Straight |
System of Measurement | Inch |
Reamer Diameter | 0.3438" |
Reamer Fractional Size | 11/32" |
Material | Carbide |
Length | |
Flute | 1 1/4" |
Overall | 3 1/2" |
Number of Flutes | 6 |
Cutting Diameter Tolerance | 0" to 0.0003" |
For Use On | Aluminum, Brass, Bronze, Fiberglass, Iron, Nickel, Plastic, Stainless Steel, Steel, Titanium, Tool Steel, Hardened Steel |
Reamer Operation | Machine |
Shank Diameter | 11/32" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820760.0060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Finish holes to precise inch, metric, wire gauge, or letter sizes with these reamers.
Round Shank—These reamers fit in the chuck of drill presses, turret lathes, and other machine and power tools, making them the most common shank type.
Straight Flute—The most common flute style, these reamers are suitable for a wide range of applications, but not recommended for holes with a keyway or other breaks in the surface.
Carbide—For the highest level of accuracy when cutting hard materials, these are our hardest, strongest, and most wear-resistant reamers. They're used on materials such as iron, hardened steel, steel alloys, and plastic. Their hardness means they are brittle, so a highly rigid setup, such as a CNC machine, is necessary to prevent the reamer from breaking.
Prepare hole
Align and center

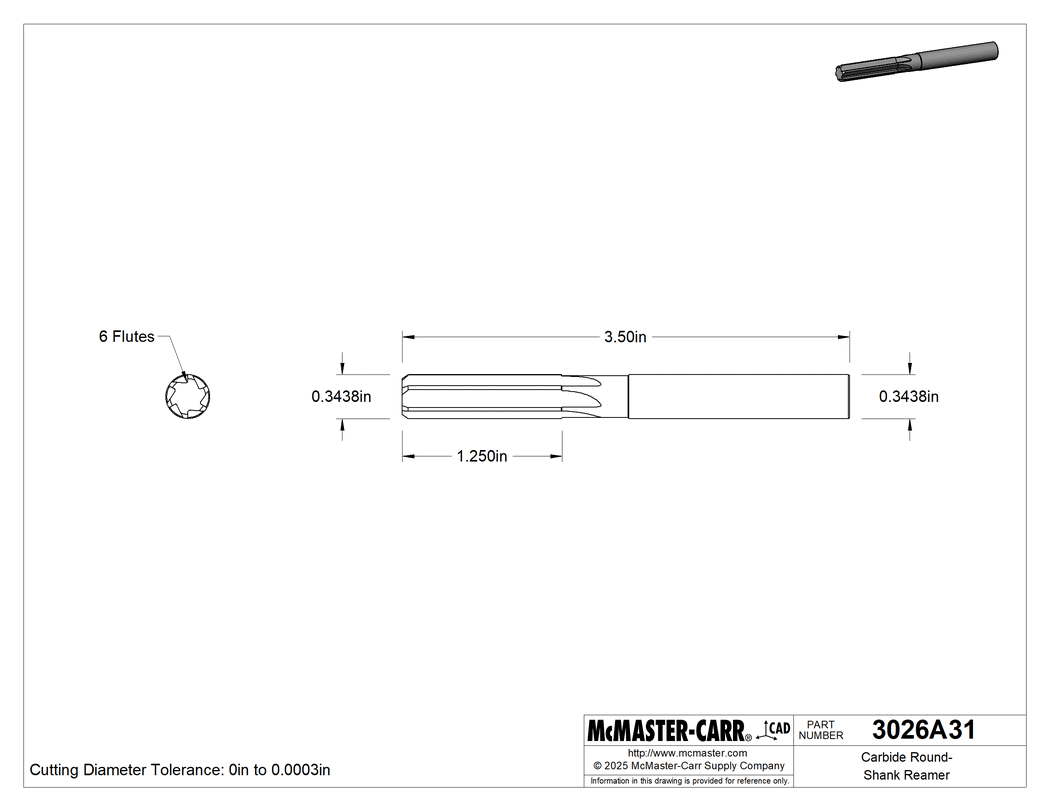

The information in this 3-D model is provided for reference only.
