    Low-Visibility Eyebolt

    with Shoulder-for Lifting, 1"-8 Thread Size, 2-1/2" Thread Length

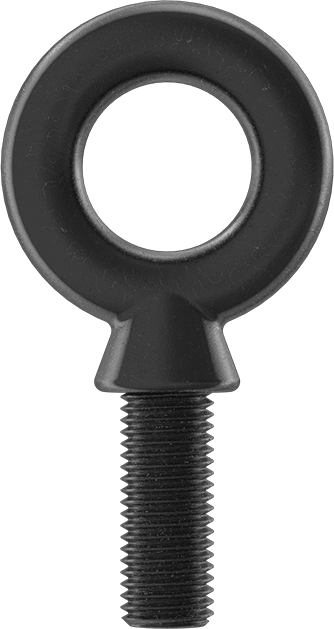

    Image of Product. Front orientation. Low-Visibility Eyebolt, with Shoulder-for Lifting, 1"-8 Thread Size, 2-1/2" Thread Length .

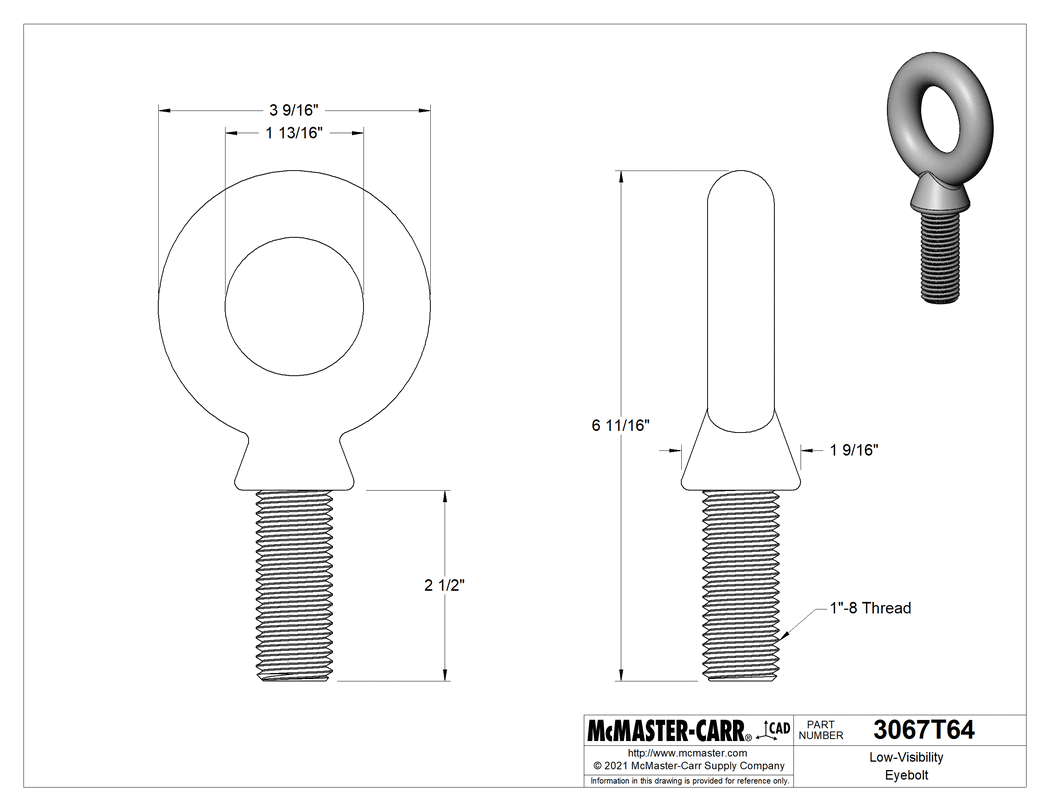

    Technical Drawing of Low-Visibility Eyebolt, with Shoulder-for Lifting, 1"-8 Thread Size, 2-1/2" Thread Length .
    Image of Product. Front orientation. Contains Annotated. Low-Visibility Eyebolt, with Shoulder-for Lifting, 1"-8 Thread Size, 2-1/2" Thread Length .
    click to play the video
    2-D PDF
    000000 each
    3067T64
    In stock
    3067T64
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Black-Oxide Steel

    Eye

    Diameter

    1 13/16"

    Type

    Closed

    Shape

    Round

    Body Style

    With Shoulder

    Thread

    Size

    1"-8

    Length

    2 1/2"

    Shank Length

    2 1/2"

    Vertical Capacity

    9,000 lb.

    Threading

    Fully Threaded

    Appearance

    Dull

    Overall Length

    6 5/8"

    Application

    For Lifting

    Movement

    Rigid

    Performance

    Low Visibility

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.2000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    The matte black-oxide finish won't reflect light, allowing the eyebolts to blend into the background.

    Note: Capacities listed are for vertical lifting only. Eyebolts with shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. For angular lifting, we recommend Hoist Rings. Eyebolts without shoulder are for vertical lifting only.

    Warning: Never use to lift people or items over people.

    Black-Oxide Steel—Black-oxide steel eyebolts are more corrosion resistant than zinc-plated steel.

    Closed Eye—Closed eyes are stronger than bent-closed eyes.

    The information in this 3-D model is provided for reference only.
