    Steel Pilot for Changeable-Pilot Counterbores

    5/16" Shank Diameter with 5/8" Pilot Head

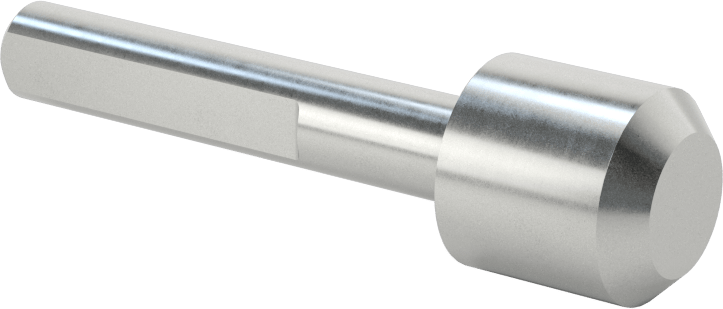

    Image of Product. Front orientation. Steel Pilot for Changeable-Pilot Counterbores, 5/16" Shank Diameter with 5/8" Pilot Head.

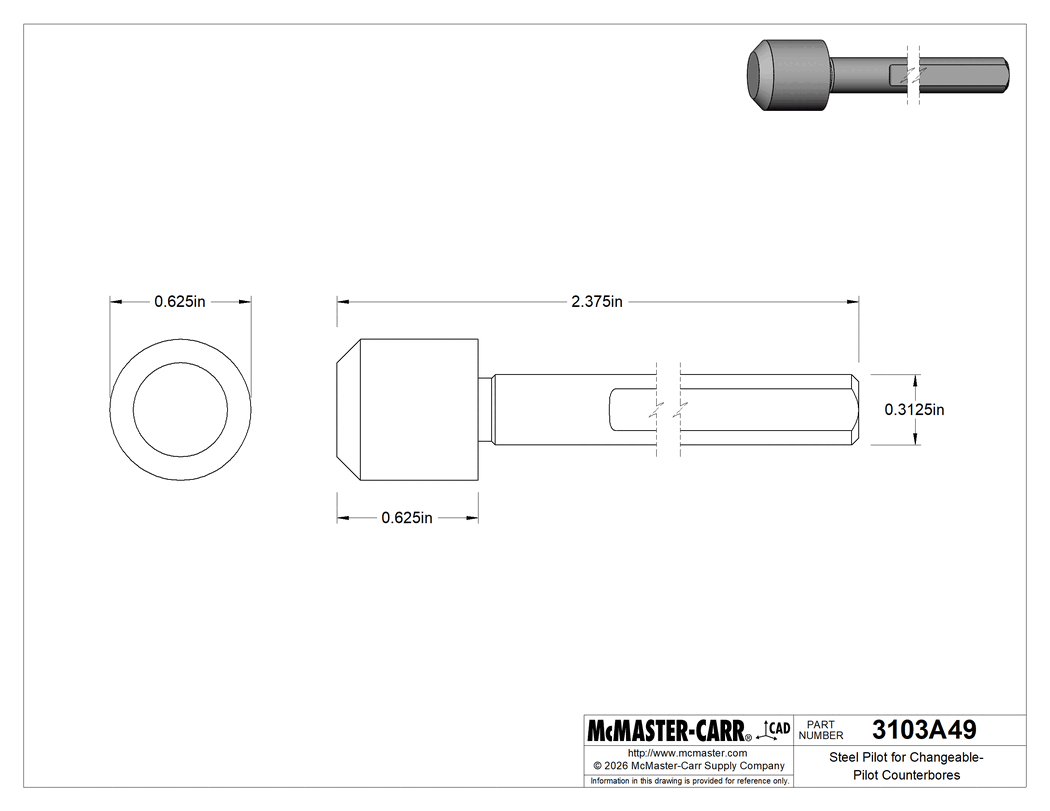

    Technical Drawing of Steel Pilot for Changeable-Pilot Counterbores, 5/16" Shank Diameter with 5/8" Pilot Head.

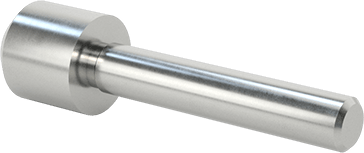

    Image of Product. Back orientation. Steel Pilot for Changeable-Pilot Counterbores, 5/16" Shank Diameter with 5/8" Pilot Head.
    Image of Product. Side1 orientation. Contains SizingReference. Steel Pilot for Changeable-Pilot Counterbores, 5/16" Shank Diameter with 5/8" Pilot Head.
    2-D PDF
    000000 each
    3103A49
    In stock
    3103A49
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Counterbore Pilot Type

    Changeable

    Material

    Uncoated Carbon Steel

    Pilot Shank Diameter

    5/16"

    Pilot

    Head Diameter

    5/8"

    Length

    5/8"

    For Use On

    Aluminum, Brass, Bronze, Iron, Plastic, Stainless Steel, Steel

    Sold As

    Individual

    Tolerance Rating

    Standard

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820760.0060

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Align counterbores in the center of drilled holes. Choose a pilot with a shank diameter that matches the hole in the tip of your counterbore.

    The information in this 3-D model is provided for reference only.
