    Self-Supporting Setup Clamp

    for 5" Maximum Workpiece Thickness and 1" Diameter Stud

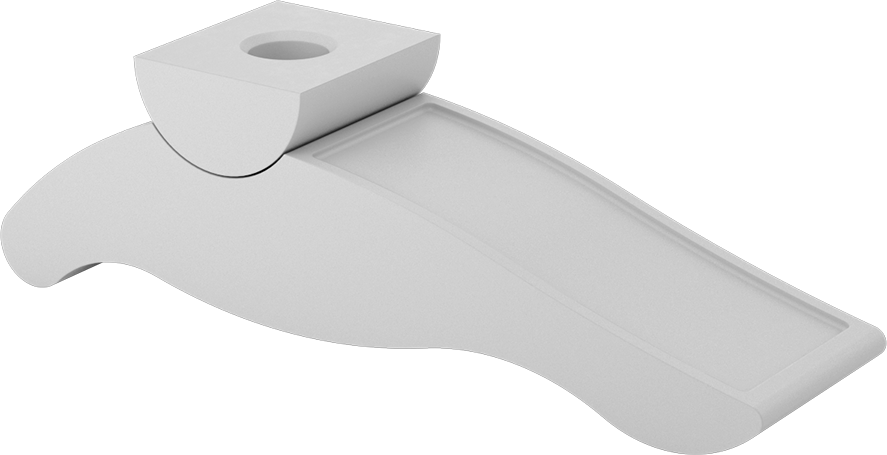

    Image of Product. Front orientation. Self-Supporting Setup Clamp, for 5" Maximum Workpiece Thickness and 1" Diameter Stud.

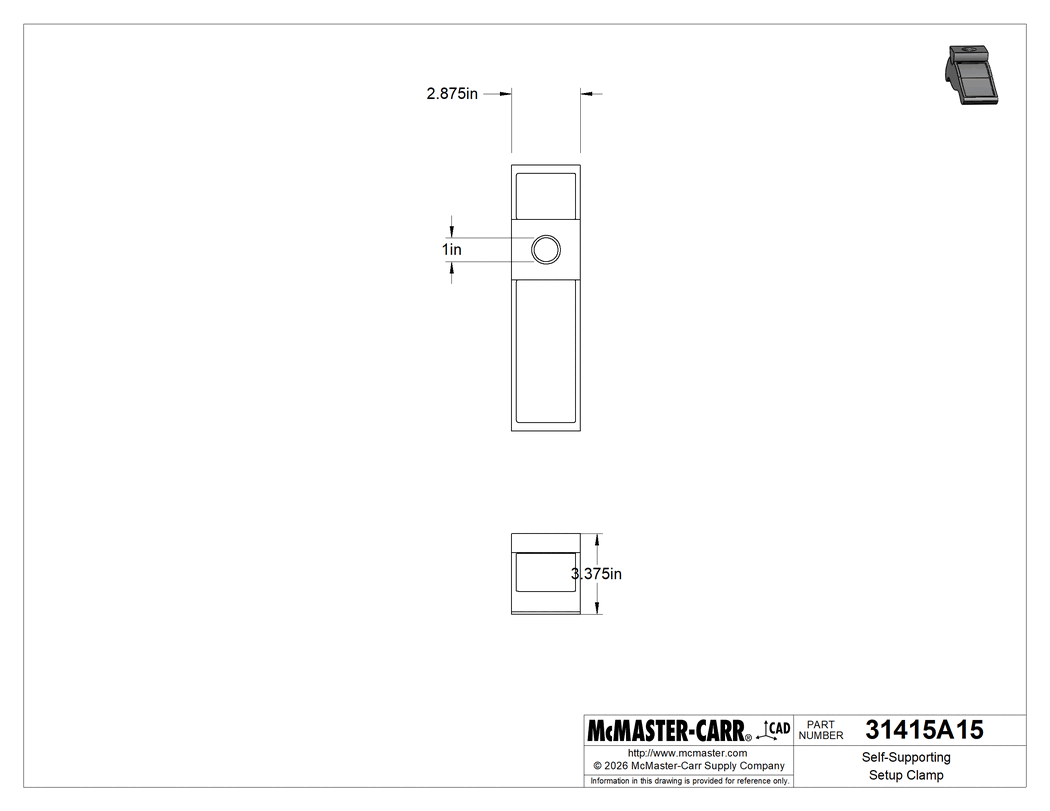

    Technical Drawing of Self-Supporting Setup Clamp, for 5" Maximum Workpiece Thickness and 1" Diameter Stud.

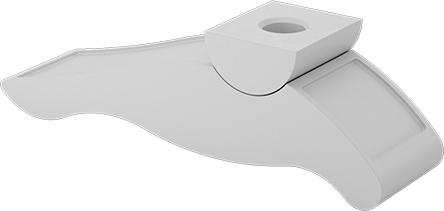

    Image of Product. Back orientation. Self-Supporting Setup Clamp, for 5" Maximum Workpiece Thickness and 1" Diameter Stud.

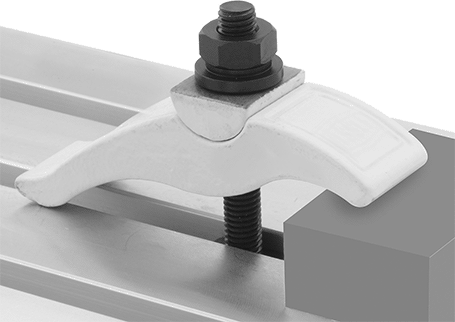

    Image of ProductInUse. Front orientation. Self-Supporting Setup Clamp, for 5" Maximum Workpiece Thickness and 1" Diameter Stud.
    Image of Product. Side1 orientation. Contains SizingReference. Self-Supporting Setup Clamp, for 5" Maximum Workpiece Thickness and 1" Diameter Stud.
    2-D PDF
    0000000 each
    31415A15
    In stock
    31415A15
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Maximum Workpiece Thickness

    5"

    For Stud Diameter

    1"

    Length

    11 1/8"

    Width

    2 7/8"

    Height

    3 3/8"

    Material

    Iron

    Clamp Type

    Machine Table

    Clamping Action

    Hold Down

    Performance

    Self-Supporting

    System of Measurement

    Inch

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    846620.8020

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Eliminating the need for step blocks or other rear support, the pivoting rocker clamps workpieces of various thicknesses. Use these clamps with T-slot nuts or bolts to secure a workpiece, vise, or fixture to a machine table.

    The information in this 3-D model is provided for reference only.
