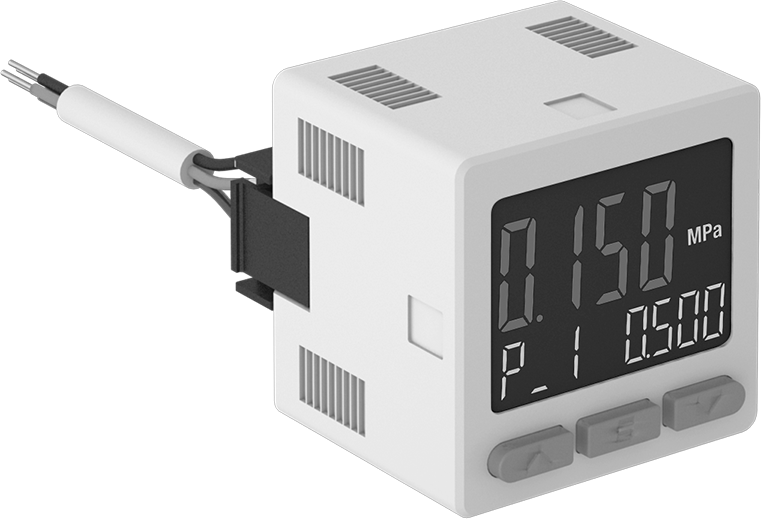

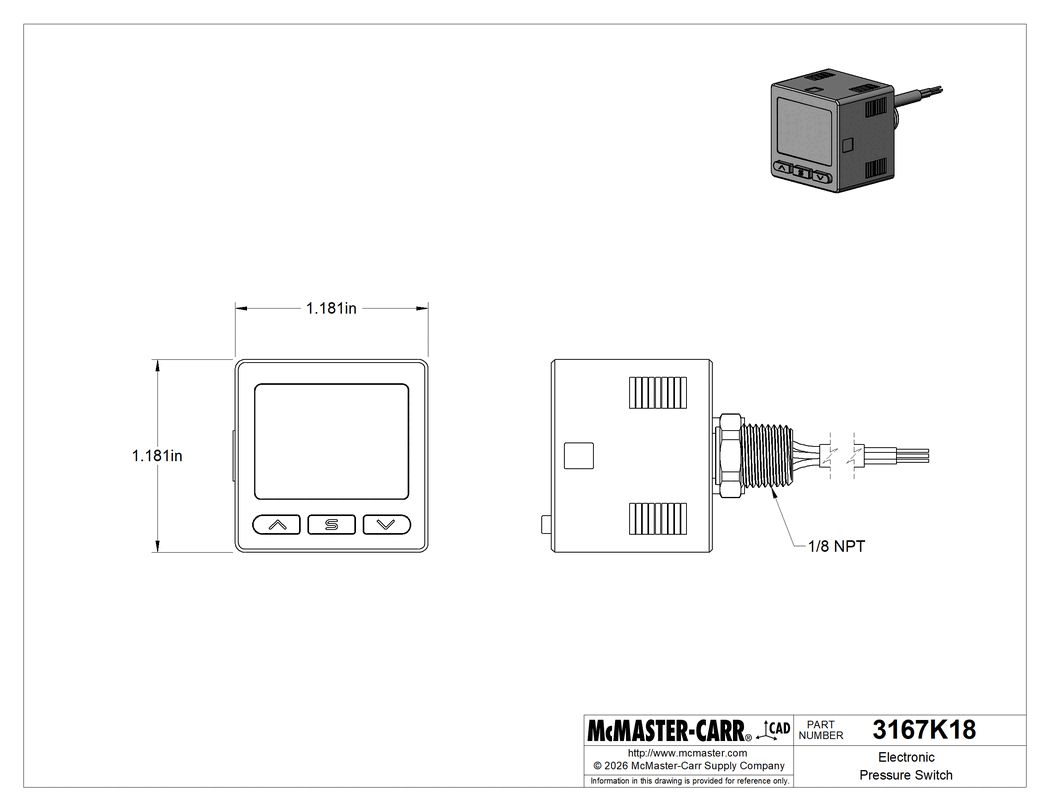

Electronic Pressure Switch
for Compressed Air, PNP, 1/8 NPT Male
Signal Output | PNP |
Pipe Connection | 1/8 NPT Male Threaded Pipe |
Pressure Set Point Range | 0 psi to 145 psi |
Approximate Difference Between Set Point and Reset Point | Adjustable |
Maximum Continuous Pressure | 145 psi |
Accuracy | ±0.2% |
Maximum Switching Current @ Voltage | 25 mA @ 24V DC |
Process Temperature Range | 25° F to 120° F |
Connection Material | Nickel-Plated Brass |
Wire Connection | Wire Leads |
For Use With | Air, Argon, Nitrogen |
Enclosure Rating | IP40 |
Adjustment Mechanism Location | External |
Certification | C-UL Recognized Component, CE Marked, UL Recognized Component |
Digit Height | 3/8" |
Digital Display Type | LCD |
Display Type | Digital |
For Mounting Bracket Style | Square Panel Mount |
Material | |
Housing | Polybutylene |
Gasket | Buna-N |
Maximum Short-Term Pressure | 215 psi |
Measurement Unit | Bar, Megapascals, Pounds per Square Inch |
Number of Circuits Controlled | 1 |
Input Voltage | 12V DC to 24V DC |
Number of Outputs | 1 |
Operation Type | Solid State |
Output Signal Type | Digital |
Overall | |
Width | 1 3/16" |
Height | 1 3/16" |
Set Point Adjustability | Adjustable |
Switch Starting Position | 1 Off |
Environment Temperature | 25° F to 120° F |
Operates On | Pressure |
UL File Number | E216656 |
Wire Leads | |
Number of | 3 |
Length | 78" |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c), 7(a), 7(c)-I |
Schedule B Number | 853650.9065 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
With a set pressure range that works for most air systems, these switches send signals when your air system reaches a set pressure to your programmable logic controller (PLC) to activate automated controls and alarms. All meet at least one American, Canadian, or European safety standard.
Monitor your pressure on the display and change your setpoint, reset point, scaling, and other settings using the buttons. An adjustable reset point means you can control the amount of pressure change before the switch resets, also known as deadband or differential. Choose anywhere within the setpoint range for your reset point.
