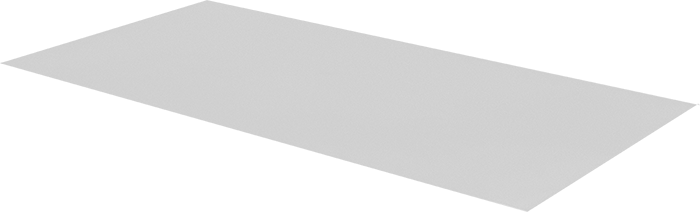

Pressure Recording Film
Variance Analysis Kit, 12" x 21-1/4", 28 to 85 PSI
Component | Pressure Variance Analysis Kit |
Length | 12" |
Width | 21 1/4" |
Thickness | 0.007" |
Pressure Range | 28 psi to 85 psi |
Image Produced | Color |
Spatial Resolution | 5 μm to 15 μm |
Temperature Range | 70° F to 95° F |
Includes | Two 0.0035" Thick Sheets |
Accuracy | ±4% |
Country of Origin | Japan, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 392069.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Products | |

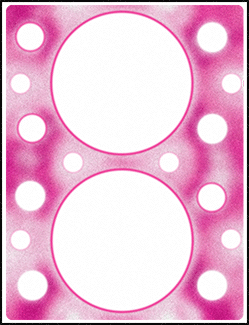

Create an instant, permanent image of pressure distribution and magnitude. These sheets of film help you identify uneven pressure that can lead to leaks and stress fractures. Use them between any two surfaces that touch each other, such as bolted joints, welding fixtures, and jigs. Tiny capsules within the film burst at specific pressure levels, causing the film to change color. This produces an instant map of pressure variation, similar to a heat map. For a custom size, cut the film with scissors.
Film that includes two sheets must be used together.

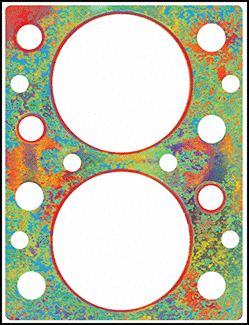

Pressure Variance Analysis Kits—Pressure variance analysis kits include a sheet of pressure film and instructions on how to send your film to the manufacturer for analysis. The manufacturer runs the analysis through specialized software. This software gives you more accurate results than the color correlation manual. Within a few days of sending your sample in, you’ll receive an email with a full report on the force distribution and magnitude.
Color Correlation Manual—Use a color correlation manual (sold separately) with pressure film to determine the magnitude of the pressure measurements. The manual includes best practices and color correlation charts to help you match the colors on your film readout to the correct values.
Color Sample Pack for Film Thickness .004" to .007"—A color sample pack includes one 3" × 4" piece of film in each of these pressure ranges: 28-85, 70-350, 350-1,400, 1,400-7,100, and 7,100-18,500 psi.
