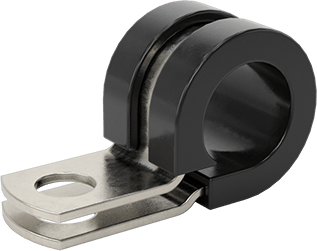

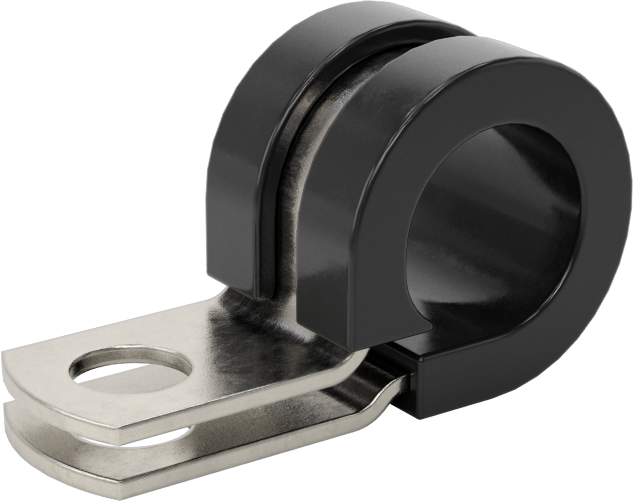

Snug-Fit Vibration-Damping Loop Clamp
321 Stainless Steel with Neoprene Cushion, 3/8" ID
Material | 321 Stainless Steel |
Cushion Material | Neoprene |
ID | 3/8", 10 mm |
Cushion Color | Black |
Center-to-Center Length | 9/16" |
Length | 1 1/8" |
Width | 3/8" |
Height | 5/8" |
Thickness | 1/32" |
Mounting | |
Fasteners Included | No |
Hole Diameter | 13/64" |
Temperature Range | -40° F to 210° F |
For Use Outdoors | Yes |
Military Specification | MS21919 |
For Copper Tube Size | 1/4 |
For Number of Lines | 1 |
Mount Type | Screw On |
Number of Mounting Points | 1 |
Performance | Chemical Resistant, Corrosion Resistant, Snug Fit, Vibration Damping |
Weight Capacity | Not Rated |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
A molded cushion reduces vibration and wear from clamp edges, plus provides a tighter fit around material than standard vibration-damping loop clamps. Clamps surround lines completely while holding them close to the mounting surface.
321 Stainless Steel—321 stainless steel clamps have excellent corrosion resistance.
Neoprene Cushion—Neoprene cushions are for use in environments where clamps are exposed to oil and ozone.

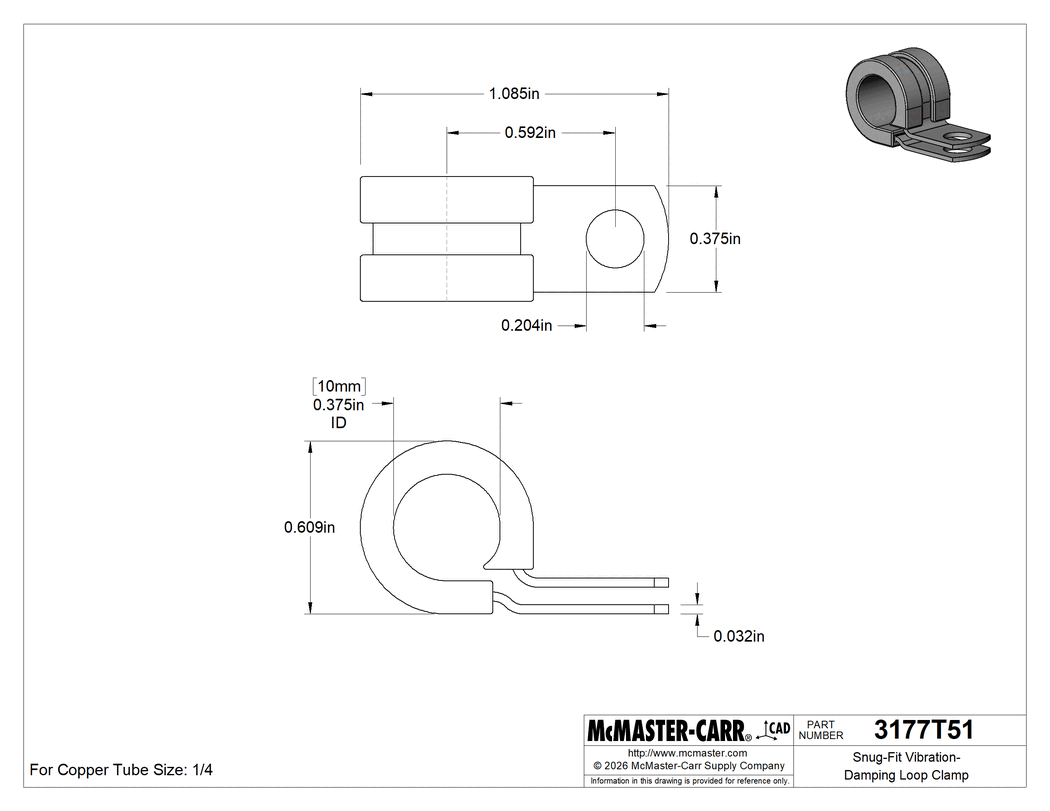

The information in this 3-D model is provided for reference only.
