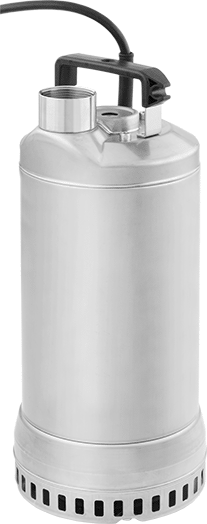

Ultra-High-Flow Dewatering Pump
without Switch, 240V AC, 1 hp
Voltage | 240V AC |
Electrical Phase | Single |
Thermal Protection | With Thermal Overload Protection |
NEMA Type | 6-15 |
Electrical Connection Type | Plug In |
Cord Length | 30 ft. |
Maximum Flow Rate | |
@ 20 Feet of Head | 82 gpm |
@ 30 Feet of Head | 61 gpm |
Maximum Feet of Head | 52 ft. |
Maximum Solids Diameter | 3/8" |
Removes Water Down To | 4" |
Temperature Range | 35° F to 120° F |
Power | 1 hp |
Current | 6.3 amp |
Discharge | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1 1/2 |
Thread Type | NPT |
Gender | Female |
Overall | |
Height | 16" |
Width | 7" |
Length | 7" |
Duty Cycle | Intermittent |
Electrical | |
Connection | Straight Blade |
Number of Blades | 3 |
For Use With | Water |
Frequency | 60 Hz |
Housing Material | 304 Stainless Steel |
Intake Connection Port | Inlet |
Intake Inlet Type | Screened |
Intake Type | Screened |
On/Off Time | 1 Hour On, 30 Minutes Off When Partially Submerged; Continuous When Completely Submerged |
Performance | Ultra High Flow |
Power Source | Electric |
Priming Type | Gravity Fed |
Pump Activation Type | Plug In |
Pump Type | Dewatering, Wastewater |
Country of Origin | Italy |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 841370.2004 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Move higher volumes of water than with other high-flow dewatering pumps. These pumps activate when plugged in. You can add a plug-in switch to control when the pump activates. A top-discharge design routes water through the pump to cool the motor. Install in water that’s at least 10" deep. Pumps are gravity fed and require an elevated liquid source to fully fill the pump before turning on. Do not run dry.
