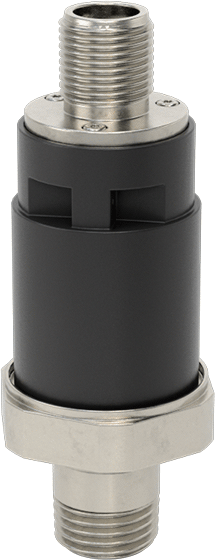

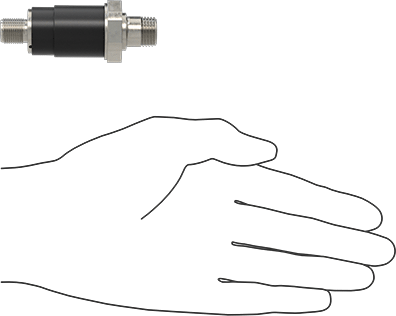

Pressure Transmitter

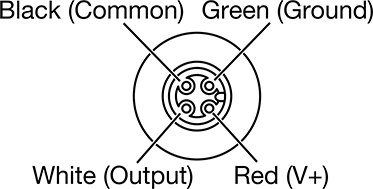

4-20mA Output, 4-Pole Micro M12 Plug, 0-50 PSI
Output Current | 4 mA to 20 mA |
Number of Poles | 4 |
Electrical Connection | M12 |
Electrical Connection Type | Plug In |
Pipe Size | 1/4 |
Thread Type | NPT |
Gender | Male |
Fitting Connection | Threaded |
Connects To | Pipe |
Pressure Range | 0 psi to 50 psi |
Maximum Continuous Pressure | 50 psi |
Maximum Short-Term Pressure | 100 psi |
Input Voltage | 9V DC to 36V DC |

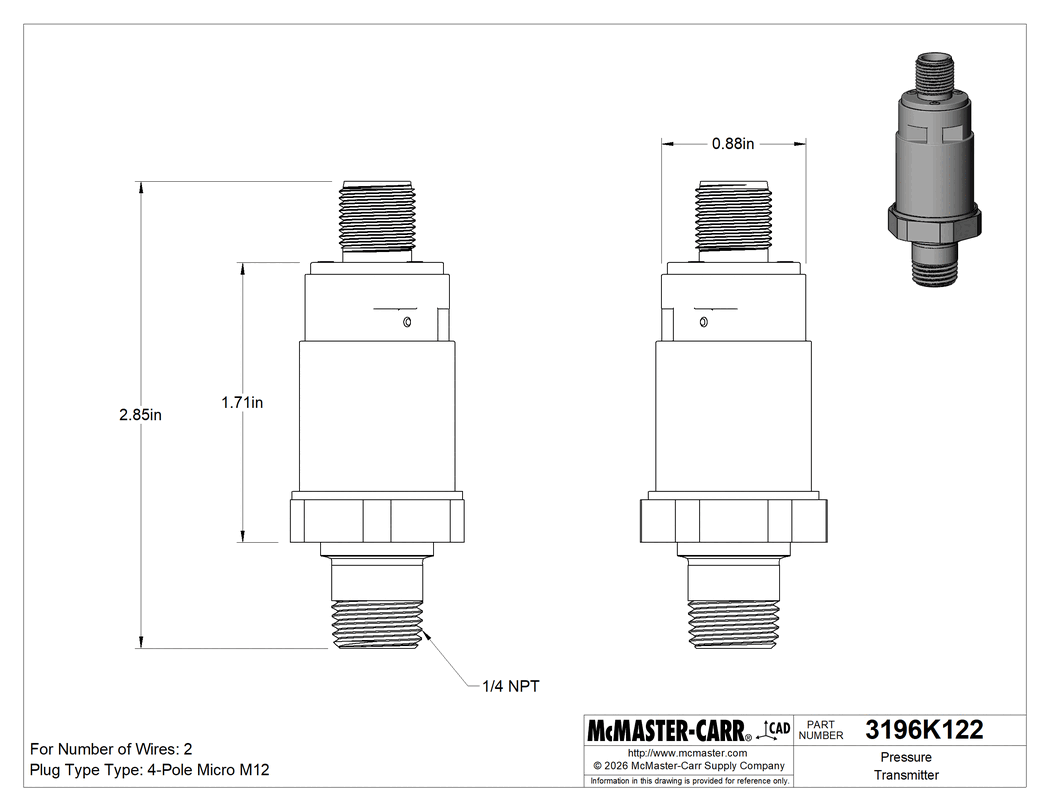

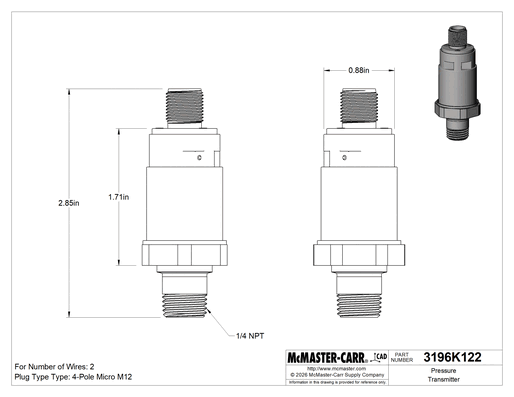

Height | 1 11/16" |
Width | 15/16" |
Enclosure Rating | IP67, NEMA 4X |
Certification | UL Recognized Component, C-UL Recognized Component, CE Marked |
For Use With | Air |
Accuracy | ±1.0% |
Housing Material | Glass-Filled Nylon |
Connection Material | 304 Stainless Steel |
Temperature Range | -40° F to 255° F |
Environment | Corrosive, Dusty, Outdoor, Submersible, Washdown, Wet |
For Number of Wires | 2 |
Measurement Unit | Pounds per Square Inch |
Measures | Pressure |
Response Time | 0.001 sec. |
UL File Number | E363562 |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 902620.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Remotely monitor pressure in general purpose applications such as pumping and compressing systems. These transmitters, also known as transducers, convert pressure to an electrical signal that can be interpreted by receiving devices, such as remote displays, programmable logic controllers, and motor speed controls. For your receiving device to interpret the signal from the transmitter, you will need to calibrate it for the transmitter's pressure range and output signal. As pressure increases, the output signal from the transmitter will increase. Transmitters will only provide accurate readings within the rated pressure range.
Transmitters are rated NEMA 4X and IP65 or IP67 and are good for washdown and corrosive environments.
4 mA to 20 mA Output Current—Transmitters with output current connect using two wires. The same wire is used to send a signal to the receiver and to power the transmitter. Current doesn’t lose signal over long distances and isn’t affected by electrical interference from other devices.
M12 Connection—Transmitters with a M12 plug connection are compatible with M12 connectors.
