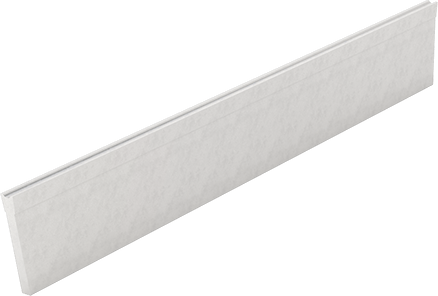

Chip-Breaking Cutoff Blade
3/32" Wide, 11/16" High, High-Speed Steel

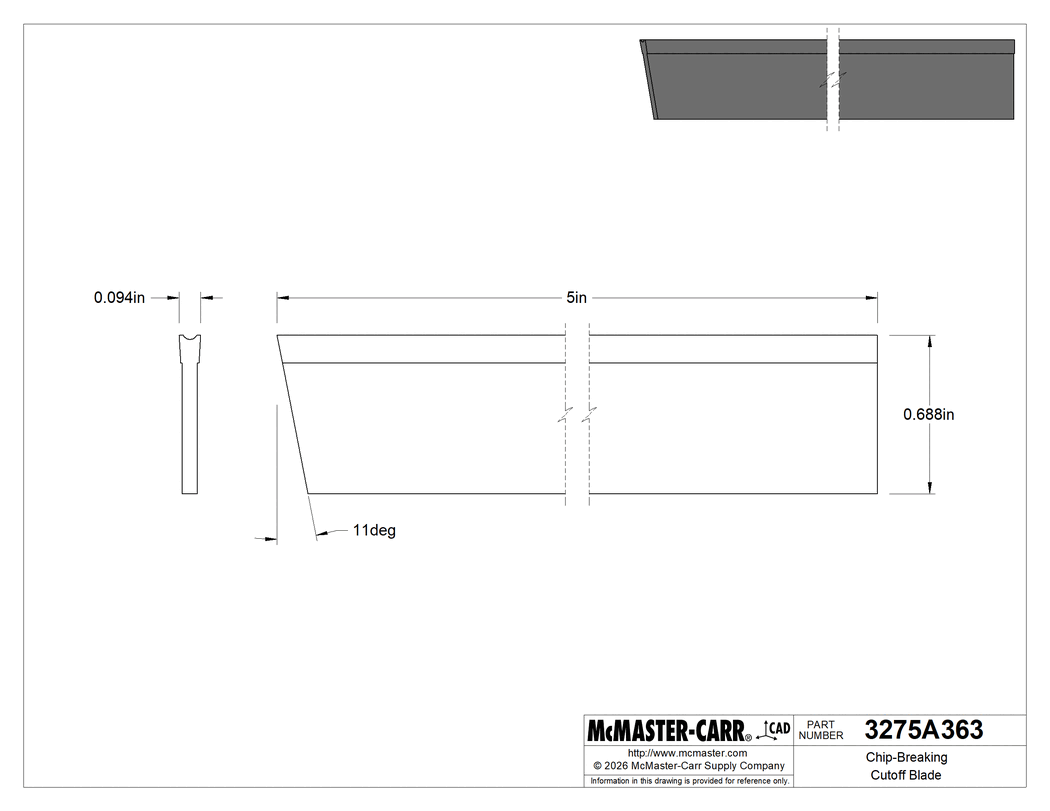

2-D PDF
0000000 each
3275A363
In stock
3275A363
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Material | High-Speed Steel |
GS2 | Bevel End × Square End |
Cutting Direction | Neutral |
Width | 3/32" |
Height | 11/16" |
Length | 5" |
Bevel Angle | 11° |
For Use On | Aluminum, Brass, Bronze, Cast Iron, Nickel, Plastic, Stainless Steel, Steel, Titanium |
Cut Type | Cutoff |
Performance | Chip Clearing |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820810.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
A thinner cutting edge and thicker top edge give these blades a T-shape profile that moves chips away from the cut and reduces friction for fast cutting. Also known as parting blades, use these to separate a finished part from the workpiece. They are compatible with Cutoff Blade Holders for Quick-Change Lathe Tool Posts.
High-Speed Steel—Made of high-speed steel, they have excellent wear and heat resistance.
The information in this 3-D model is provided for reference only.
