    Strut Channel Bracket

    Elbow, Zinc-Plated Steel, 3-1/2" Long

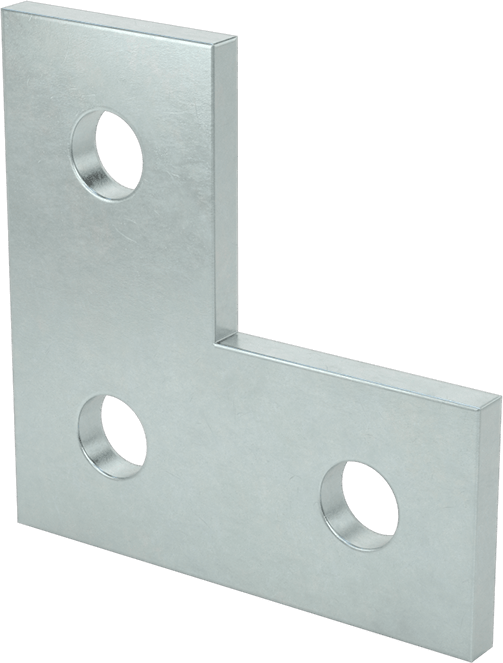

    Image of Product. Front orientation. Strut Channel Bracket, Elbow, Zinc-Plated Steel, 3-1/2" Long.

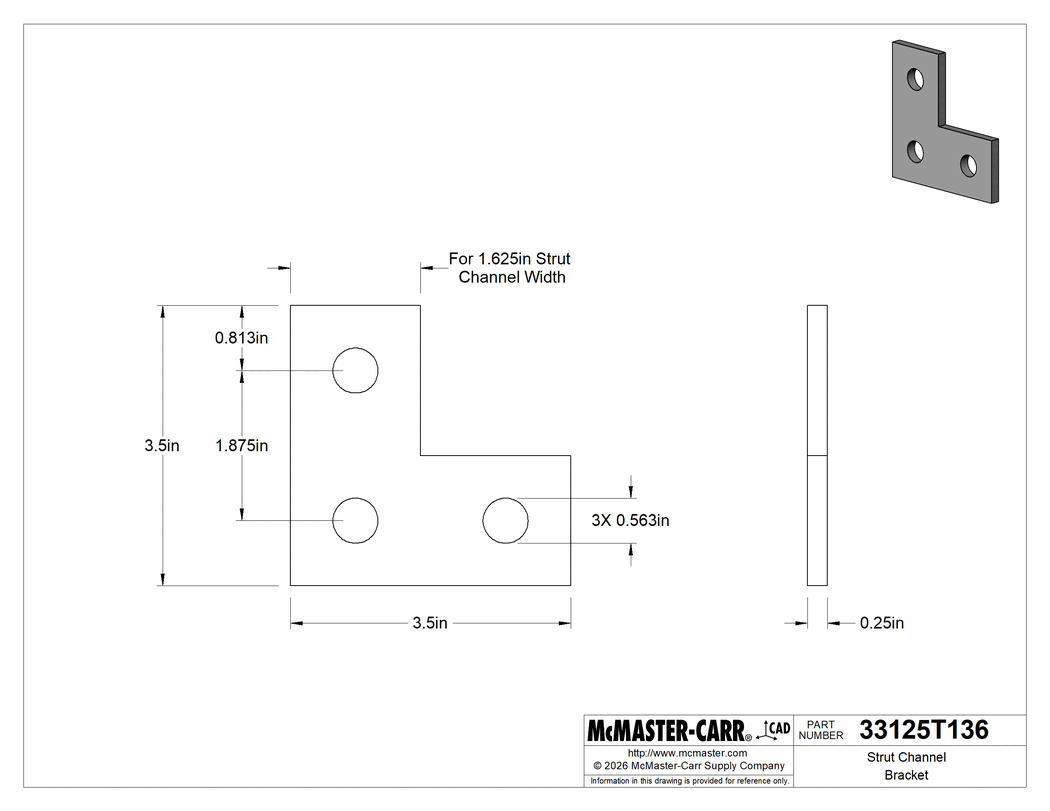

    Technical Drawing of Strut Channel Bracket, Elbow, Zinc-Plated Steel, 3-1/2" Long.

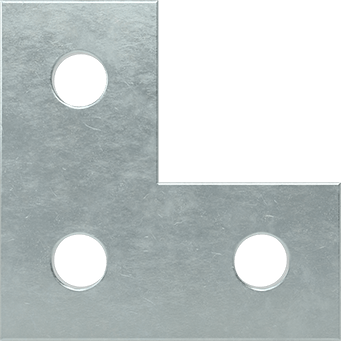

    Image of Product. Front orientation. Strut Channel Bracket, Elbow, Zinc-Plated Steel, 3-1/2" Long.
    Image of ProductInUse. Front orientation. Contains Annotated. Strut Channel Bracket, Elbow, Zinc-Plated Steel, 3-1/2" Long.
    Image of Product. Side1 orientation. Contains SizingReference. Strut Channel Bracket, Elbow, Zinc-Plated Steel, 3-1/2" Long.
    2-D PDF
    00000 each
    33125T136
    In stock
    33125T136
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Bracket Type

    Surface

    Framing Type

    Strut Channel

    Strut Channel Framing Component

    Bracket

    For Channel Width

    1 5/8"

    Material

    Zinc-Plated Steel

    Shape

    Elbow

    Length

    (A)

    3 1/2"

    (B)

    3 1/2"

    Thickness

    1/4"

    Hole Diameter

    9/16"

    Fasteners Included

    No

    For Strut Channel Type

    Standard, Stacked, Low Profile, High Profile

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    730120.1000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    The simplest type of strut channel bracket, they're also the easiest to install and reconfigure. However, the connections are not as strong as corner brackets.

    Zinc-Plated Steel—Strong and durable with a zinc plating that protects from occasional exposure to moisture.

    Compatible Products for This Strut Channel Bracket
    Mount

    Strut Channels

    21 products

    Fasten

    Strut Channel Nuts

    13 products

    Support load

    Strut Channel Washers

    6 products
