Horizontal-Surface-Mount Tubular Level
2-3/16" Long
Mounting Profile | Surface |
Mount Type | Screw On |
Mounting Surface Orientation | Horizontal |
Length | 2 3/16" |
Width | 5/8" |
Height | 5/8" |
Sensitivity | 0.133"/1 ft., 38 min/0.1" |
Number of Horizontal Vials | 1 |
Vial Material | Plastic |
Housing | |
Material | Plastic |
Color | Clear |
Mounting Holes | |
Number of | 2 |
Diameter | 0.165" |

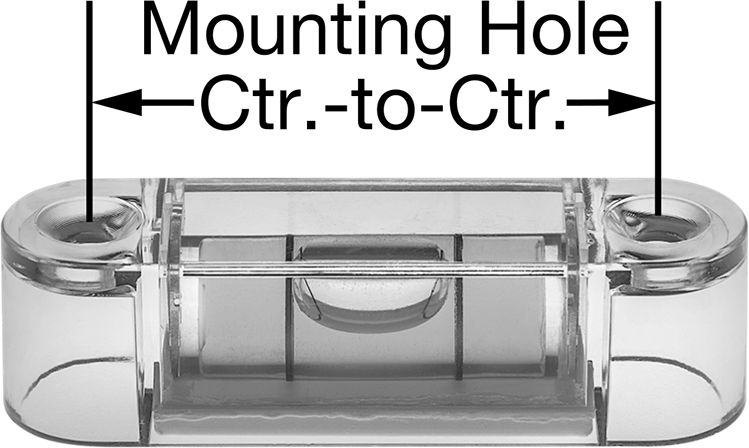

Center-to-Center | 1 11/16" |
Mounting Fasteners Included | No |
Performance | Mountable |
Shape | Straight |
System of Measurement | Inch |
Working Orientation | Horizontal |
Country of Origin | United Kingdom |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 903180.8080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Mount these levels to carts, equipment, and machinery to check for level continuously. Use them to keep surfaces aligned over time and prevent disassembly, leaks, or other issues that could cause expensive downtime.
Screw-On Levels—Fasten these levels to any drillable surface for the most secure mount that won't shake loose, even on vibrating equipment. Fasteners are not included.
Horizontal Surface Mount—Mount these levels to a table or other horizontal surface, and they will indicate when you're level on the horizontal plane.
Plastic Housing—While not as durable as aluminum levels, these are a lightweight and economical option.

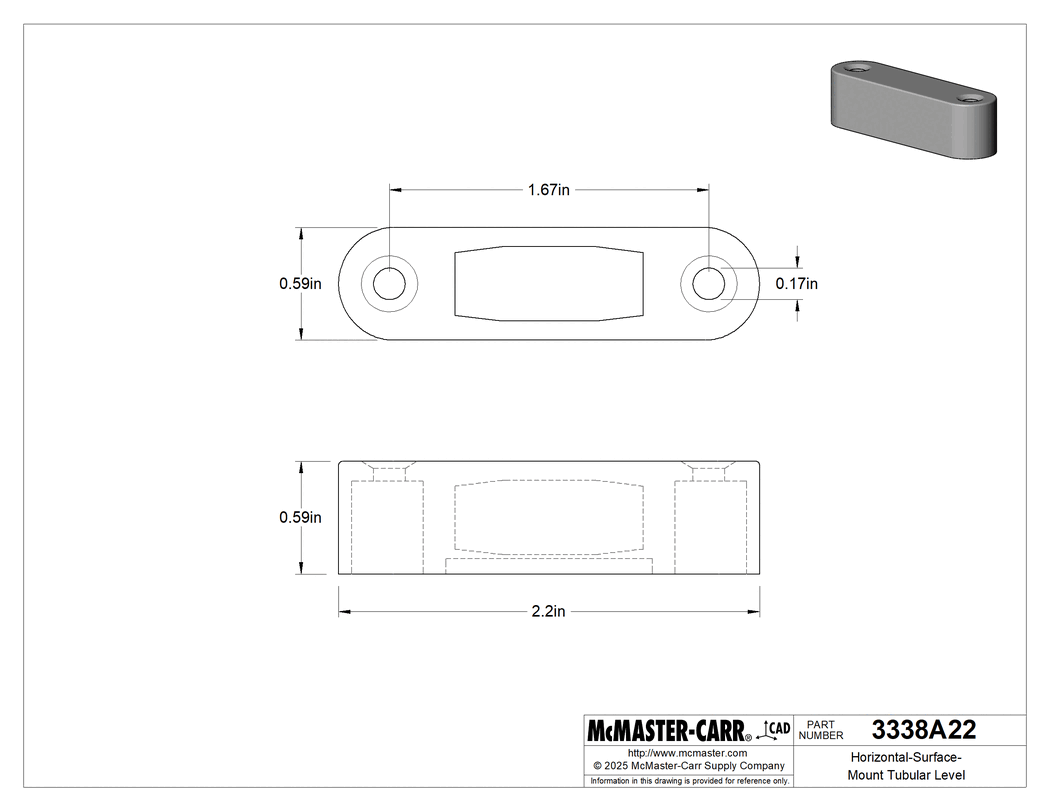

The information in this 3-D model is provided for reference only.
