    Ultra-Chemical-Resistant High-Strength PTFE Gasket

    for 1 Pipe Size, ANSI Class 150

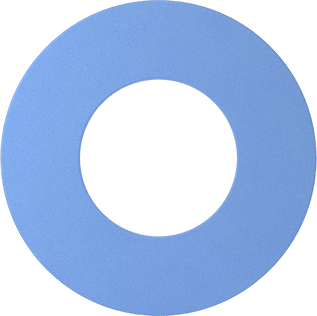

    Image of Product. Front orientation. Ultra-Chemical-Resistant High-Strength PTFE Gasket, for 1 Pipe Size, ANSI Class 150.

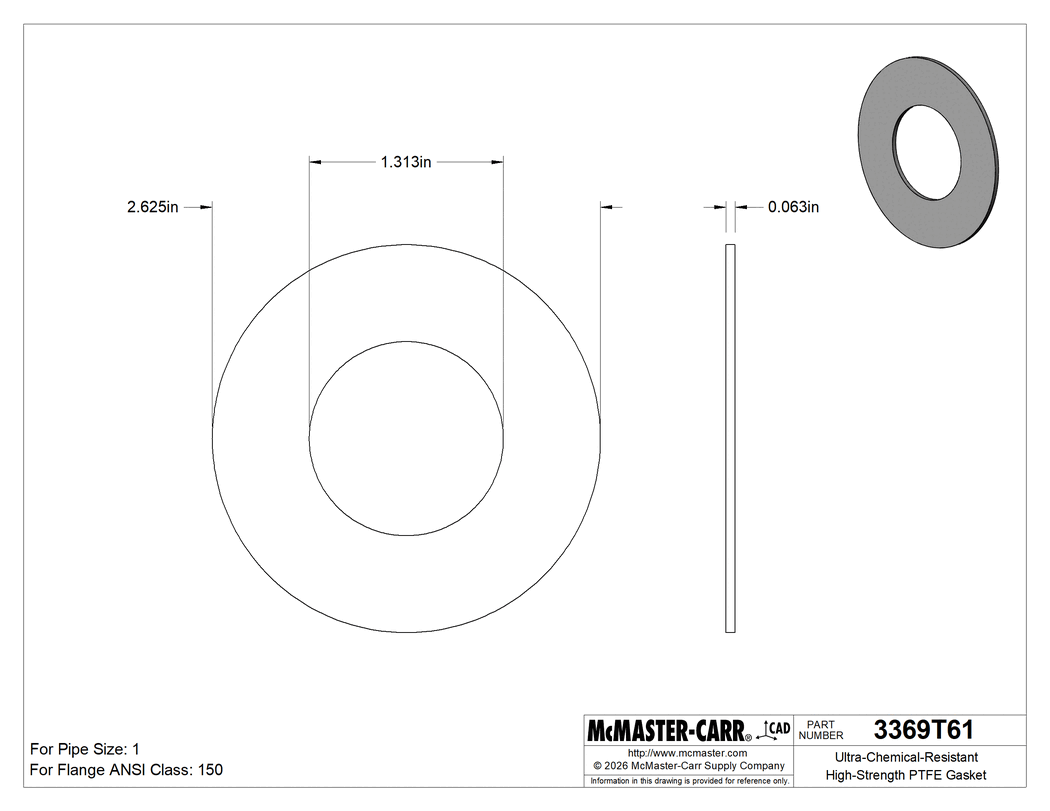

    Technical Drawing of Ultra-Chemical-Resistant High-Strength PTFE Gasket, for 1 Pipe Size, ANSI Class 150.

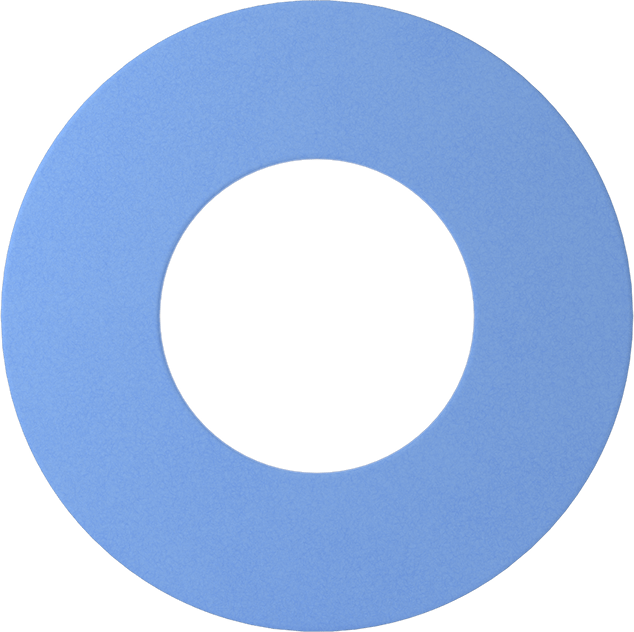

    Image of Product. Front orientation. Ultra-Chemical-Resistant High-Strength PTFE Gasket, for 1 Pipe Size, ANSI Class 150.

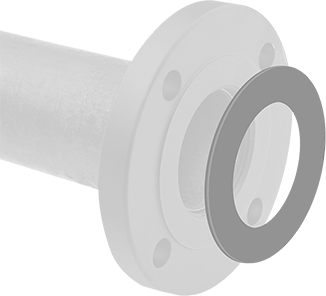

    Image of ProductInUse. Front orientation. Ultra-Chemical-Resistant High-Strength PTFE Gasket, for 1 Pipe Size, ANSI Class 150.
    Image of Product. Side1 orientation. Contains SizingReference. Ultra-Chemical-Resistant High-Strength PTFE Gasket, for 1 Pipe Size, ANSI Class 150.
    2-D PDF
    00000 each
    3369T61
    In stock
    3369T61
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Backing Type

    Plain

    For Flange Standard

    ANSI

    For Flange ANSI Class

    150

    Thickness

    1/16"

    For Pipe Size

    1

    ID

    1 5/16"

    OD

    2 5/8"

    Maximum Pressure

    800 psi

    Temperature Range

    -450° F to 500° F

    Hardness

    Not Rated

    Color

    Blue

    Filler Material

    Fiberglass

    Material

    PTFE

    Performance

    High Strength, Ultra Chemical Resistant

    Shape

    Ring

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392690.4500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Reinforced with fiberglass filler for strength, these PTFE gaskets won’t thin out when compressed. They resist hydrocarbons, solvents, refrigerants, and moderate concentrations of acids. Also known as ring gaskets, use them with raised-surface pipe flanges; they fit the surface inside the bolt holes and do not interfere with the bolt connection. All gaskets are compatible with low-pressure pipe flanges and are sized to meet ANSI standards.

    The information in this 3-D model is provided for reference only.
