    Ultra-Chemical-Resistant High-Strength PTFE Gasket

    with Bolt Holes, for 2-1/2 Pipe Size, ANSI Class 150

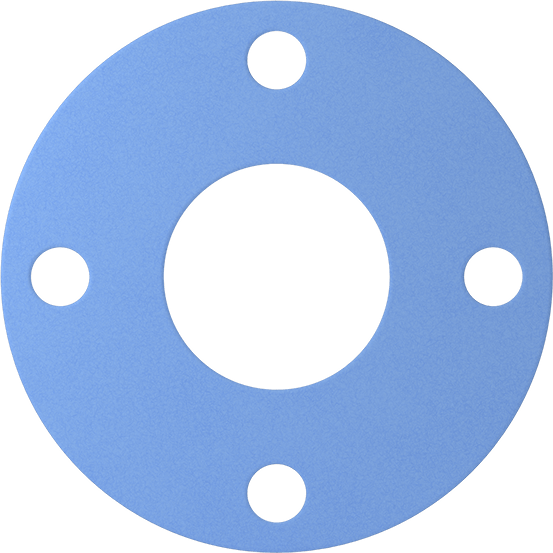

    Image of Product. Front orientation. Ultra-Chemical-Resistant High-Strength PTFE Gasket, with Bolt Holes, for 2-1/2 Pipe Size, ANSI Class 150.

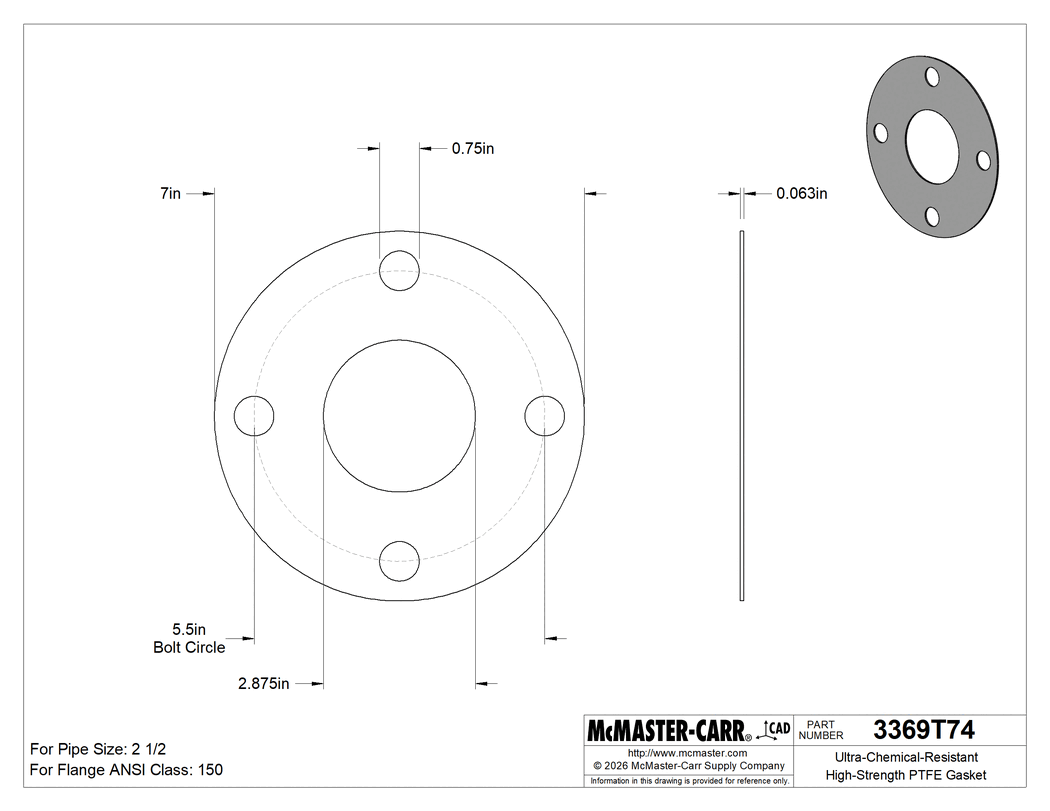

    Technical Drawing of Ultra-Chemical-Resistant High-Strength PTFE Gasket, with Bolt Holes, for 2-1/2 Pipe Size, ANSI Class 150.

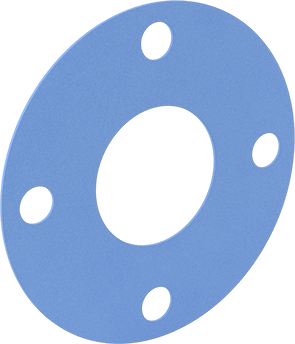

    Image of Product. Front orientation. Ultra-Chemical-Resistant High-Strength PTFE Gasket, with Bolt Holes, for 2-1/2 Pipe Size, ANSI Class 150.
    Image of ProductInUse. Front orientation. Ultra-Chemical-Resistant High-Strength PTFE Gasket, with Bolt Holes, for 2-1/2 Pipe Size, ANSI Class 150.

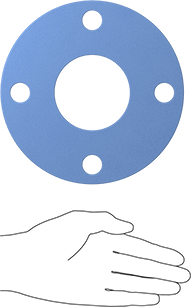

    Image of Product. Side1 orientation. Contains SizingReference. Ultra-Chemical-Resistant High-Strength PTFE Gasket, with Bolt Holes, for 2-1/2 Pipe Size, ANSI Class 150.
    2-D PDF
    000000 each
    3369T74
    In stock
    3369T74
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Backing Type

    Plain

    For Flange Standard

    ANSI

    For Flange ANSI Class

    150

    Thickness

    1/16"

    For Pipe Size

    2 1/2

    ID

    2 7/8"

    OD

    7"

    Number of Bolt Holes

    4

    Maximum Pressure

    800 psi

    Temperature Range

    -450° F to 500° F

    Hardness

    Not Rated

    Color

    Blue

    Filler Material

    Fiberglass

    Material

    PTFE

    Performance

    High Strength, Ultra Chemical Resistant

    Shape

    Ring with Bolt Holes

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392690.4500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    A fiberglass filler in these PTFE gaskets provides strength to prevent them from thinning out when compressed. They resist hydrocarbons, solvents, refrigerants, and moderate concentrations of acids. Commonly called full-face gaskets, they cover the entire face of flat-surface pipe flanges and align with the bolt holes. All gasket specifications are sized to meet ANSI standards.

    For ANSI Class 150—Gaskets for ANSI Class 150 flanges are compatible with low-pressure pipe flanges.
