    High-Speed Shaft-Mount Track Roller

    without Seal, 2" Roller Diameter, 1" Roller Width

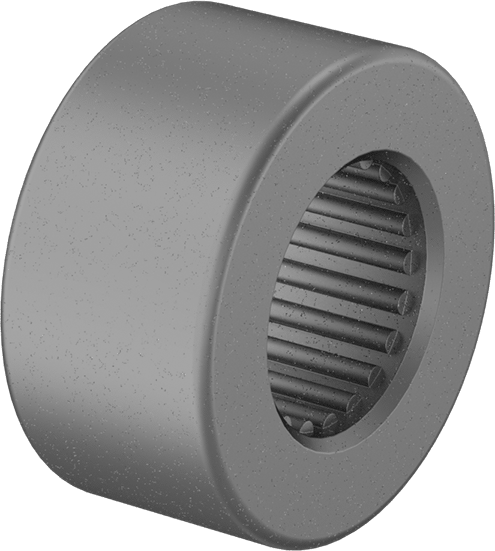

    Image of Product. Front orientation. High-Speed Shaft-Mount Track Roller, without Seal, 2" Roller Diameter, 1" Roller Width .

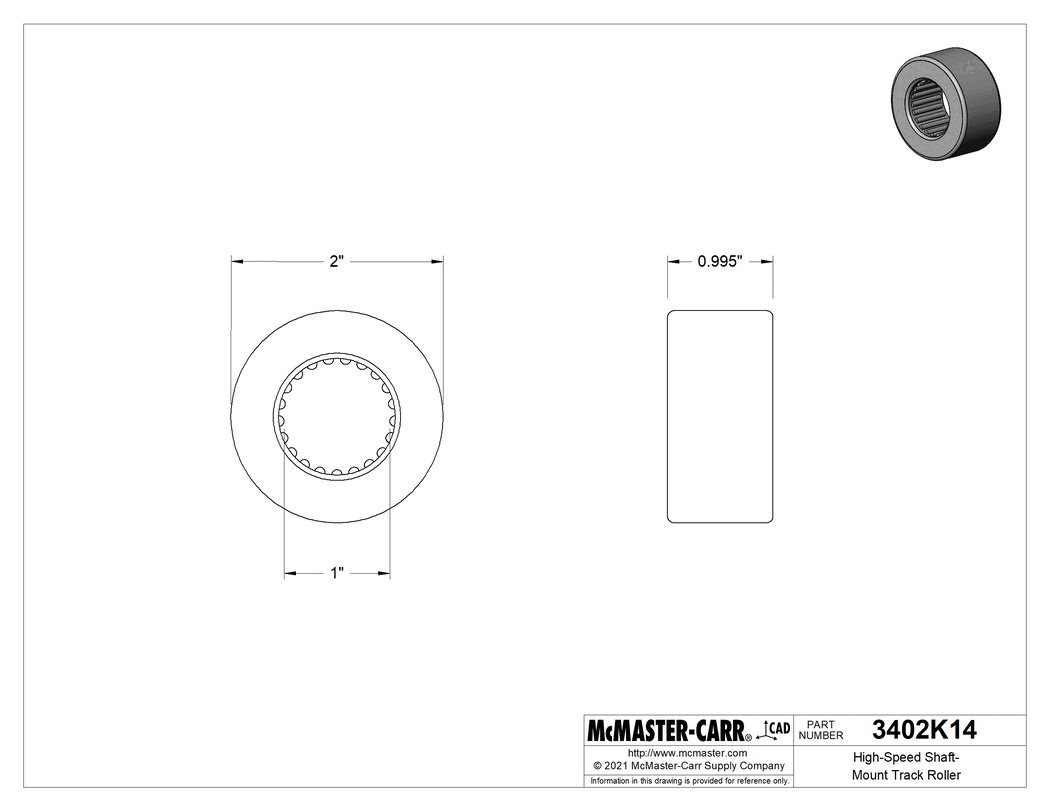

    Technical Drawing of High-Speed Shaft-Mount Track Roller, without Seal, 2" Roller Diameter, 1" Roller Width .
    2-D PDF
    000000 each
    3402K14
    In stock
    3402K14
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Roller Material

    Steel

    Roller Profile

    Flat

    With Seal

    No

    Roller

    Diameter

    2"

    Width

    1"

    For Shaft Diameter

    1"

    Overall Width

    1"

    Maximum Rotation Speed

    5,000 rpm

    Load Capacity

    Static Radial

    11,000 lb.

    Dynamic Radial

    6,200 lb.

    Maximum Temperature

    250° F

    Roller Bearing Type

    Needle

    ID

    1"

    ID Tolerance

    1" to 1.001"

    For Load Direction

    Radial

    Guide Roller Type

    Track

    Lubrication

    Required

    Performance

    High Speed

    Roller Mount Type

    Shaft Mount

    Shaft Mount Type

    Press Fit

    Track Roller Type

    Round

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848240.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    The outer ring is built to handle higher speeds than standard shaft-mount track rollers. Also known as yoke-style cam followers, these rollers have more mounting flexibility than threaded track rollers. They're typically mounted onto a shaft or clevis rod end.

    The information in this 3-D model is provided for reference only.
