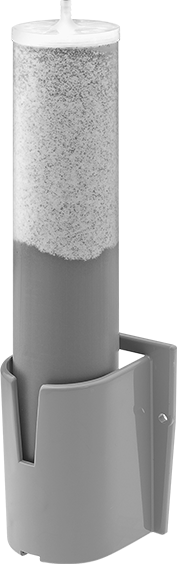

Disposable Water Deionizer
50000 Ohms Water Resistivity
2-D PDF
0000000 each
3535K65
In stock
3535K65
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Housing | |
Clarity | Clear |
Color | Clear |
Material | Polypropylene |
Connection | |
Connects To | Tube |
For Tube ID | 3/8" |
Fitting Connection | Barbed |
Gender | Male |
Cartridge | |
OD | 3 3/8" |
Height | 19" |
Maximum Flow Rate | 0.35 gpm |
Maximum Pressure | Not Rated |
Maximum Temperature | 120° F |
Water Electrical Resistance | 50,000 ohm |
Overall | |
Diameter | 3 3/8" |
Height | 19" |
Cartridge Included | Yes |
For Reducing | Calcium, Magnesium, Sodium Chloride |
For Use With | Water |
Performance | Disposable |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 842121.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
Designed for use in low-flow applications without back pressure, this deionizer has barbs on each end for connecting to tubing. It is clear so you can monitor debris collecting in the cartridge without stopping flow; replace the cartridge when the media changes color. Deionizers with higher water electrical resistance produce a better quality of water.

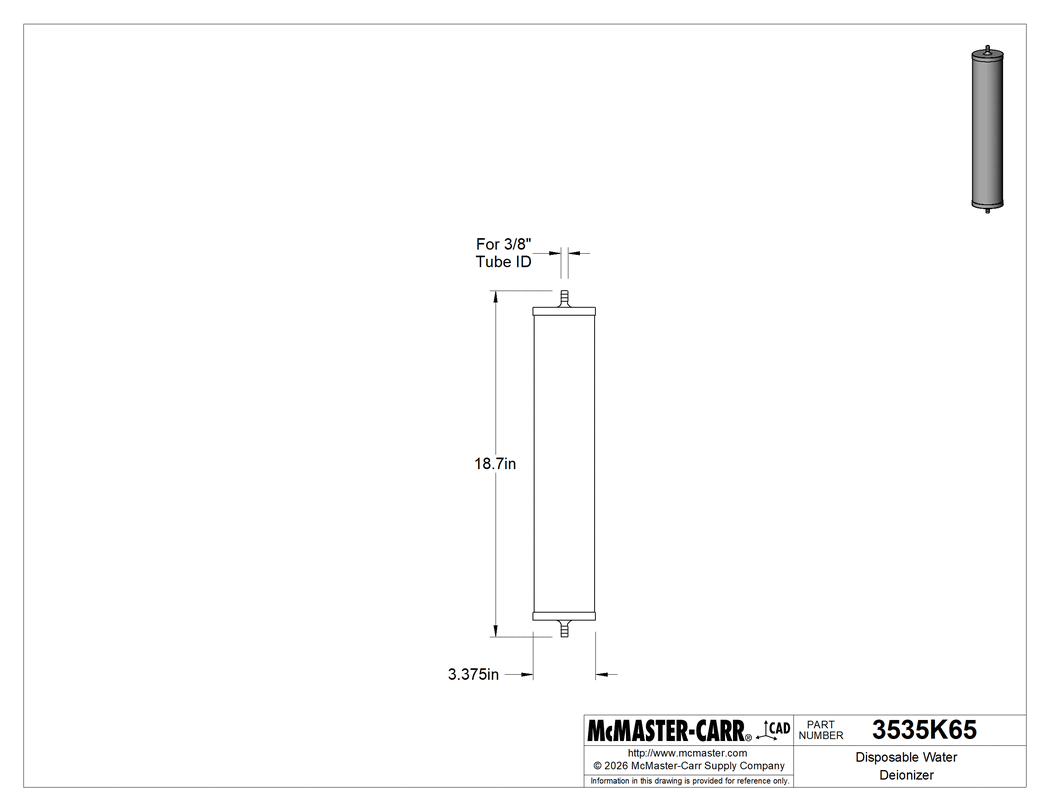

The information in this 3-D model is provided for reference only.
