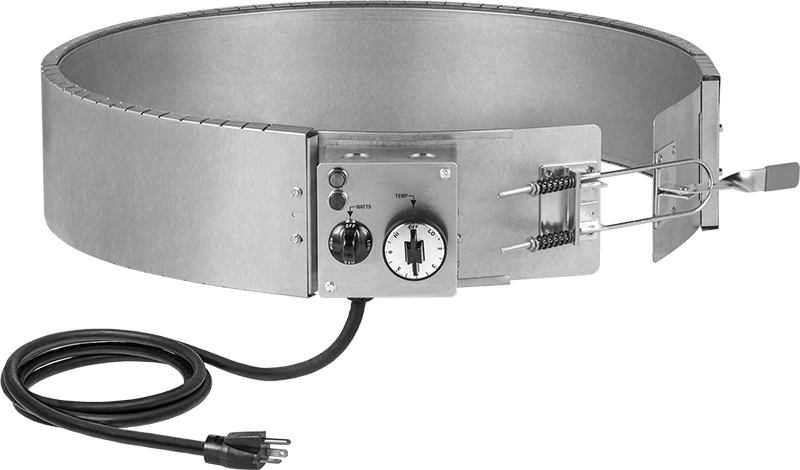

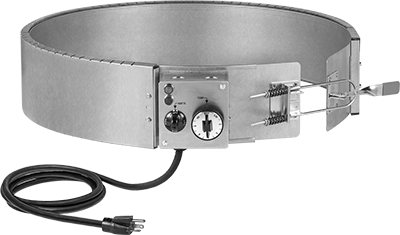

Heavy Duty Wraparound Heater with Time-Cycle Control
for 55 Gallon Container, 1750W
Temperature Control | |
Type | Time-Cycle Controller |
Method | Dial |
Number of Output Settings | 3 |
Maximum Heat Output | 500° F |
For Container | |
Capacity | 55 gal. |
Diameter | 22 1/2" |
Overall | |
Length | 67 5/8" |
Width | 5" |
Wattage | 1,750 W |
Watt Density | 1.68 W/in² |
Voltage | 120V AC |
Electrical Phase | Single |
Current | 14.6 amp |
Thickness | 11/16" |
NEMA Type | 5-20 |
For Surface Material | Metal |
Material | Aluminized Steel |
Closure Method | Spring-Loaded Clamp |
Bend Radius | 11 1/4" |
Certification | CSA Certified, UL Listed |
Cord Length | 6 ft. |
Electrical | |
Number of Blades | 3 |
Connection | Straight Blade |
Electrical Connection Type | Plug In |
Environment Temperature | -25° F to 225° F |
Heater Type | Band |
Mount Type | Wraparound |
Power Source | Electric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 851440.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

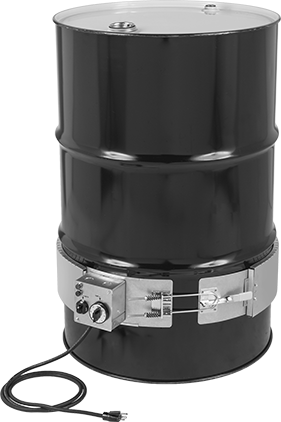

For applications requiring high heat over long periods of time, these aluminized steel heaters warm up faster and are more durable than silicone rubber heaters. They wrap around containers to heat contents without direct contact. Heaters should be positioned at the base of the pail or drum. The spring-loaded clamp closure allows heaters to expand to fit around slightly larger container diameters. Heaters are not for use with flammable materials or in hazardous areas.
Time-Cycle Temperature Controller—Time-cycle controllers constantly cycle on and off to maintain your set temperature with less fluctuation than thermostats. Turn the dial to adjust the ratio of on to off time. Controllers require a thermometer (sold separately) for calibration and temperature monitoring.
3 Output Settings—Heaters with three output settings have a dial to select low, medium, or high watt density.
