Liquid-Level Indicator with Shutoff Valve
Bronze, 1/2 NPT Male, Automatic Shutoff
Material | Bronze |
Pipe Size | 1/2 |
Thread Type | NPT |
Gender | Male |
Features | Automatic Shutoff, Needle Stem |

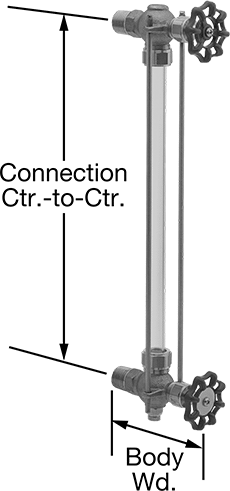

Connection Center-to-Center | 13 1/4" |
Overall Height | 15 5/8" |
Window Height | 9" |
Body Width | 3 15/16" |
Drain Cock Diameter | 1/4" |
Maximum Pressure @ Temperature | 400 psi @ 70° F |
Maximum Steam Pressure @ Temperature | 200 psi @ 400° F |
Temperature Range | 35° F to 400° F |
For Use With | Hydraulic Fluid, Salt Water, Steam, Water |
Number of Guard Rods | 2 |
For Gauge Glass Length | 12" |
Ball Check Material | Bronze |
Connects To | Pipe |
Drain Valve Material | Bronze |
Fitting Connection | Threaded |
Gasket Material | PTFE |
Mount Type | Screw In |
Shape | Straight |
Stem Packing Material | PTFE |
Window Material | Glass |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 902610.7000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Shut-off valves stop flow so you can clean and replace gauge glass without removing these indicators from your equipment.
Needle Stem—Indicators with needle stem have a stem in the lower shut-off valve to clear the orifice as the valve closes.
Automatic Shutoff—Indicators with automatic shut-off will temporarily close if the gauge glass breaks. The valves must be closed manually for permanent shut-off.

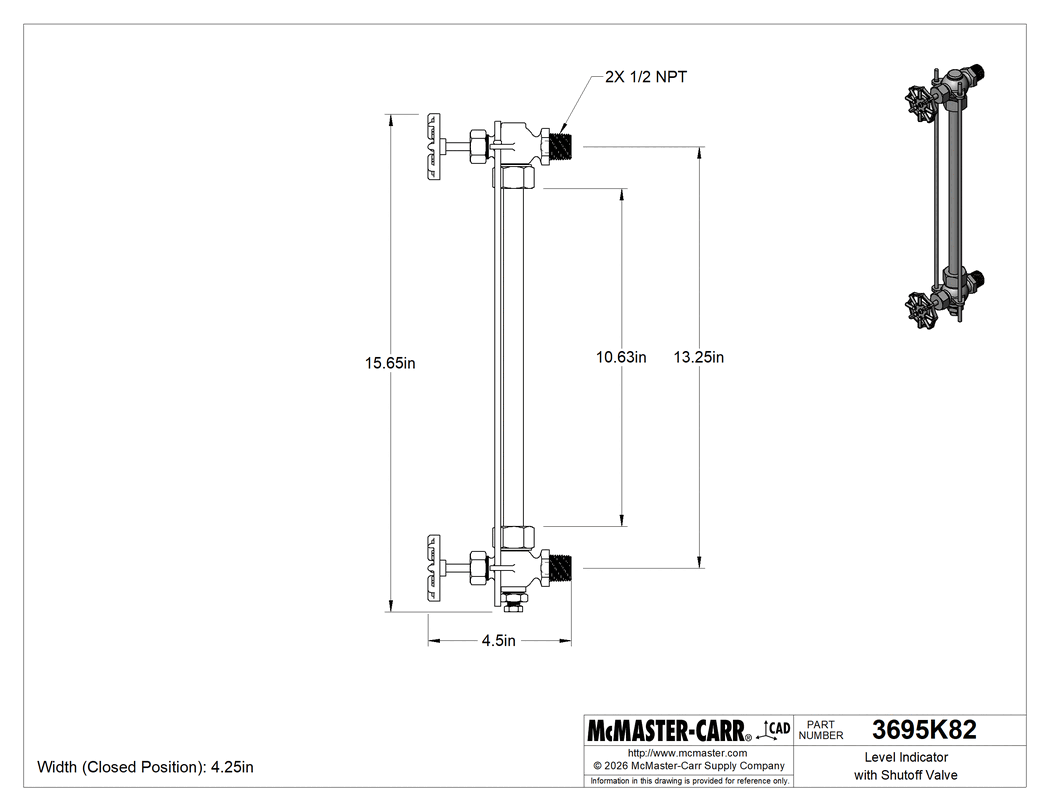

The information in this 3-D model is provided for reference only.
