    High-Strength Carbon Fiber 90 Degree Angle

    Square Inside Corner, 1-1/2" x 1-1/2" Outside, 36" Long

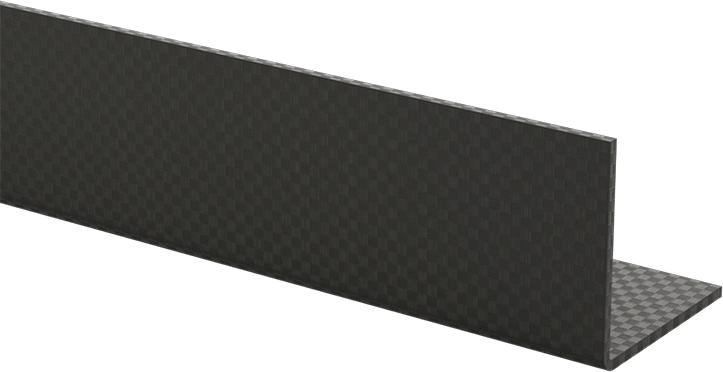

    Image of Product. Front orientation. High-Strength Carbon Fiber 90 Degree Angle, Square Inside Corner, 1-1/2" x 1-1/2" Outside, 36" Long.

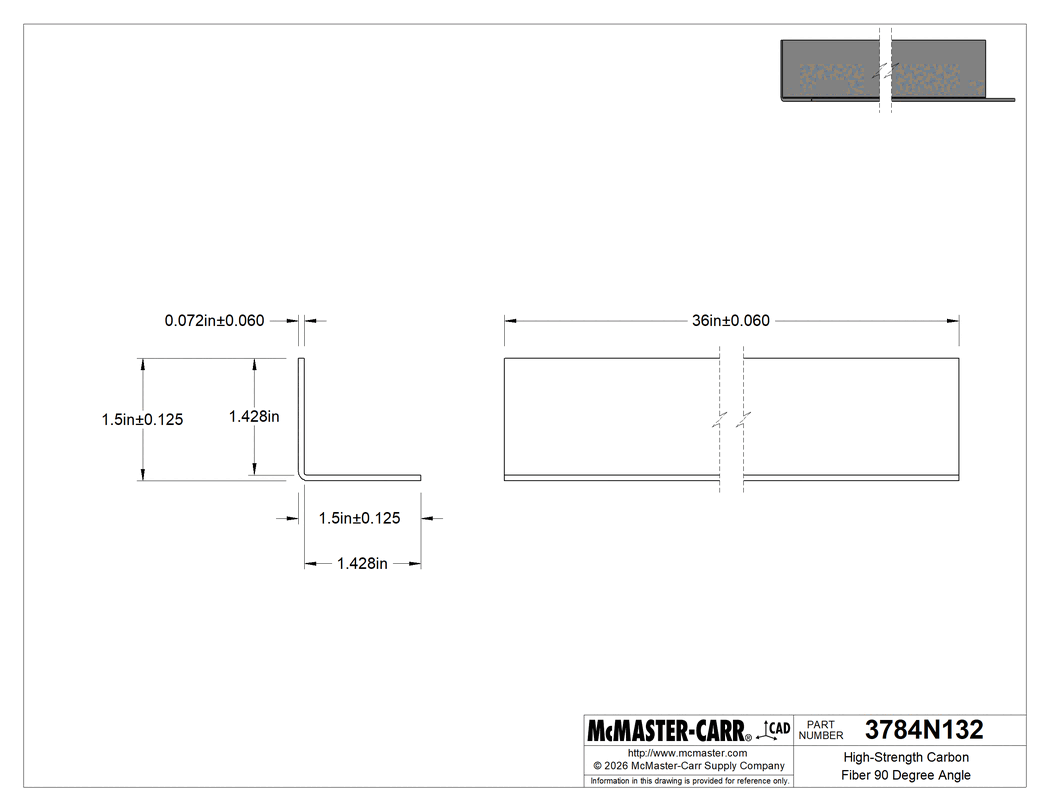

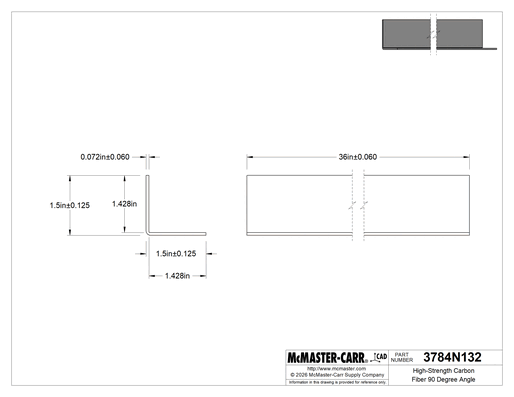

    Technical Drawing of High-Strength Carbon Fiber 90 Degree Angle, Square Inside Corner, 1-1/2" x 1-1/2" Outside, 36" Long.
    Image of Product. Side1 orientation. Contains SizingReference. High-Strength Carbon Fiber 90 Degree Angle, Square Inside Corner, 1-1/2" x 1-1/2" Outside, 36" Long.
    2-D PDF
    0000000 each
    3784N132
    In stock
    3784N132
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Inside

    Width

    1.42"

    Height

    1.42"

    Corner Shape

    Square

    Wall Thickness

    0.08"

    Wall Thickness Tolerance

    -0.06" to 0.06"

    Length

    36"

    Length Tolerance

    -0.06" to 0.06"

    Outside

    Width

    1 1/2"

    Width Tolerance

    -0.125" to 0.125"

    Height

    1 1/2"

    Height Tolerance

    -0.125" to 0.125"

    Corner Shape

    Round

    Color

    Black

    Tensile Strength

    135,000 psi

    Fiber Tensile Stiffness

    33 msi to 36 msi (Standard)

    Temperature

    Minimum

    Not Rated

    Maximum

    250° F

    Impact Strength

    Not Rated

    Hardness

    Not Rated

    Application

    Multipurpose

    Carbon Fiber Construction

    Woven

    Clarity

    Opaque

    Composite Tensile Stiffness

    8.2 msi

    Composite Tensile Stiffness Rating

    Poor

    Compressive Strength

    80,000 psi

    Dielectric Strength

    Not Rated

    Flexibility

    Rigid

    Flexural Strength

    90,000 psi

    Hardness Rating

    Not Rated

    Leg Edge Shape

    Square

    Material

    Carbon Fiber

    Pattern

    Checked

    Shape

    90° Angle

    Density

    0.058 lb/in³

    Performance

    Extreme Strength, High Strength, Lightweight

    Straightness Tolerance

    Not Rated

    Texture

    Smooth

    Warning Message

    Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes.

    Country of Origin

    Mexico, United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    681513.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Lighter than aluminum while remaining rigid, these angles are often used as brackets in structural framing, machinery, and robotics. Known for its use in the aerospace industry, carbon fiber offers a good balance of weight and strength. These angles reduce wear and stress on motorized parts because they are lightweight, extending the life of machinery.

    They are made from layers of woven fabric that prevent fibers from splintering when cut. This checked carbon fiber is easy to machine and has a classic carbon fiber-look.
