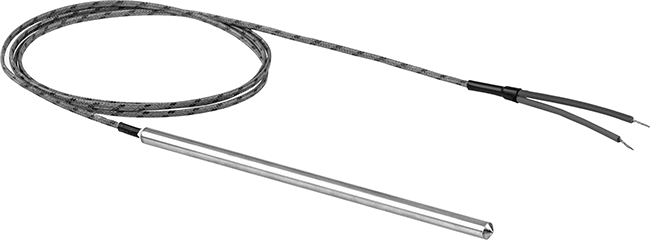

Thermocouple Probe for Liquids and Gases
Noninsulated, Type T, 6" Long x 1/4" Diameter
Component | Probe with Cable |
Probe Material | 304 Stainless Steel |
Thermocouple Type | Type T |
Thermocouple Sensor Connection | Wire Leads |
Probe | |
Length | 6" |
Diameter | 1/4" |
Response Time | Not Rated |
Maximum Temperature | 700° F |
Accuracy @ Temperature | Not Rated Below 32° F |
Insulation | Noninsulated |
Sensor Type | Grounded |
Cable | |
Length | 4 ft. |
Material | Fiberglass |
Maximum Temperature | 900° F |
Style | Straight |
Wire Lead | |
Length | 3" |
American Wire Gauge (AWG) | 20 |
For Use With | Liquids, Solids, Gas |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 902590.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
An economical alternative to insulated thermocouple probes, these probes measure the temperature of liquids and gases. Made of stainless steel, they resist corrosion. The stainless steel also shields the sensor from impact, so you can use them with solids, such as in molds and dies. Because there is no insulation to protect the internal wires, you should not bend these probes. They’re also known as tube-and-wire thermocouples.
To view and store measurements, add a connector to the wire leads and connect these probes to a controller, thermometer, or other temperature-reading device. You can also attach thermocouple wire to the wire leads if you need to extend the probe’s reach. Pick the thermocouple type that best covers the temperature range you expect your liquid, gas, or solid to be. You should also make sure the thermocouple type you choose is compatible with the device you connect it to.
These thermocouples are manufactured to conform to ASTM E230 for accuracy. Accuracy is how far off the reported value is from the actual temperature.
Note: When installing probes with wire leads, the red wire is negative.

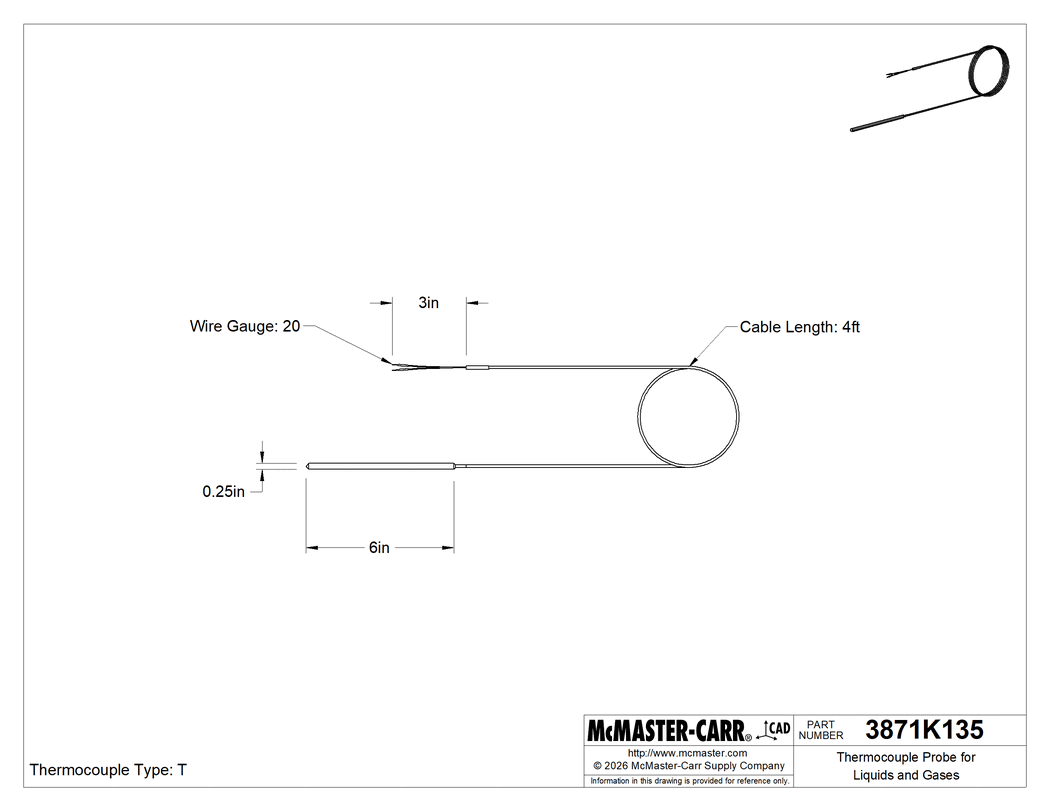

The information in this 3-D model is provided for reference only.
