Horizontal-Mount Liquid-Level Gauge
with Steel Fitting, for 55 Gallon Drum

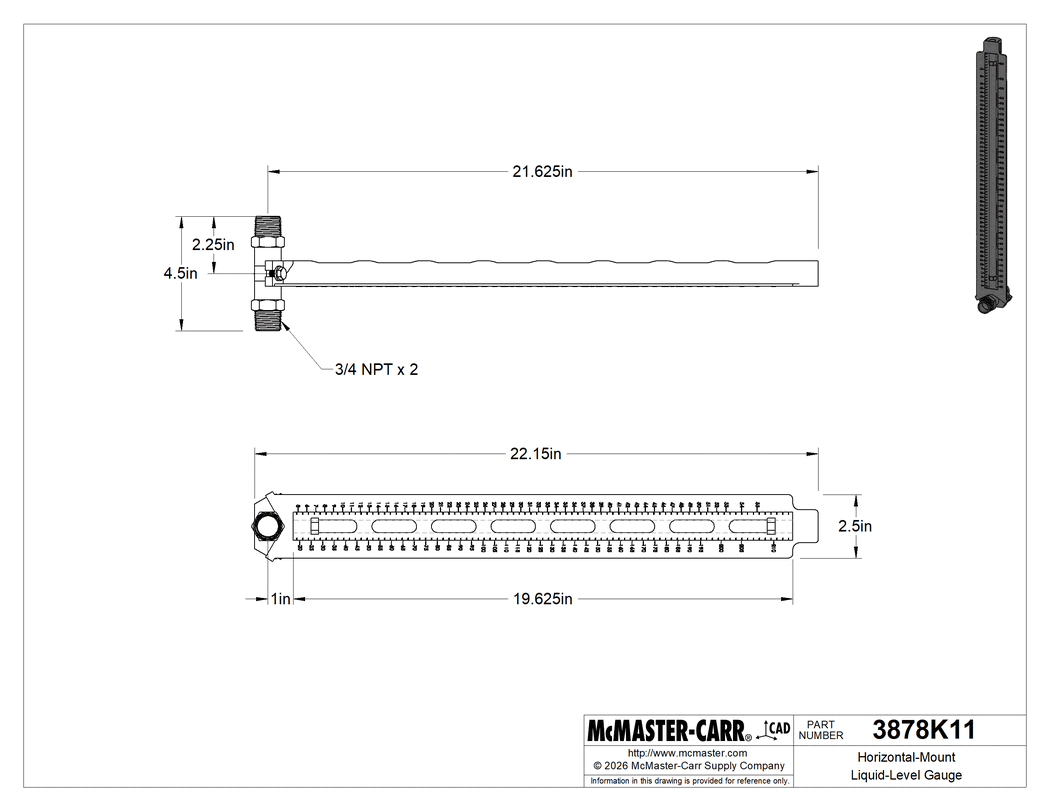

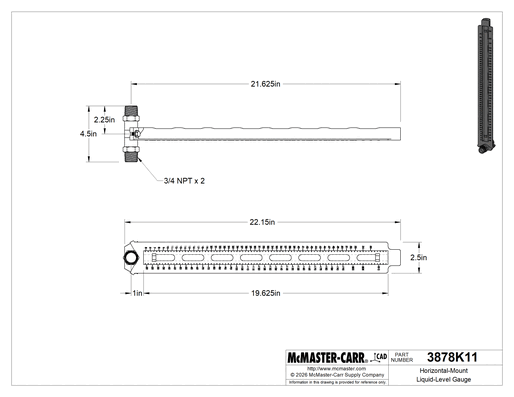

2-D PDF
000000 each
3878K11
In stock
3878K11
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Mounting Position | Horizontal |
Fitting Material | Steel |
For Drum Capacity | 55 gal. |
Pipe Size | 3/4 |
Thread Type | NPT |
Gender | Male |
Overall | |
Depth | 4 1/2" |
Height | 22 1/8" |
Window Height | 19 5/8" |
Maximum Pressure | Not Rated |
Temperature Range | 35° F to 150° F |
Housing Material | Aluminum |
Window Material | Glass |
Graduations | 1 gal., 5 L |
Connects To | Pipe |
Fitting Connection | Threaded |
For Container Type | Drum |
For Use With | Diesel Fuel, Hydraulic Fluid, Water |
Seal Material | TFE |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 902610.7000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Measure water, hydraulic fluid, or diesel fuel level in your drum.
Horizontal Mount—Horizontal-mount gauges install by attaching one pipe connection to the opening of a horizontal drum. Attach a drain or valve to the pipe connection on the other end. They have sliding markers for calibration and measure your liquid in gallons and liters.
The information in this 3-D model is provided for reference only.
