Easy-View Oil-Level Indicator
3/4 NPT Male Thread, 9-13/16" Overall Height
Mount Type | Screw In |
Material | Copolyester |
Pipe Size | 3/4 |
Thread Type | NPT |
Gender | Male |
Overall Height | 9 13/16" |
Window Height | 7 7/8" |
Maximum Pressure @ Temperature | 65 psi @ 70° F |
Temperature Range | -40° F to 200° F |
Fitting Material | 304 Stainless Steel |
Window Material | Copolyester |
For Use With | Alcohol-Based Solvents, Diesel Fuel, Hydraulic Fluid, Oil, Salt Water, Water |
Features | 3-Micron Filter, UV Resistant, Vent |
Includes | Level Rings |
Connects To | Pipe |
Fitting Connection | Threaded |
Number of Rings | 2 |
Ring Color | Green, Red |
Ring Material | Polycarbonate |
Shape | Straight |
Vent | |
Connection Port | Pipe |
Connection | Threaded |
Thread Type | NPT |
Pipe Size | 1 |
Gender | Male |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 902610.7000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Made with clear, shatter-resistant plastic, these indicators don't require a shield to protect them like other oil-level indicators, so you can check your hydraulic fluid or oil level from any angle. They’re often found on gear boxes, crank cases, and other reservoirs. These indicators mount from the outside of your tank. The vent prevents pressure buildup, which can affect the level displayed. Within the vent, there is a filter for keeping out particles as small as table salt. Unthread the vent to clean its filter or to replace it with your own vent, plug, fitting, or sensor. These indicators also have adjustable rings for marking levels critical to your system.

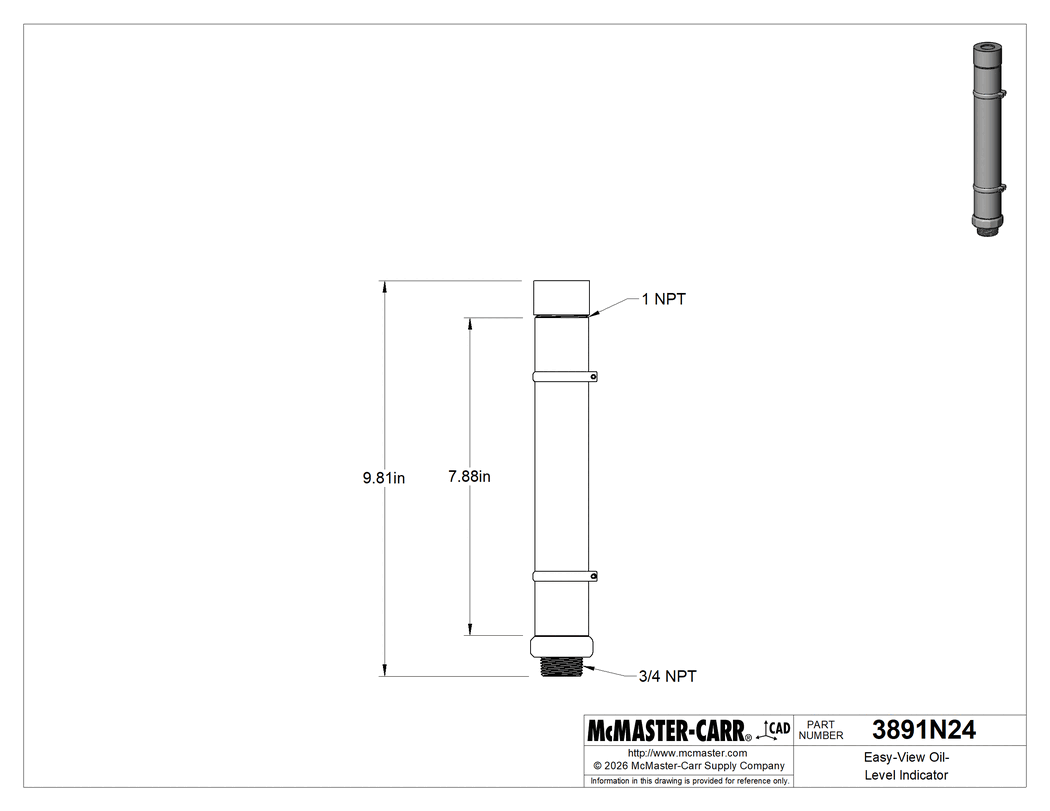

The information in this 3-D model is provided for reference only.
