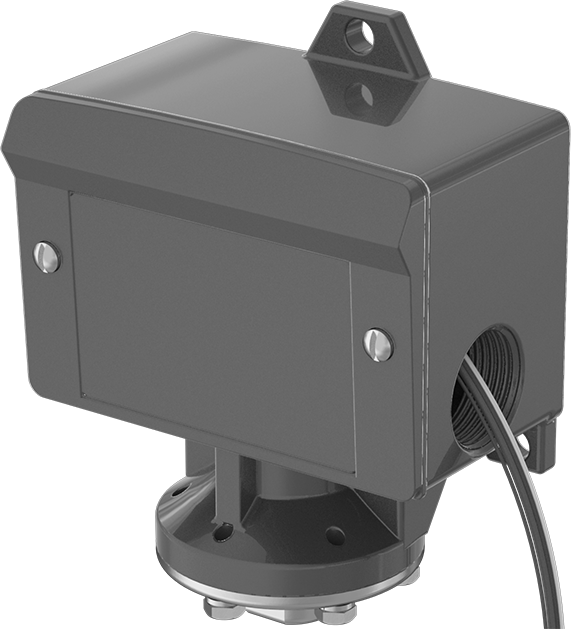

Pressure Switch
Cover and Wire Leads, 1/4 NPT Female, 15-100 PSI Setpoint
Includes | Cover |
Wire Connection | Wire Leads |
Pipe Connection | 1/4 Threaded NPT Female Pipe |
Style | J |
Pressure Set Point Range | 15 psi to 100 psi |
Approximate Difference Between Set Point and Reset Point | 4.5 psi |
Maximum Continuous Pressure | 100 psi |
Maximum Short-Term Pressure | 1,000 psi |
Accuracy | ±1% |
Maximum Switching Current @ Voltage | 15 amp @ 125V AC |
Process Temperature Range | 20° F to 300° F |
Connection Material | 316 Stainless Steel |
For Use With | Air, Diesel Fuel, Gasoline, Hydraulic Fluid, Nitrogen, Oil, Water |
Enclosure Rating | IP66, NEMA 4X |
Adjustment Mechanism Location | Internal |
Certification | C-UL Listed, CE Marked, CSA Certified, CSA-US Certified, UL Listed |
Conduit | |
For Trade Size | 3/4 |
Connection | Threaded |
Connection Gender | NPT Female |
Environment | Corrosive, Dusty, Outdoor, Washdown, Wet |
Hazardous Location Protection Type | Protection by Enclosure |
Height | 5 1/8" |
Material | |
Housing | Epoxy-Coated Aluminum |
Gasket | Fluoroelastomer |
Measurement Unit | Pounds per Square Inch |
Number of Circuits Controlled | 1 |
Operates On | Pressure |
Operation Type | Mechanical |
Set Point Adjustability | Adjustable |
Switch Designation | SPDT |
Switch Starting Position | 1 Off, 1 On |
Environment Temperature | -20° F to 150° F |
Width | 4" |
Wire Leads | |
Number of | 3 |
Length | 72" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 853650.9065 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The traditional pressure switch. These power equipment, activate controls or alarms, or kick-off other actions when they reach a set pressure. Larger than compact pressure switches, they're easier to wire. These switches are single pole, double throw (SPDT) and can be installed to turn one circuit from off to on (normally open) or from on to off (normally closed).
Pressure Switches with Cover—Switches with a cover protect against impact and keep dust off the switch.
Style J—Styles A-C, E-J, and L meet at least one safety standard.
IP66 Enclosure Rating—IP66 switches withstand washdowns.
NEMA 4X Enclosure Rating—NEMA 4 and NEMA 4X rated switches can be used in dirty and wet areas exposed to washdowns and the weather. NEMA 4X also has increased protection against corrosion, similar to 304 stainless steel.

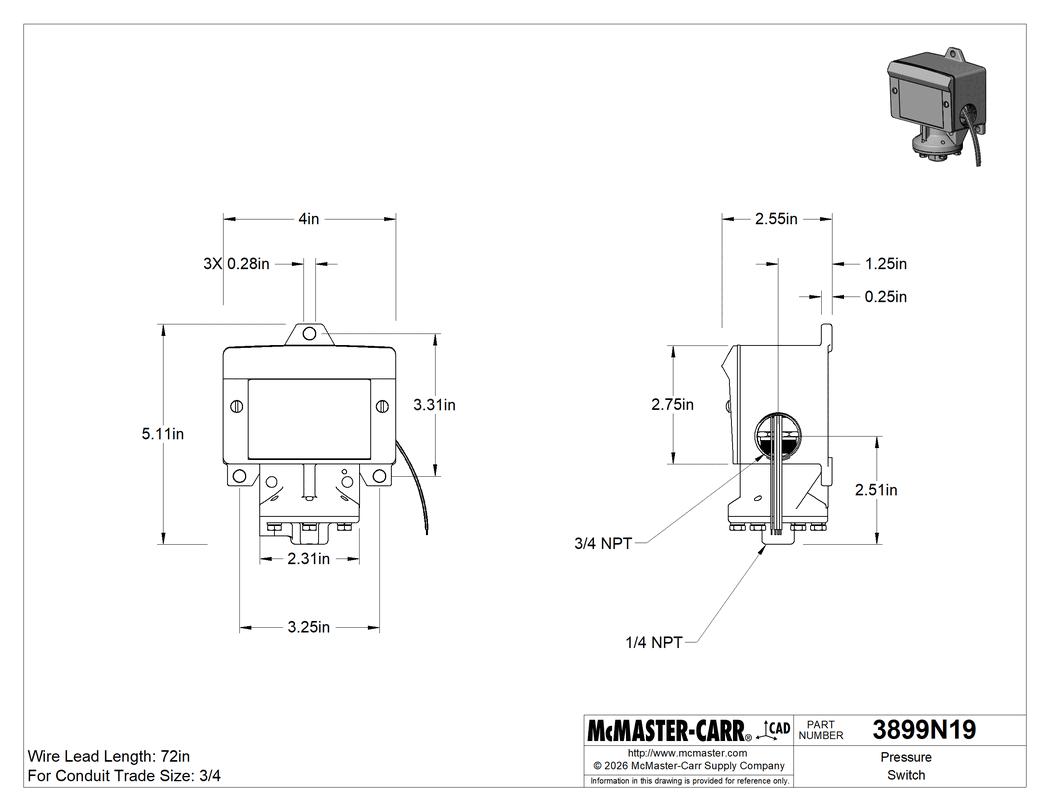

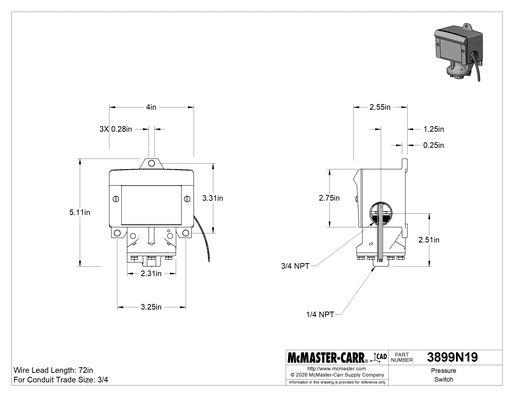

The information in this 3-D model is provided for reference only.
