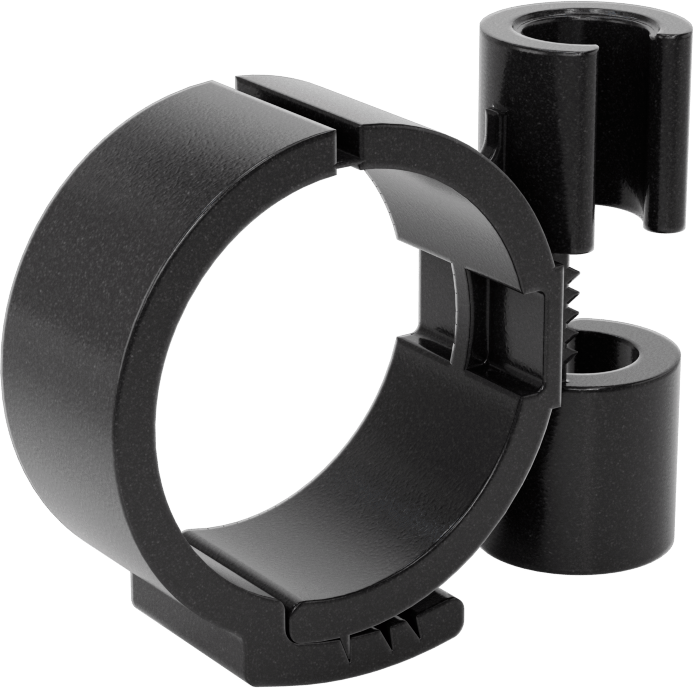

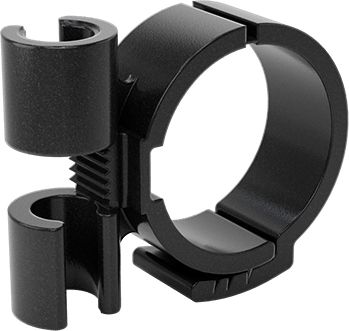

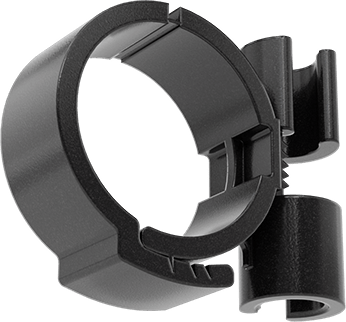

Quick-Mount Plastic Clamping Hanger
1-1/4" ID
Hanger Type | Clamp |
Mounting Location | Threaded Rod, Overhead |
Material | Nylon |
ID | |
Inch | 1 1/4" |
Metric | 32 mm |
For Copper Tube Size | 1 |
For Thread Size | 3/8"-16 |
Weight Capacity | 150 lb. |
Closure Method | Push to Close, Snap |
Color | Black |
Features | Locking Arm |
For EMT Conduit Trade Size | 1 |
Height | 1 5/8" |
Length | 2 1/8" |
Load Location | Top, Bottom |
Mount Type | Snap On |
Performance | Quick Mount |
Temperature | -40° F to 270° F |
Threaded Rod Included | No |
Width | 5/8" |
Country of Origin | United Kingdom |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8630 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Install and lock your line into place faster than any other hanger we sell. Snap the hanger onto a threaded rod, then press your line into the open hanger and close by hand without extra tools or adjustments.
Nylon—Lightweight, nonconductive, and naturally rust resistant. The plastic won't cause corrosion on metal parts. It does swell and weaken when exposed to moisture, so these are best for dry environments.

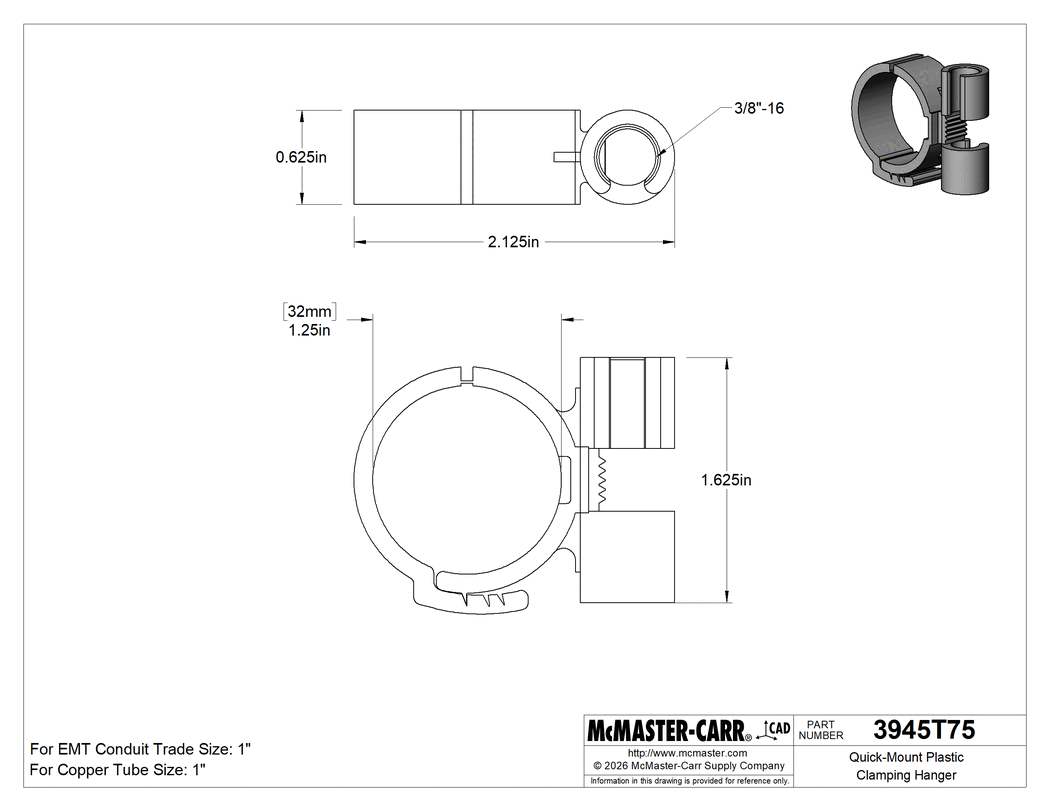

The information in this 3-D model is provided for reference only.
