    Vacuum Gauge with Steel Case

    Dual Scale, 2-1/2" Dial, 1/4 NPT Male Bottom Connection

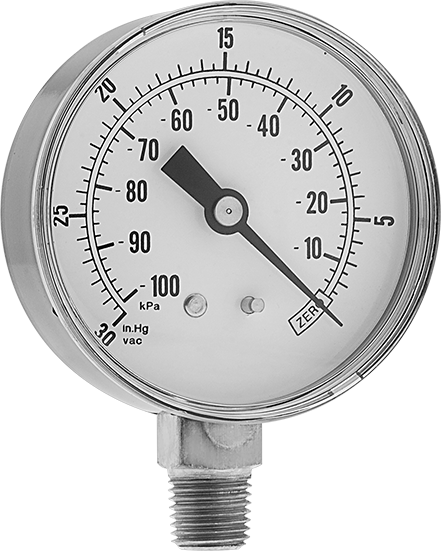

    Image of Product. Front orientation. Vacuum Gauge with Steel Case, Dual Scale, 2-1/2" Dial, 1/4 NPT Male Bottom Connection.

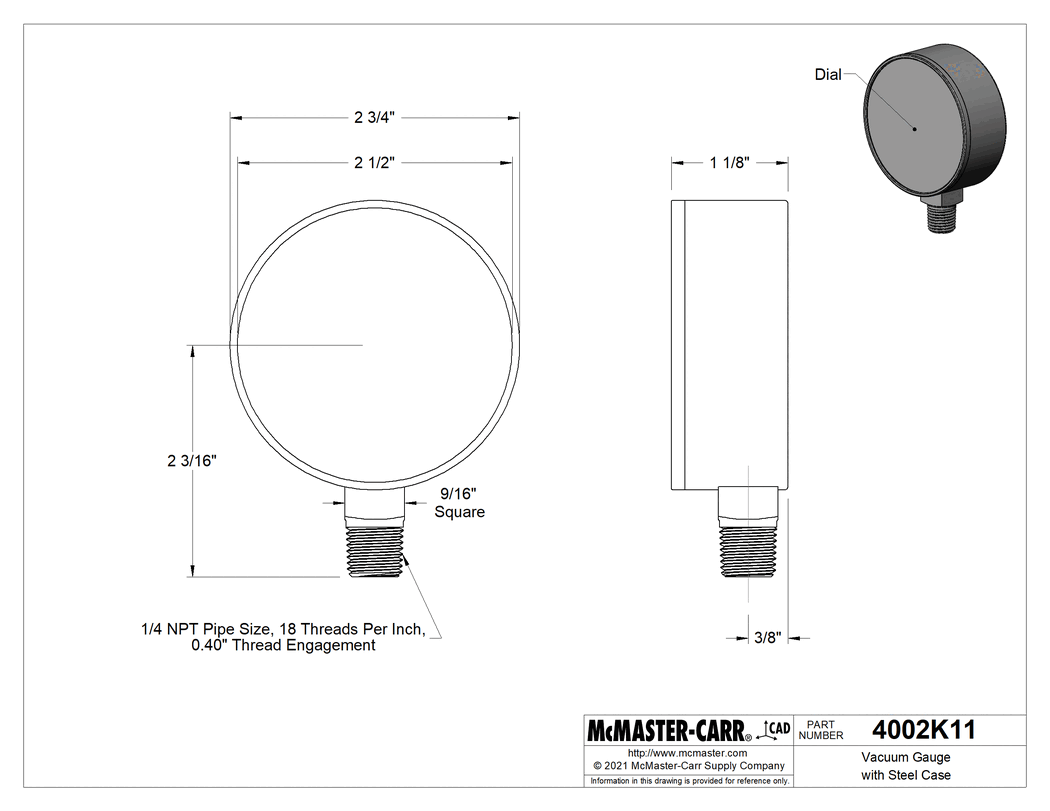

    Technical Drawing of Vacuum Gauge with Steel Case, Dual Scale, 2-1/2" Dial, 1/4 NPT Male Bottom Connection.
    Image of Attribute. Bottom Connection. Front orientation. Vacuum Gauge with Steel Case, Dual Scale, 2-1/2" Dial, 1/4 NPT Male Bottom Connection.
    Bottom Connection
    2-D PDF
    000000 each
    4002K11
    In stock
    4002K11
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Case Material

    Painted Steel

    Connection Material

    Brass

    Scale Type

    Dual

    Measurement Unit

    Inches of Mercury, Kilopascals

    Thread Type

    NPT

    Gender

    Male

    Fitting Connection

    Threaded

    Connects To

    Pipe

    Connection Location

    Bottom

    Dial Diameter

    2 1/2"

    Pipe Size

    1/4

    Environment Temperature Range

    -40° F to 150° F

    Process Temperature Range

    -40° F to 150° F

    Case Color

    Black

    Available Vacuum Ranges

    Vacuum Range

    -30 in. Hg to 0 in. Hg
    -100 kPa to 0 kPa

    Graduations

    0.5 in. Hg
    2 kPa

    Pressure Numeric Increments

    5 in. Hg
    10 kPa

    For Use With

    Air

    Accuracy

    ±2% Midscale (Grade B)

    Dial Type

    Dry

    Display Type

    Dial

    Lens Material

    Polycarbonate

    Measures

    Vacuum

    Country of Origin

    Brazil

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    902620.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Use these gauges with vacuum pumps, packaging equipment, and in suction lines to measure and display vacuum.

    Painted Steel Case—Gauges with a steel case are more impact resistant than gauges with an ABS case.
