    Knife File

    for Medium Finish, 10" Long x 1" Wide

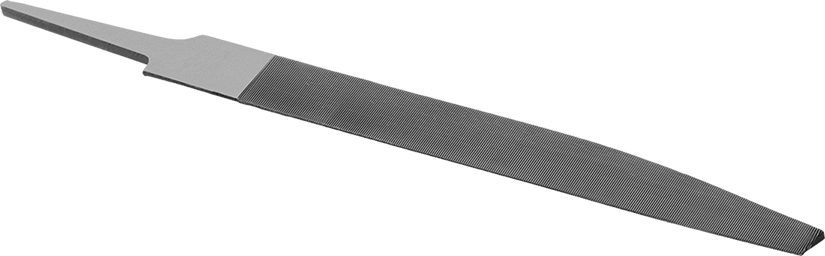

    Image of Product. Front orientation. Knife File, for Medium Finish, 10" Long x 1" Wide.

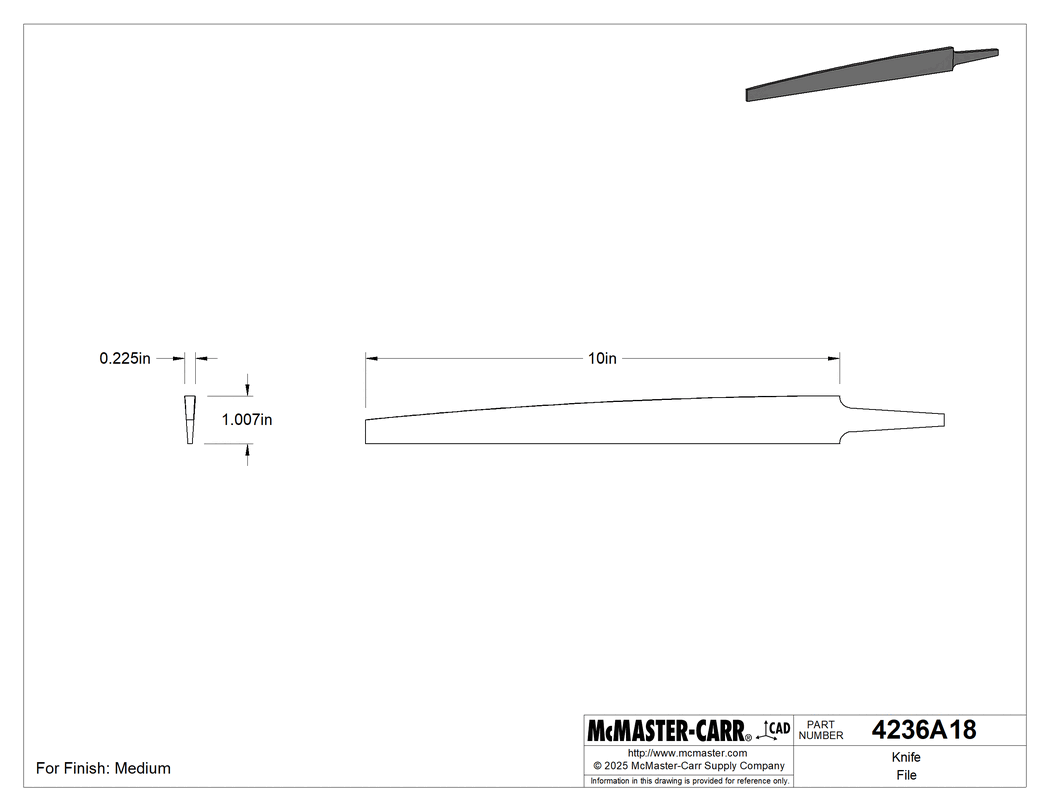

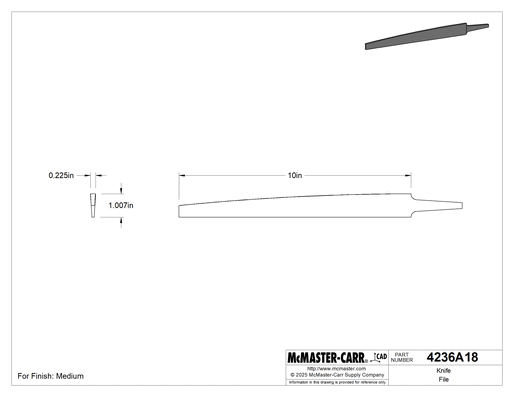

    Technical Drawing of Knife File, for Medium Finish, 10" Long x 1" Wide.

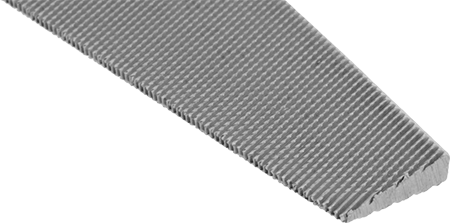

    Image of Specification. Front orientation. ZoomedIn view. Knife File, for Medium Finish, 10" Long x 1" Wide.
    2-D PDF
    000000 each
    4236A18
    In stock
    4236A18
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    File Shape

    Taper

    Shape

    Knife

    Face Tooth Style

    Double Cut

    Flexibility

    Rigid

    Grit

    For Medium Finish

    Length

    10"

    Width

    1"

    Thickness

    1/4"

    Edge Tooth Style

    Single Cut Knife Edge × Thick Edge Without Teeth

    For Use On

    Steel, Iron

    File Pattern

    American

    File Type

    Standard

    Sold As

    Individual

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820310.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Get into tight angles, corners, and slots. These files do not include a handle but do have a tang that fits into a handle. Length does not include the tang.

    Double CutSurface has two sets of diagonal teeth and is often used with heavier pressure than single cut for rapid material removal.

    Single-Cut EdgeSurface has one set of diagonal teeth and is often used with light pressure to slowly remove material and sharpen tool-cutting surfaces.

    Without TeethEdges without teeth protect adjacent surfaces when filing.

    The information in this 3-D model is provided for reference only.
