    High-Speed Steel Bur

    with 1/8" Diameter Shank, Pointed Tapered Cone, 9/16" Head Length

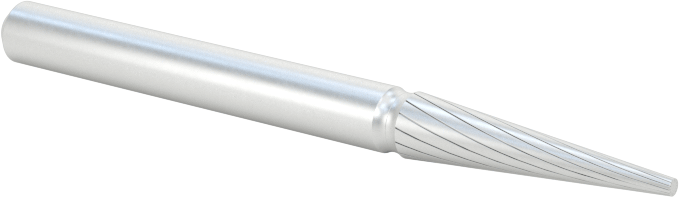

    Image of Product. Front orientation. High-Speed Steel Bur, with 1/8" Diameter Shank, Pointed Tapered Cone, 9/16" Head Length .

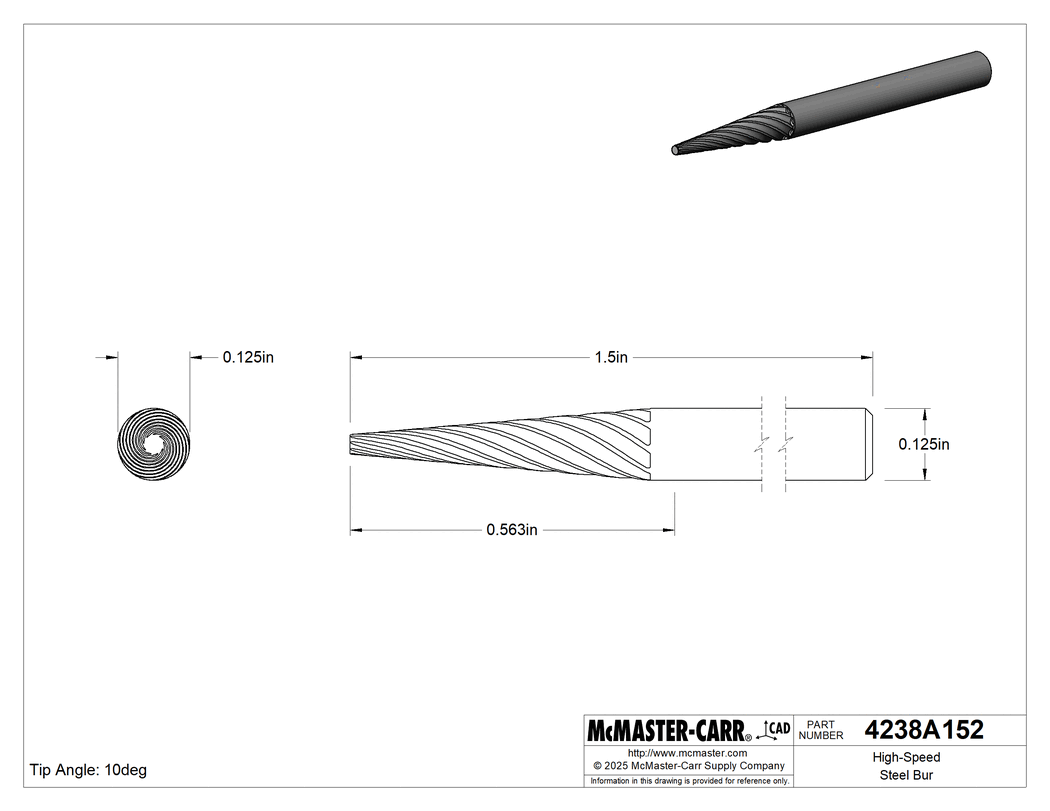

    Technical Drawing of High-Speed Steel Bur, with 1/8" Diameter Shank, Pointed Tapered Cone, 9/16" Head Length .
    Image of Product. Back orientation. High-Speed Steel Bur, with 1/8" Diameter Shank, Pointed Tapered Cone, 9/16" Head Length .
    Image of Product. Front orientation. High-Speed Steel Bur, with 1/8" Diameter Shank, Pointed Tapered Cone, 9/16" Head Length .

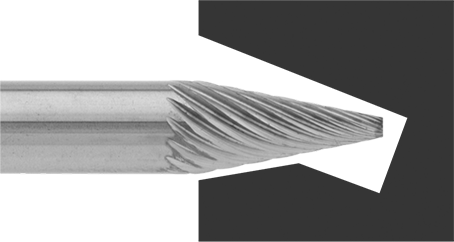

    Image of ProductInUse. Front orientation. High-Speed Steel Bur, with 1/8" Diameter Shank, Pointed Tapered Cone, 9/16" Head Length .
    Image of Product. Side1 orientation. Contains SizingReference. High-Speed Steel Bur, with 1/8" Diameter Shank, Pointed Tapered Cone, 9/16" Head Length .
    2-D PDF
    00000 each
    4238A152
    In stock
    4238A152
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Shank Flexibility

    Rigid

    Sold As

    Individual

    Shape

    Tapered Cone

    Tip Style

    Pointed

    Material

    High-Speed Steel

    Tooth Style

    Single Cut

    Grit Rating

    Fine

    Shank Diameter

    1/8"

    Head

    Diameter

    1/8"

    Length

    9/16"

    Tip Angle

    10°

    Overall Length

    1 1/2"

    For Use On

    Steel

    For Use With

    Grinders for Bits and Burs

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820790.1500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Tapered Cone with Pointed Tip—Pointed tapered cone burs are for tapered holes and slots with pointed bottoms.

    High-Speed Steel—The choice for general purpose deburring on steel, though not as strong as carbide.

    Single-Cut Tooth—Single-cut tooth burs are for gradual metal removal with a fine finish.
