    LED Driver

    Constant Voltage, 60W Output, 12V DC

    Image of Product. Front orientation. LED Driver, Constant Voltage, 60W Output, 12V DC.

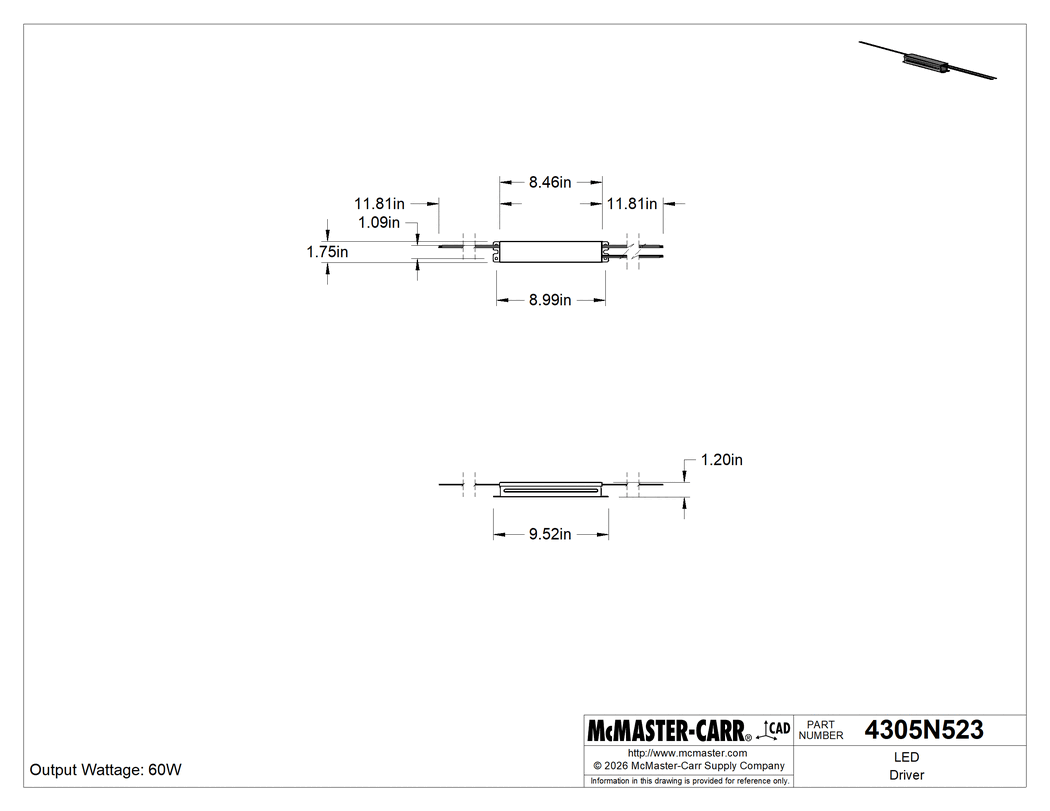

    Technical Drawing of LED Driver, Constant Voltage, 60W Output, 12V DC.
    Image of Product. Back orientation. LED Driver, Constant Voltage, 60W Output, 12V DC.
    Image of Product. Bottom orientation. LED Driver, Constant Voltage, 60W Output, 12V DC.
    Image of Product. Side1 orientation. Contains SizingReference. LED Driver, Constant Voltage, 60W Output, 12V DC.
    2-D PDF
    000000 each
    4305N523
    In stock
    4305N523
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    LED Driver Type

    Constant Voltage

    Output

    Wattage

    60 W

    Current

    0 amp to 5 amp

    Voltage

    12V DC

    Input

    Wattage

    78 W

    Voltage

    120V AC to 277V AC

    Light Intensity Setting

    Dimmable

    Dimming Range

    0.1% to 100%

    Length

    9 1/2"

    Width

    1 3/4"

    Height

    1 3/16"

    Temperature Range

    -40° F to 125° F

    Enclosure Rating

    IP65

    Case Material

    Steel

    Certification

    C-UL Listed, FCC Compliant, UL Listed

    Electrical Connection Type

    Hardwire

    Electrical Protection Type

    Over Temperature, Overcurrent, Overload, Overvoltage, Short Circuit

    Environment

    Dusty, Washdown, Wet

    For Light Technology

    LED

    For Use Outdoors

    No

    Frequency

    50 Hz, 60 Hz

    Input Electrical Connection

    Wire Leads

    Output Electrical Connection

    Wire Leads

    Rated Life

    50,000 hr.

    UL File Number

    E342838

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    850440.9585

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Bring your LED light back to life without the cost and hassle of replacing the entire fixture. These drivers replace your light’s failed driver and convert your building’s AC voltage into the low-voltage DC power your LEDs need. They also shield your lights from damaging voltage and current fluctuations.

    To select the right driver, match its output wattage to the label on your existing driver. If there’s no exact match, round up to the nearest wattage.

    Constant-Voltage Driver—Constant voltage drivers are best for long runs of lights, such as strip or tape lights, to maintain stable voltage. Rated IP65, they’re protected from dust and low-pressure jets of water. They’re safe for use as replacements in outdoor fixtures exposed to rain and wet conditions.

    The information in this 3-D model is provided for reference only.
