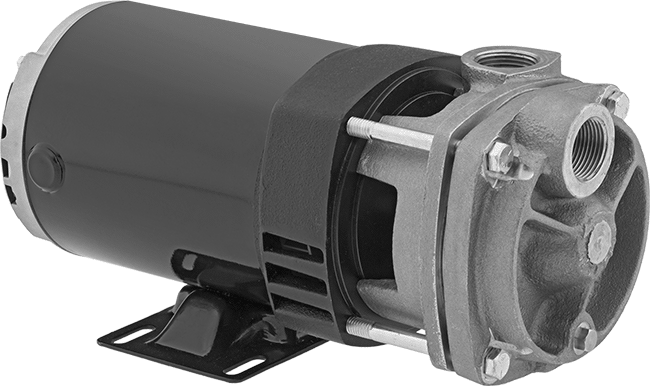

High-Head Circulation Pump
for Water, Coolants and Oil, 120/208-240V AC, 1/3 hp
Voltage | 120V AC/208V AC to 240V AC |
Electrical Phase | Single |
Thermal Protection | With Thermal Overload Protection |
Electrical Connection Type | Hardwire |
Maximum Viscosity | 52 cP |
Maximum Flow Rate | 3 gpm |
Flow Rate | |
@ 80 Feet of Head | 3 gpm |
@ 90 Feet of Head | 3 gpm |
@ 100 Feet of Head | 3 gpm |
@ 110 Feet of Head | 3 gpm |
@ 120 Feet of Head | 3 gpm |
@ 130 Feet of Head | 3 gpm |
@ 140 Feet of Head | 2 gpm |
@ 150 Feet of Head | 2 gpm |
Maximum Feet of Head | 165 ft. |
Maximum Pressure | 70 psi |
Power | 1/3 hp |
Current | 7.5 amp/4 amp |
Intake | |
Location | Front |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 Female NPT |
Discharge | |
Location | Top |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 Female NPT |
Overall | |
Length | 13 5/8" |
Width | 6 1/2" |
Height | 6 7/8" |
Chemical Resistance | |
Excellent | Ethylene Glycol, Petroleum-Based Hydraulic Oil, Petroleum-Based Motor Oil, Water |
Moderate | Salt Water |
Poor | Acetone, Deionized Water, Diesel Fuel, Ethanol, Gasoline, Kerosene, Lacquer Thinner, Methanol (Methyl Alcohol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Mineral Spirits, Paint, Sodium Hypochlorite (Bleach), Xylene, Ammonium Hydroxide (100% Concentration), Hydrochloric Acid (20% Concentration), Hydrochloric Acid (37% Concentration), Hydrochloric Acid (100% Concentration), Isopropyl Alcohol (100% Concentration), Nitric Acid (20% Concentration), Nitric Acid (50% Concentration), Nitric Acid (100% Concentration), Phosphoric Acid (<40% Concentration), Phosphoric Acid (≥40% Concentration), Sodium Hydroxide (Caustic Soda) (20% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration), Sodium Hydroxide (Caustic Soda) (80% Concentration), Sulfuric Acid (<10% Concentration), Sulfuric Acid (10-75% Concentration), Sulfuric Acid (>75% Concentration) |
Duty Cycle | Continuous |
For Use With | Ethylene Glycol, Hydraulic Oil, Motor Oil, Water |
Frequency | 60 Hz |
Housing Material | Bronze |
Impeller Material | Bronze |
Maximum Solids Diameter | 0.001" |
Motor Enclosure Type | Open Dripproof (ODP) |
Number of Mounting Holes | 4 |
Optimal Operating Point @ Feet of Head | 2 gpm @ 160 ft. |
Optimal Operating Range @ ft. of Head | 2 gpm to 3 gpm @ 165 ft. of head to 60 ft. of head |
Power Source | Electric |
Priming Type | Gravity Fed |
Pump Style | Circulating |
Pump Type | Centrifugal |
Runs Dry | No |
Temperature | -20° F to 230° F |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Wetted Parts Material | 304 Stainless Steel, 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic |
Wire Connection | Screw Terminal |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 841381.0020 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Products | |
Propel liquid higher and farther than standard circulation pumps. They're commonly used with chillers, heat exchangers, and boiler feed systems. The motor is open dripproof (ODP) for use in clean, dry, and well-ventilated environments. Pumps are gravity fed and require an elevated liquid source to fully fill the pump before turning on. Do not run dry or use with solids.
Note: If flow control is needed, place valves or reducers on the discharge side; never restrict the inlet of a pump with a valve or reducer.
