Flowmeter
Cylinder, Polypropylene Fittings, 3/8 NPT Female, 0.3-3 gpm
Body Shape | Cylinder |
Body Material | Acrylic Plastic |
Fitting Material | Polypropylene |
Connections | 3/8 NPT Female |
Flow | |
US Customary | 0.3 gpm to 3 gpm |
Metric | 1.5 L/min to 11 L/min |
Overall Height | 8 3/16" |
Accuracy | ±5% |
Maximum Pressure @ Temperature | 150 psi @ 70° F |
Temperature | |
Minimum | 33° F |
Maximum | 150° F |
Seal Material | Fluoroelastomer |
Mounting Position | Vertical |
Calibration Media | |
Specific Gravity | 1 |
Calibrated with | Water |
Connects To | Pipe |
Display Type | Scale |
Fitting Connection | Threaded |
Flow Measurement Type | Variable Area |
Flow Measurement Unit | Gallons per Minute, Liters per Minute |
For Use With | Liquids |
Graduations | |
US Customary | 0.10 gpm |
Metric | 0.50 L/min |
Mounting Location | Inline |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Wetted Parts Material | 316 Stainless Steel, Acrylic Plastic, Fluoroelastomer, Polypropylene |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 902610.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

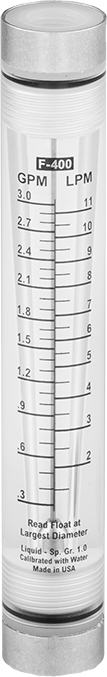

Check the flow rate of liquids in your system. As your liquid flows through these flowmeters, it pushes an indicator up the scale, showing you the flow rate. Mount them vertically inline with your piping system, so liquid flows up from the bottom. They’re made from acrylic, so they’re completely clear to help you inspect your liquid’s color and clarity for any problems. They also have a white backing to help you read the scale clearly.
These flowmeters are calibrated with water but can be used with other liquids except for oil. If you’re using these with a liquid other than water, you’ll need to calculate the flow rate by multiplying the number shown on the scale by the specific-gravity conversion factor for your liquid.
Choose a fitting material that is compatible with the liquid you're running through your line.
Polypropylene Fitting—Polypropylene fittings work with a wide range of chemicals. However, they can crack from impact or when overtightened.

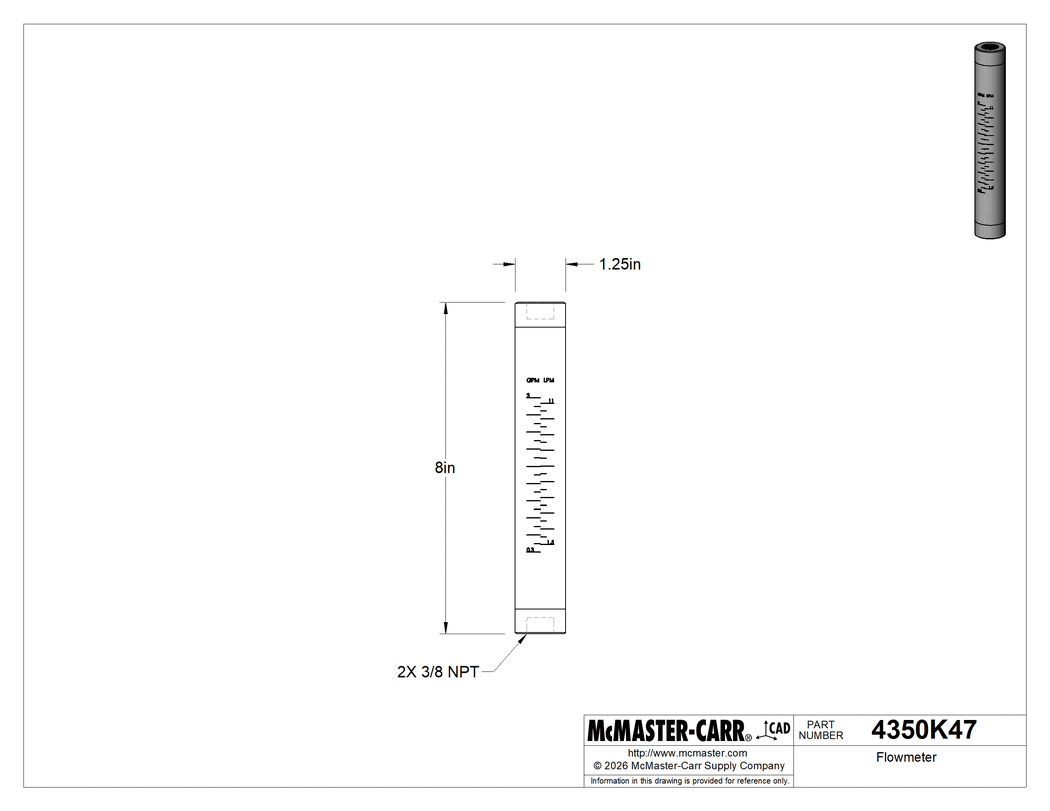

The information in this 3-D model is provided for reference only.
