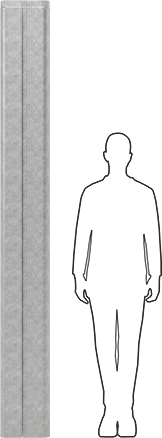

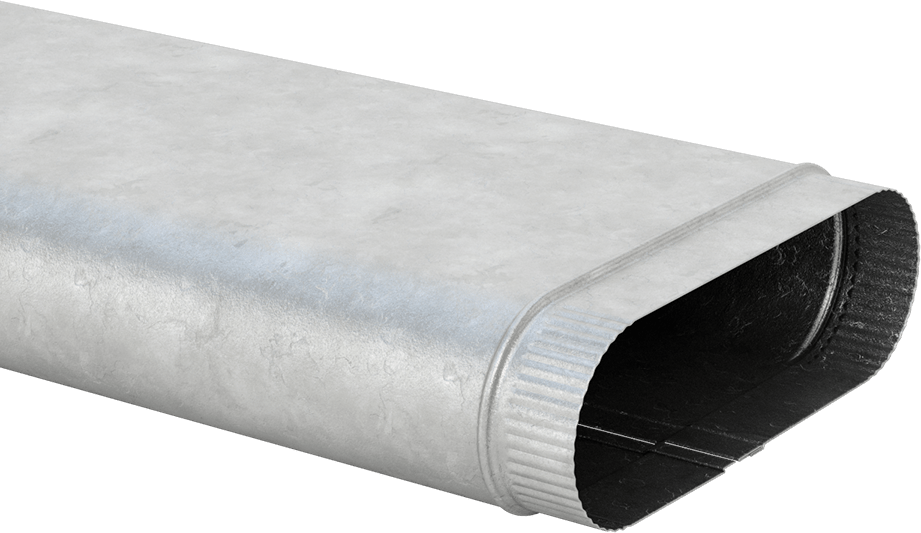

Oval Duct
Galvanized Steel, Duct Size 8, 8 Feet Long
Duct Type | Oval |
Shape | Straight |
Component | Duct |
Material | Galvanized Steel |
Duct Size | 8 |
Female End | |
Oval Width | 10 7/8" |
Oval Height | 3 1/2" |
Male End | |
Oval Width | 10 3/4" |
Oval Height | 3 3/8" |
Length | 8 ft. |
Gauge | 30 |
Construction | |
Duct | Open |
End | Crimped |
Duct Profile | Oval |

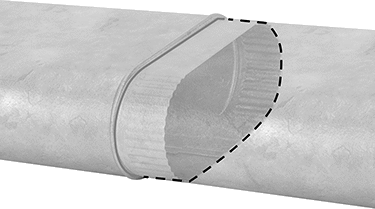

Fitting Connection | Press Fit |
Gender | Female × Male |
Performance | Corrosion Resistant |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730890.9090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
When rectangular duct is too large, oval duct fits into the tightest spaces. It’s about half the height of rectangular duct and the shape creates more efficient airflow. Components press-fit together.
Duct—Pair with compatible fittings and accessories.
Galvanized Steel—Corrosion resistant and affordable, galvanized steel is the most commonly used ductwork material.
Open Duct—Easier to cut with snips than closed duct, so it’s good for repairing or retrofitting an existing system. Snap the seams together by hand—no tools required.

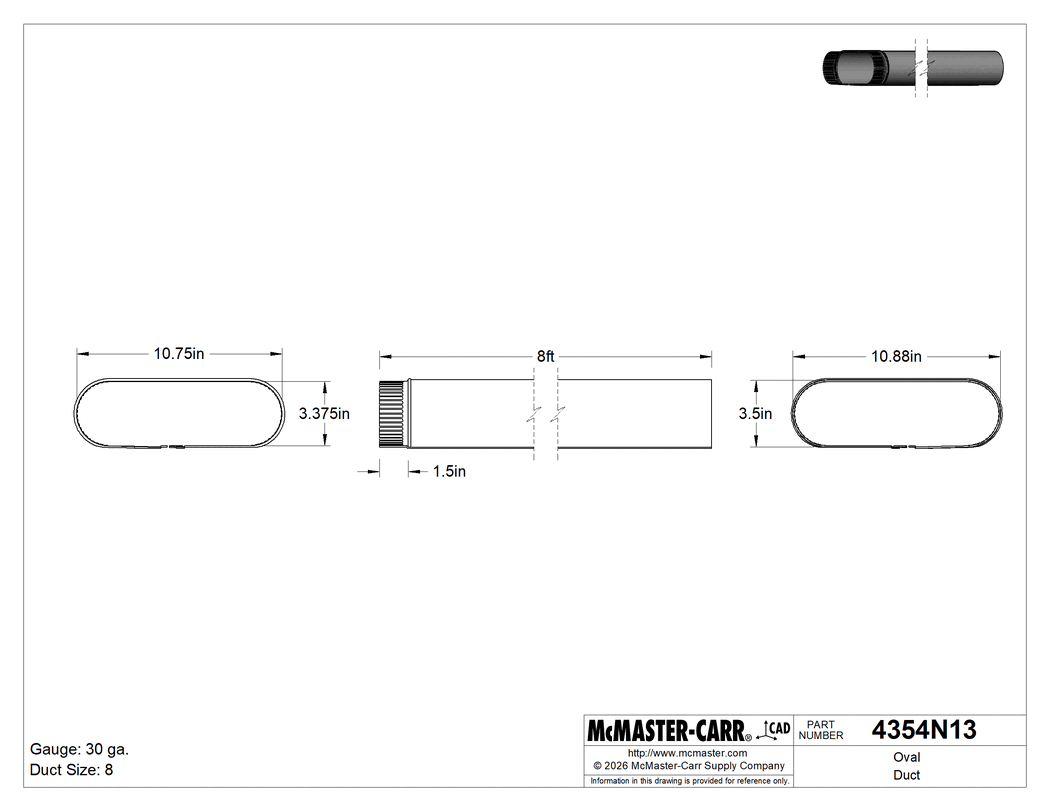

The information in this 3-D model is provided for reference only.
