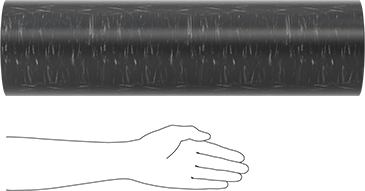

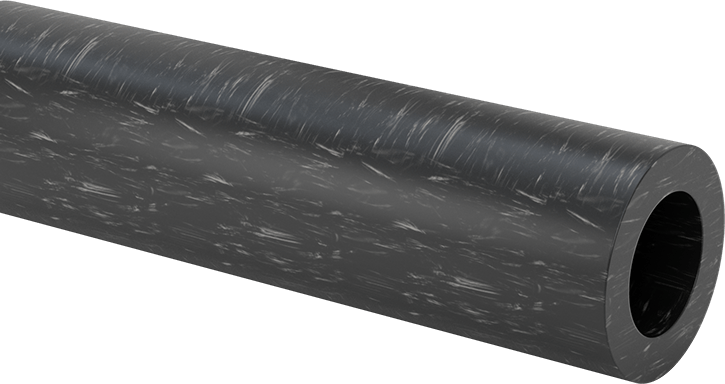

MDS-Filled Easy-to-Machine Cast Nylon Tube
Wear-Resistant, 1-1/4" Wall Thickness, 6-1/2" OD, 4" ID, 2 Feet Long
Tolerance Rating | Oversized |
Wall Thickness | 1 1/4" |
OD | 6 1/2" |
OD Minimum Tolerance | Not Rated |
OD Maximum Tolerance | Not Rated |
ID | 4" |
ID Minimum Tolerance | Not Rated |
ID Maximum Tolerance | Not Rated |
Length | 2 ft. |
Length Tolerance | 0" to 1" |
Fabrication | Cast |
Minimum Temperature | Not Rated |
Maximum Temperature | 230° F |
Tensile Strength | 10,000 psi |
Impact Strength | 1.4 ft·lbf/in |
Color | Black |
Application | Multipurpose |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Acetone, Diesel Fuel, Gasoline, Isopropyl Alcohol, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil |
Not Rated | Coolant, Fuel Oil, Heating Oil, Hydraulic Fluid, Kerosene, Lacquer Solvents, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Synthetic Oil, Vegetable Oil, Water |
Not Recommended | Chlorine, Hydrochloric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Sulfuric Acid |
Clarity | Opaque |
Coefficient of Friction | 0.22 |
Coefficient of Thermal Expansion | 5× 10^-5 /°F |
Comparable To | Ertalon, Nycast, Nylatron, Tecamid, Ultramid, Zytel |
Dielectric Strength | 500 V/mil |
Environment | Outdoor |
Filler Material | Molybdenum Disulfide |
Density | 0.043 lb/in³ |
Flexibility | Semi-Rigid |
Flexural Modulus | 400,000 psi |
For Use Outdoors | Yes |
For Use With | Acetic Acid (White Vinegar), Acetone, Diesel Fuel, Gasoline, Isopropyl Alcohol, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil |
Hardness | Rockwell R110 |
Hardness Rating | Hard |
Material Grade | Nylon 6 |
Performance | Extra High Strength, Highly Wear Resistant, Machinable, Thermally Stable, Ultra Electrically Insulating, Ultra Low Friction, Wear Resistant |
Texture | Smooth |
Material | Nylon |
Percentage of Filler Material | Not Rated |
Shape | Round Tube |
Specifications Met | ASTM D5989 |
Water Absorption | 0.6% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391729.0090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
The addition of MDS gives these tubes exceptional wear resistance along with a self-lubricating surface. They're made of cast nylon 6, making them easier to machine and better electrical insulators than other MDS-filled nylon tubes. Tubes can be used to fabricate pulleys, bushings, and bearings installed in hard-to-reach areas where adding a lubricant would be difficult. This material is comparable to Nylatron and Nycast.
Oversized Tolerance—Oversized tubes have an oversized OD and an undersized ID for finishing to the sizes listed.

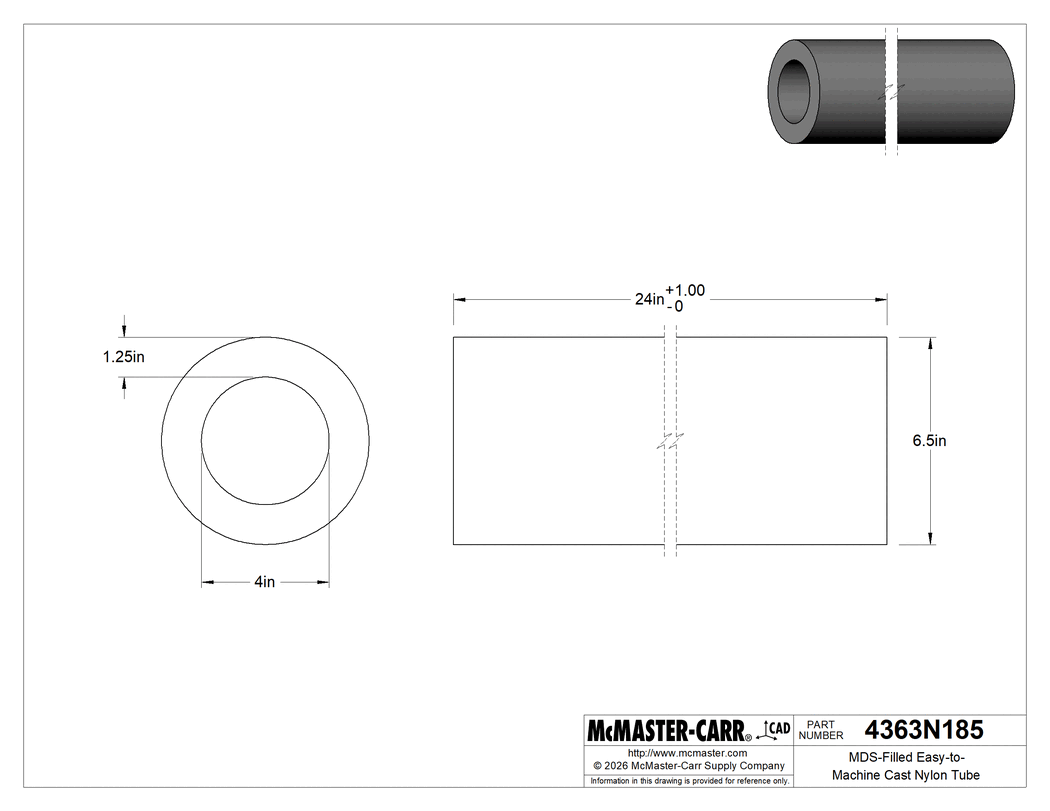

The information in this 3-D model is provided for reference only.
