    Miniature Grinding Bit for Metals

    1/8" Head Diameter, 13/32" Head Length, 120 Grit

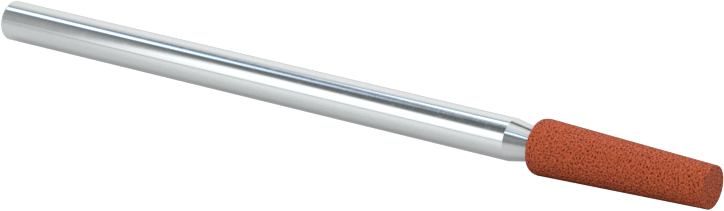

    Image of Product. Front orientation. Miniature Grinding Bit for Metals, 1/8" Head Diameter, 13/32" Head Length, 120 Grit.

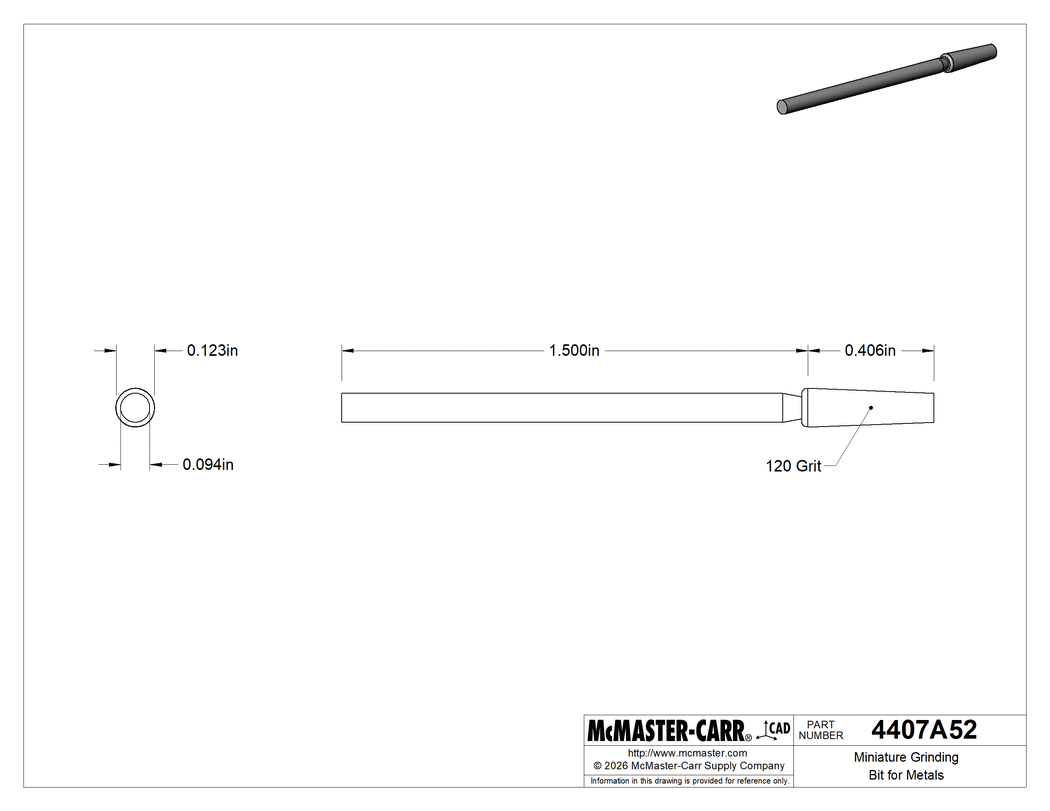

    Technical Drawing of Miniature Grinding Bit for Metals, 1/8" Head Diameter, 13/32" Head Length, 120 Grit.
    Image of Product. Back orientation. Miniature Grinding Bit for Metals, 1/8" Head Diameter, 13/32" Head Length, 120 Grit.
    Image of Product. Front orientation. Miniature Grinding Bit for Metals, 1/8" Head Diameter, 13/32" Head Length, 120 Grit.
    Image of Product. Side1 orientation. Contains SizingReference. Miniature Grinding Bit for Metals, 1/8" Head Diameter, 13/32" Head Length, 120 Grit.
    2-D PDF
    00000 each
    4407A52
    In stock
    4407A52
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Shape

    Flat-Top Cone

    For Use On

    Steel, Stainless Steel, Aluminum, Brass, Bronze, Copper, Iron, Nickel, Titanium

    Shank Diameter

    3/32"

    Style

    6

    Head

    Diameter

    1/8"

    Length

    13/32"

    Maximum Rotation Speed

    35,000 rpm

    Abrasive

    Material

    Aluminum Oxide

    Bond Material

    Vitrified Clay

    Shank Length

    1 1/2"

    Grit (Surface Texture)

    120 (Smooth) Red

    For Use With

    Grinders for Bits and Burs

    Grit Rating

    Medium

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820790.7570

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    The small 3/32" diameter shank and small head makes these bits good for precise and intricate jobs.

    Bits are aluminum oxide, which is the most common abrasive used in grinding metal. They are also known as mounted points and die grinder bits. Head diameter is measured at the widest point.

    Caution: As bit shank is exposed beyond 1/2", maximum safe rpm decreases significantly. Refer to ANSI standard B7.1. Use only accessories that have a greater rpm rating than the maximum speed of the grinder you choose.
