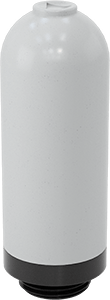

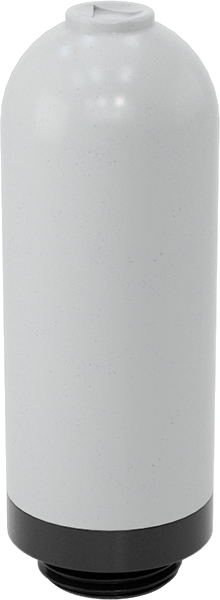

Easy-Clean Muffler
3/8 NPT Male, Polyethylene, 128 scfm Flow Rate
2-D PDF
00000 each
4427K83
In stock
4427K83
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Thread Type | NPT |
Gender | Male |
Material | |
Body | Polyethylene |
Fitting | Polyethylene |
Filter | Polyethylene |
Style | A |
Pipe Size | 3/8 |
Maximum Flow Rate @ Pressure | 128 scfm @ 100 psi |
Maximum Pressure | 150 psi |
Maximum Temperature | 150° F |

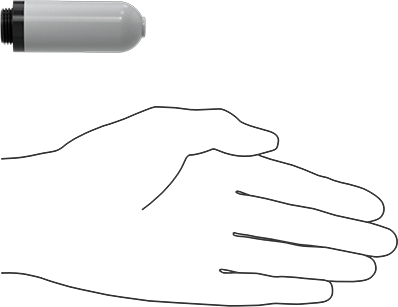

Height | 2 5/8" |
Diameter | 15/16" |
For Use With | Air, Inert Gas |
Removes Particle Size Down To | 80 μm |
Noise Reduction Rating | 20 dBA to 30 dBA |
Connects To | Pipe |
Fitting Connection | Threaded |
For Reducing | Noise, Particles |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 842139.0115 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These mufflers can be cleaned for an extended service life. Use them with air-powered tools, valves, and cylinders to reduce noise and filter exhaust fumes.

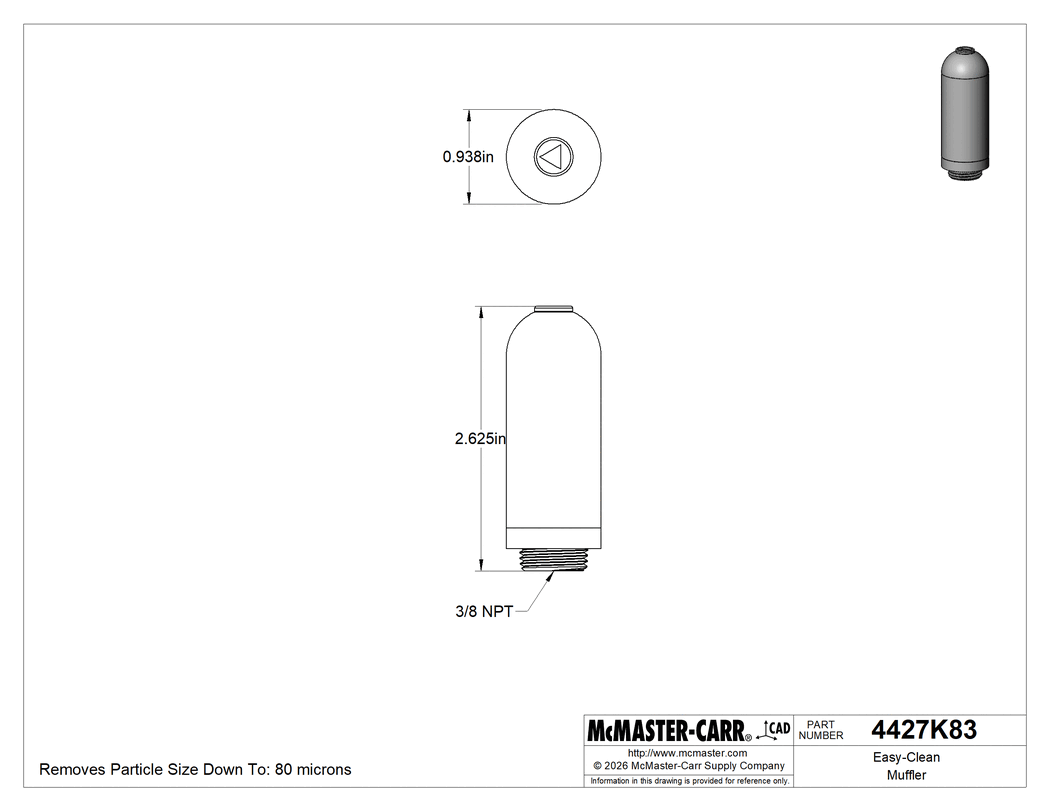

The information in this 3-D model is provided for reference only.
