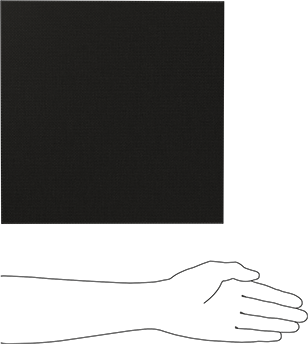

High-Strength Lightweight Carbon Fiber Sheet
Warp-Resistant, 12" X12" X1/16"
Carbon Fiber Construction | Quasi-Isotropic |
Width | 12" |
Width Tolerance | -1/8" to 1/8" |
Length | 12" |
Length Tolerance | -1/8" to 1/8" |
Thickness | 1/16" |
Thickness Tolerance | -0.003" to 0.003" |
Pattern | Checked |
Appearance | Glossy |
Color | Black |
Temperature | |
Minimum | Not Rated |
Maximum | 180° F |
Tensile Strength | Not Rated |
Fiber Tensile Stiffness | 33 msi to 36 msi (Standard) |
Impact Strength | Not Rated |
Hardness | Not Rated |
For Use Outdoors | No |
Application | Multipurpose |
Backing Type | Plain |
Clarity | Opaque |
Composite Tensile Stiffness | Not Rated |
Composite Tensile Stiffness Rating | Not Rated |
Compressive Strength | Not Rated |
Density | 0.054 lb/in³ |
Dielectric Strength | Not Rated |

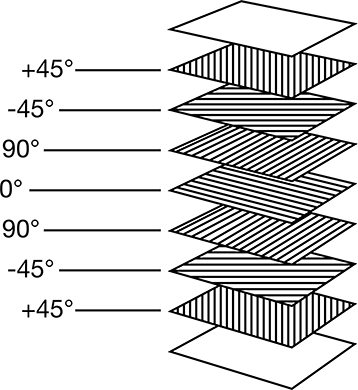

Fiber Layup Orientation | 0°/-45°/+45°/90° |
Flatness Tolerance | Not Rated |
Flexibility | Not Rated |
Flexural Strength | Not Rated |
Hardness Rating | Not Rated |
Material | Carbon Fiber |
Performance | High Strength, Lightweight, Warp Resistant |
Shape | Sheet |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 681513.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Layers of fibers alternating in four directions makes this carbon fiber stiff at the corners and edges, so it stands up to twisting forces. It also gives you the same stiffness as standard carbon fiber but in a thinner sheet, reducing the overall weight of your application. It's ideal for thin, strong parts—often substituted for aluminum because it's lighter in weight yet almost as rigid.

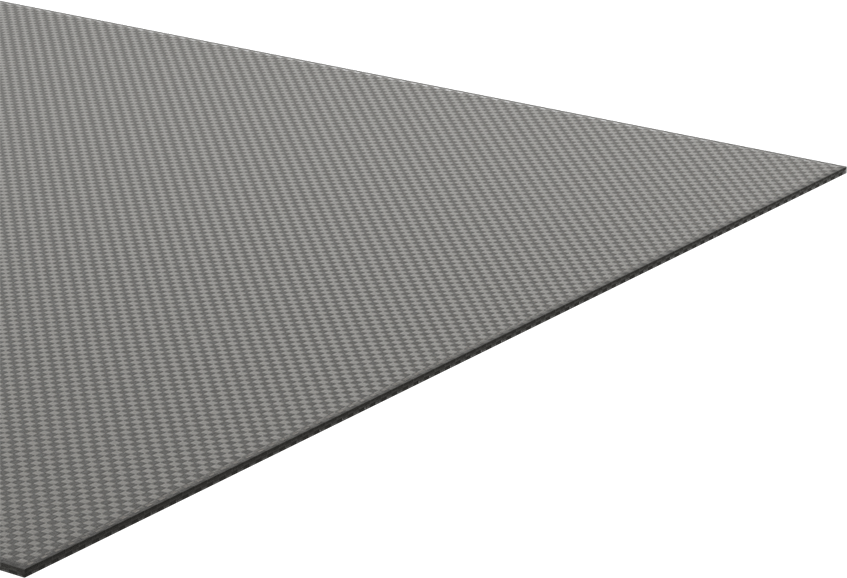

A checked pattern keeps the fibers from splintering when cut and gives these sheets the classic carbon fiber look. They're glossy but can be sanded for a matte finish.
The information in this 3-D model is provided for reference only.
