    Water-Resistant Aramid-Reinforced SBR Gasket

    for 1 Pipe Size, ANSI Class 150

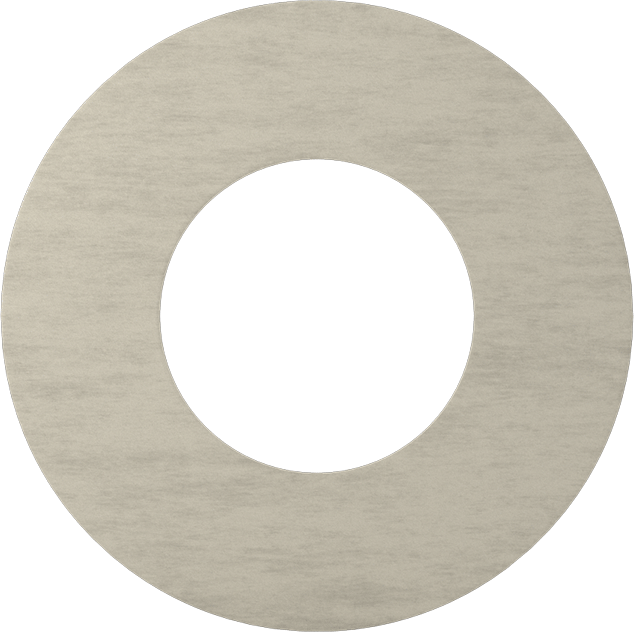

    Image of Product. Front orientation. Water-Resistant Aramid-Reinforced SBR Gasket, for 1 Pipe Size, ANSI Class 150.

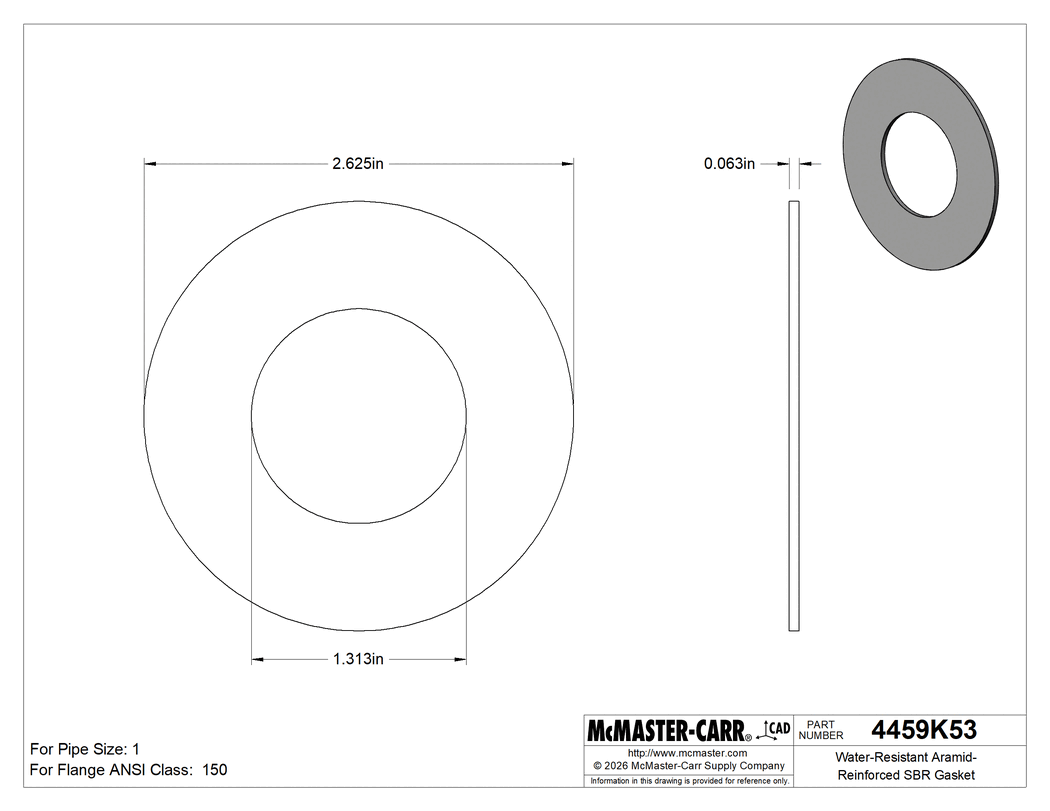

    Technical Drawing of Water-Resistant Aramid-Reinforced SBR Gasket, for 1 Pipe Size, ANSI Class 150.

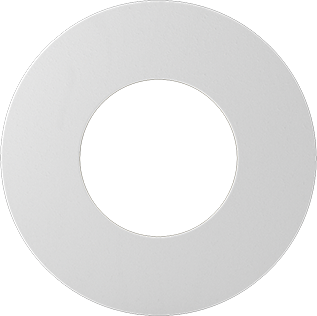

    Image of Product. Back orientation. Water-Resistant Aramid-Reinforced SBR Gasket, for 1 Pipe Size, ANSI Class 150.
    Image of Product. Front orientation. Water-Resistant Aramid-Reinforced SBR Gasket, for 1 Pipe Size, ANSI Class 150.
    Image of ProductInUse. Front orientation. Water-Resistant Aramid-Reinforced SBR Gasket, for 1 Pipe Size, ANSI Class 150.
    Image of Product. Side1 orientation. Contains SizingReference. Water-Resistant Aramid-Reinforced SBR Gasket, for 1 Pipe Size, ANSI Class 150.
    2-D PDF
    00000 each
    4459K53
    In stock
    4459K53
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Backing Type

    Plain

    For Flange Standard

    ANSI

    For Flange ANSI Class

    150

    Thickness

    1/16"

    For Pipe Size

    1

    ID

    1 5/16"

    OD

    2 5/8"

    Maximum Pressure

    1,200 psi

    Temperature Range

    -100° F to 400° F

    Hardness

    Not Rated

    Color

    White

    Material

    Aramid-Reinforced SBR

    Performance

    Water Resistant

    Shape

    Ring

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    401693.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Aramid-reinforced SBR gaskets resist abrasion, water, and inert gases. Also known as ring gaskets, use these gaskets with raised-surface pipe flanges; they fit the surface inside the bolt holes and do not interfere with the bolt connection. All gasket specifications are sized to meet ANSI standards.

    For ANSI Class 150—Gaskets for ANSI Class 150 flanges are compatible with low-pressure pipe flanges.
