    High-Pressure Socket-Connect Steel Unthreaded Fitting

    90 Degree Elbow Connector, 2 Pipe Size

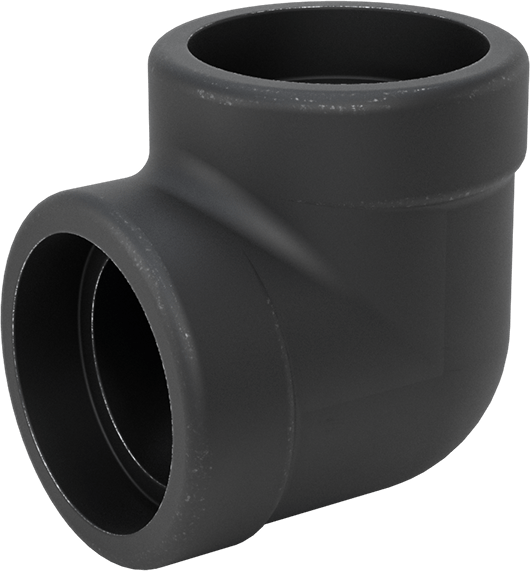

    Image of Product. Front orientation. High-Pressure Socket-Connect Steel Unthreaded Fitting, 90 Degree Elbow Connector, 2 Pipe Size.

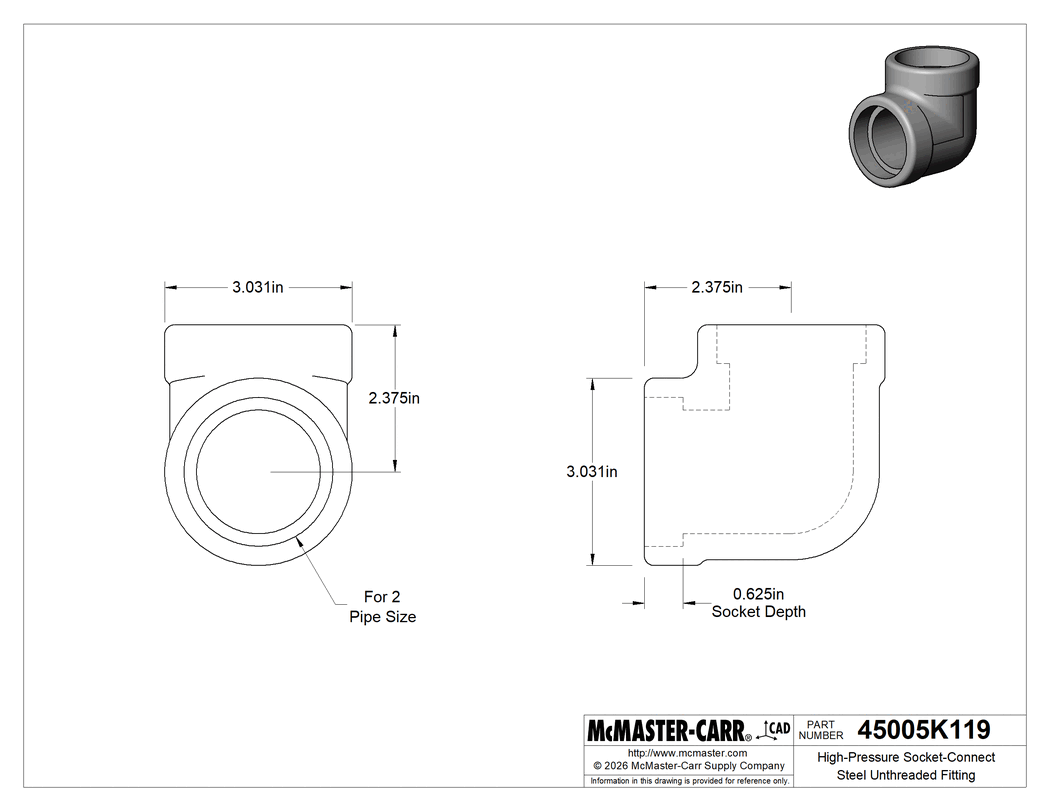

    Technical Drawing of High-Pressure Socket-Connect Steel Unthreaded Fitting, 90 Degree Elbow Connector, 2 Pipe Size.

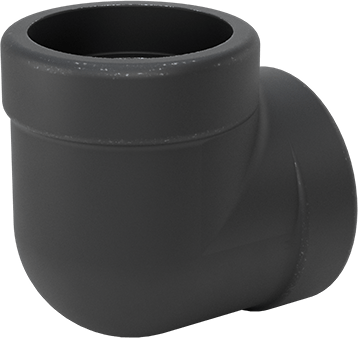

    Image of Product. Back orientation. High-Pressure Socket-Connect Steel Unthreaded Fitting, 90 Degree Elbow Connector, 2 Pipe Size.
    Image of Product. Side1 orientation. Contains SizingReference. High-Pressure Socket-Connect Steel Unthreaded Fitting, 90 Degree Elbow Connector, 2 Pipe Size.
    2-D PDF
    000000 each
    45005K119
    In stock
    45005K119
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Pressure Rating

    High Pressure

    Shape

    90° Elbow

    Fitting Type

    Connector

    Fitting Connection

    Socket Connect

    Pipe Size

    2

    Pressure Class

    3000

    Material

    Steel

    Maximum Pressure @ Temperature

    3,000 psi @ 72° F

    Maximum Steam Pressure @ Temperature

    Not Rated

    Connects To

    Pipe

    Fabrication

    Forged

    For Flange

    Class

    300, 600

    Material

    Steel

    For Pipe Material

    Steel

    For Pipe Schedule

    80

    For Use With

    Air, Natural Gas, Oil, Steam, Water

    Socket Depth

    0.625"

    Specifications Met

    ASME B16.11, ASTM A105

    Threading

    Unthreaded

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    730799.4000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Socket-connect fittings are easier to weld than butt-weld fittings because the fitting doesn’t need to align perfectly to the pipe. Slide pipe into the socket and weld for a strong, permanent connection. Fittings have heavy duty construction that stands up to high-pressure applications. They are for use in noncorrosive environments.

    The information in this 3-D model is provided for reference only.
